Audio & Video (Service Information): Speaker: Removal: Subwoofer

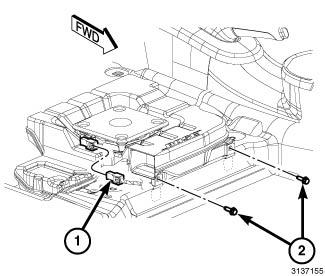

Fig 1: Subwoofer Assembly Connector & Front Retainers

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect the negative battery cable.
2. Remove the passenger side front seat. Refer to SEAT, FRONT, REMOVAL .
3. Disconnect the subwoofer assembly electrical connector (1).
4. Remove the front subwoofer retainers (2).

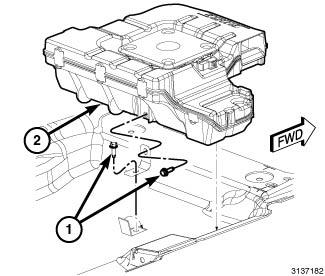

   Fig 2: Subwoofer Assembly & Rear Retainers

   Courtesy of CHRYSLER GROUP, LLC
5. Remove the rear subwoofer retainers (1).
6. Remove the subwoofer assembly (2) from the vehicle.
