Sunroof Switch - Removal

REMOVAL

WARNING: To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.





1. Disconnect and isolate the negative battery cable.

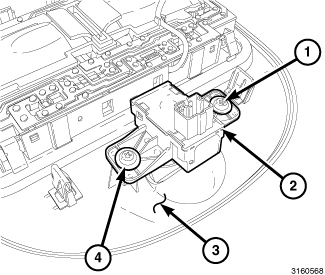

2. Remove the sunroof switch (2) and bezel (3) from the headliner as a unit and place it on a suitable work surface. Be certain to take the proper precautions to protect the switch and bezel from cosmetic damage. Overhead Console - Removal.
3. Remove the two screws (1 and 4) that secure the switch mounting tabs to the back of the bezel.
4. Remove the switch from the bezel.
