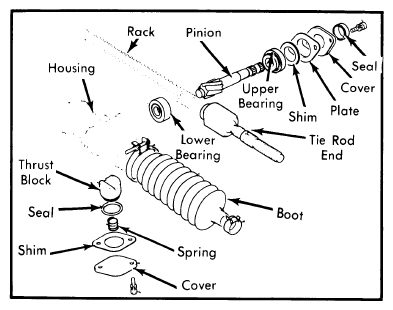

Steering Gear: Installation
- Set wheels in straight-ahead position, then connect drive pinion to steering column and tighten pinch bolt to 19 ft. lbs. (2.6 mkg). Remount steering gear to body. Connect tie rods to steering knuckle and tighten to 25 ft. lbs. (3.5 mkg).
- If steering gear has been disassembled, perform pinion and rack adjustments, and replace front wheels. Lower vehicle to ground and turn steering wheel fully to the right. Raise vehicle on left side and loosen clamp on left boot. Fill steering gear with 4.4 ounces lithium-base grease containing molybdenum disulphide.
