Cylinder Head: Installation

  1. Thoroughly clean all gasket surfaces on cylinder head and block. Use new gasket with word "ALTO" facing up when installing head.
  2. Tighten bolts and nuts in sequence shown in Fig 1  in two steps; first to about 29 ft.lbs. (4.0 mkg), and then to final torque of 69 ft.lbs. (9.5 mkg). Complete installation in reverse order of removal. See  Timing Belt Replacement  .

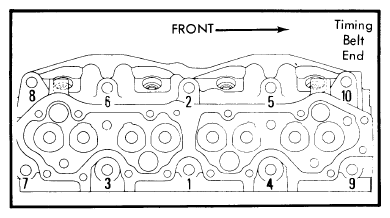

    Fig 1: Cylinder Head Tightening Sequence
    G09359734Courtesy of NOT AVAILABLE
