Rear Brake Shoes: Installation

To install, reverse removal procedure and note the following: Longer return spring is upper return spring. Install brake shoes with ends correctly positioned in wheel cylinder pistons.

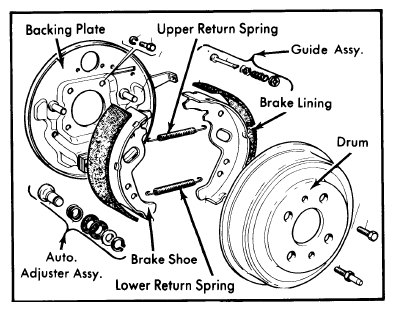

Fig 1: Strada Rear Drum Brake Assembly
G09360296Courtesy of NOT AVAILABLE
