Wiring Diagrams - 128 Sedan & Wagon: Wiring Diagram

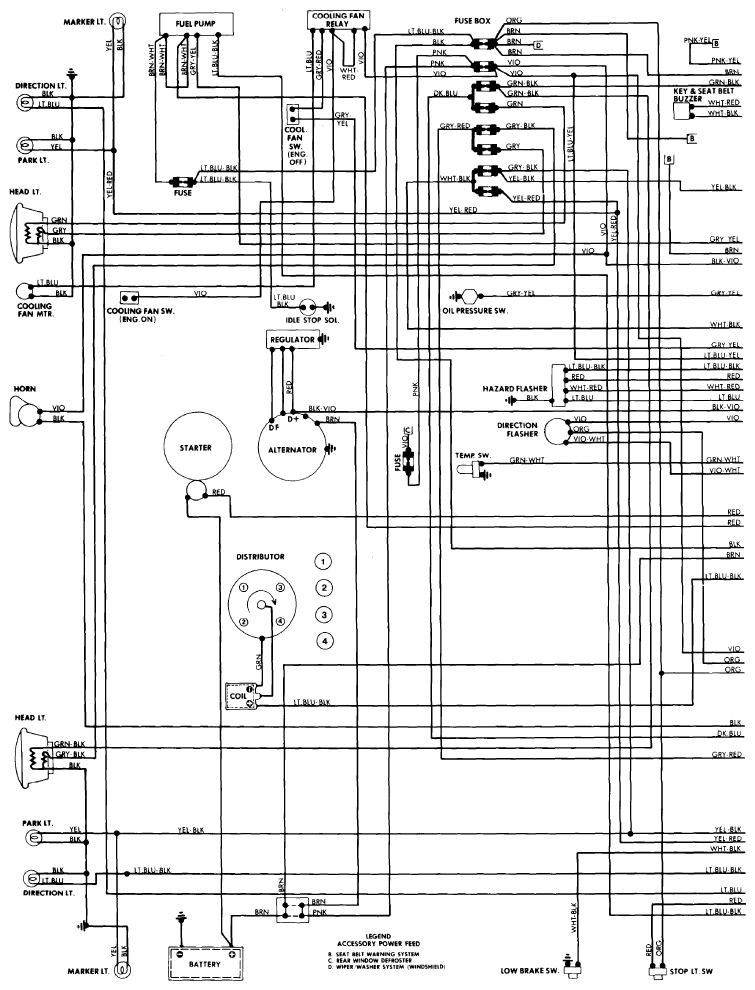

Fig 1: Wiring Diagram - 128 Sedan & Station Wagon (1 of 2)

Courtesy of NOT AVAILABLE

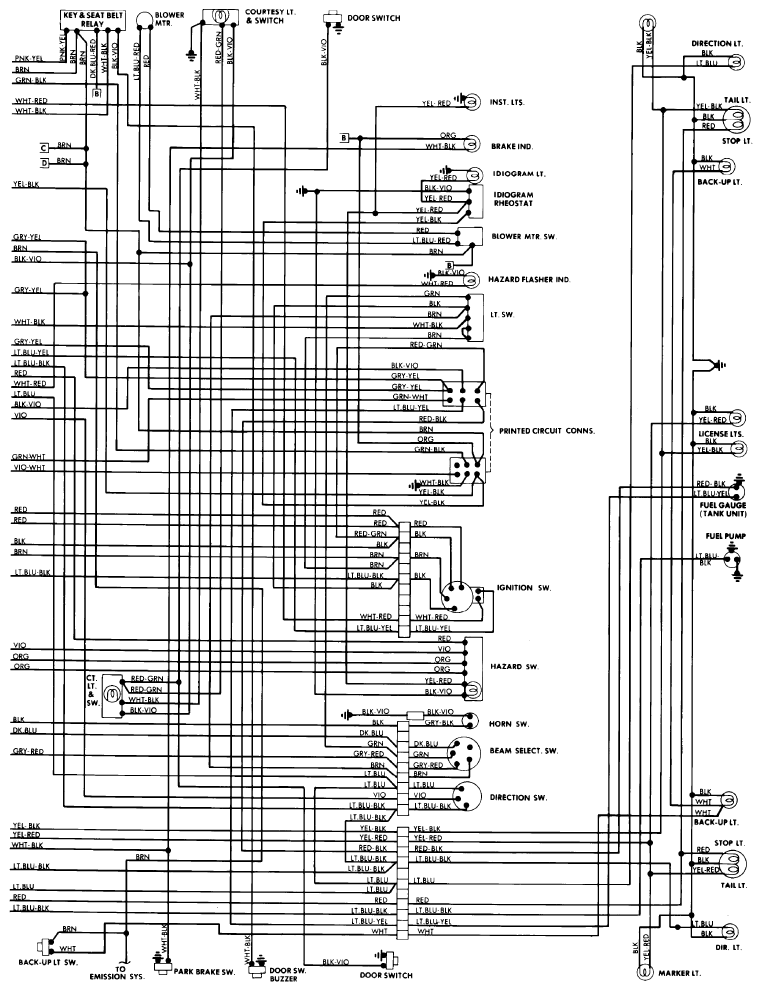

Fig 2: Wiring Diagram - 128 Sedan & Station Wagon (2 of 2)

Courtesy of NOT AVAILABLE
