Starter Motor Noisy

Worn armature shaft bushing. Pinion gear disengagement exceptionally late (worn or defective overrunning clutch).

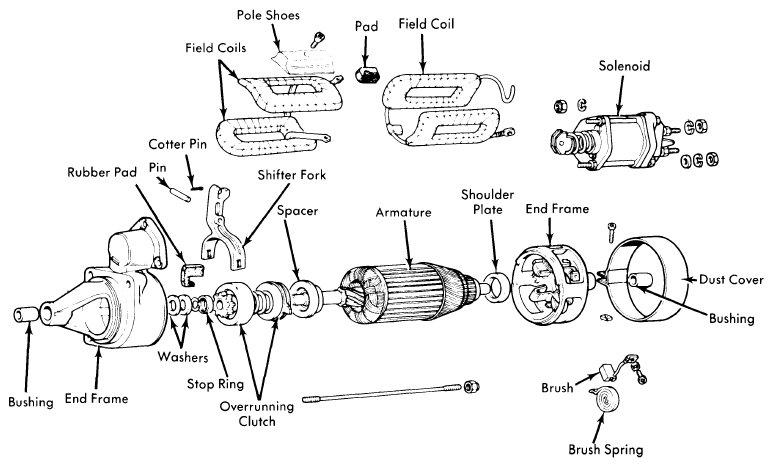

Fig 1: Disassembled View of Fiat Starter Motor

Courtesy of NOT AVAILABLE
