Disc Brakes & Drum Brakes: Overhaul

NOTE: Use illustrations for exploded views of brake components. See Fig 1 and Fig 2 .

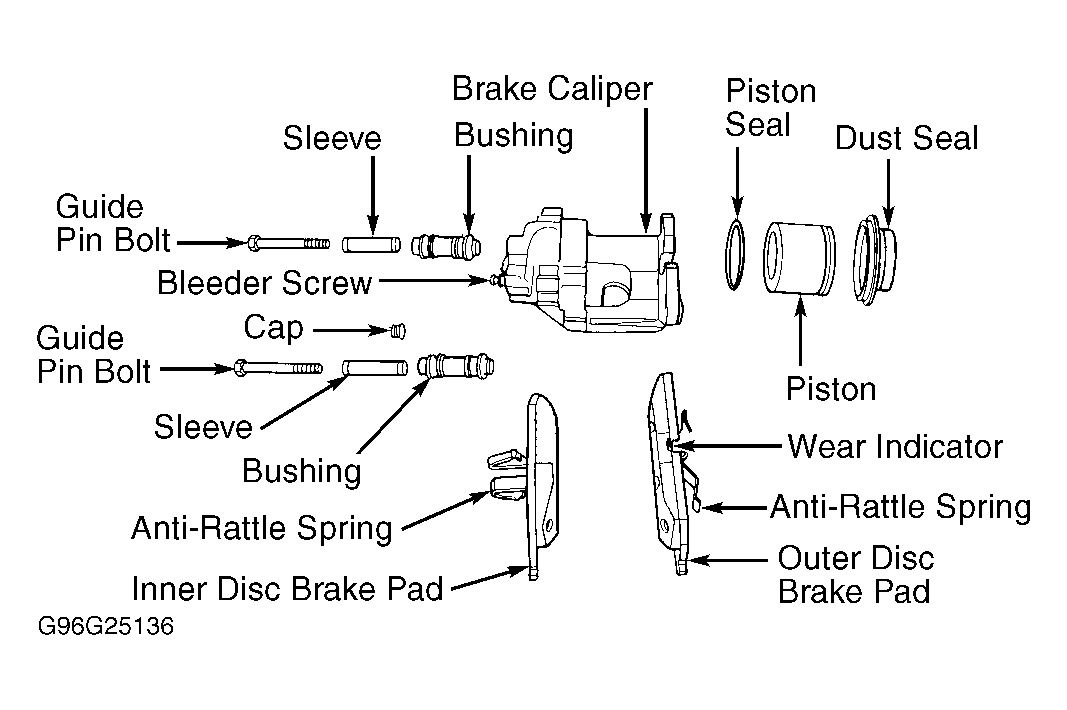

Fig 1: Exploded View Of Typical Brake Caliper

Courtesy of CHRYSLER CORP.

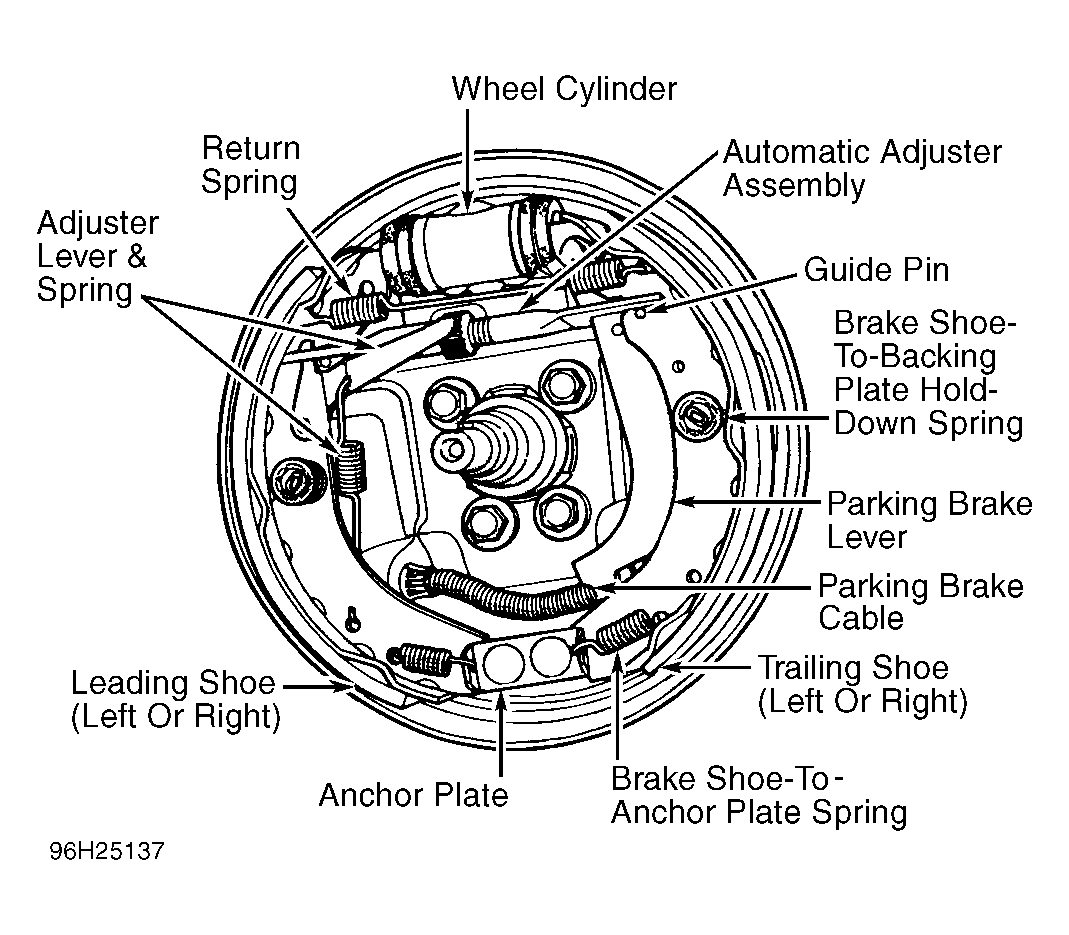

Fig 2: View Of Rear Drum Brake Assembly

Courtesy of CHRYSLER CORP.
