41TE & 41AE & F4AC1 (Late) Automatic Transmission - Hydraulic Diagrams

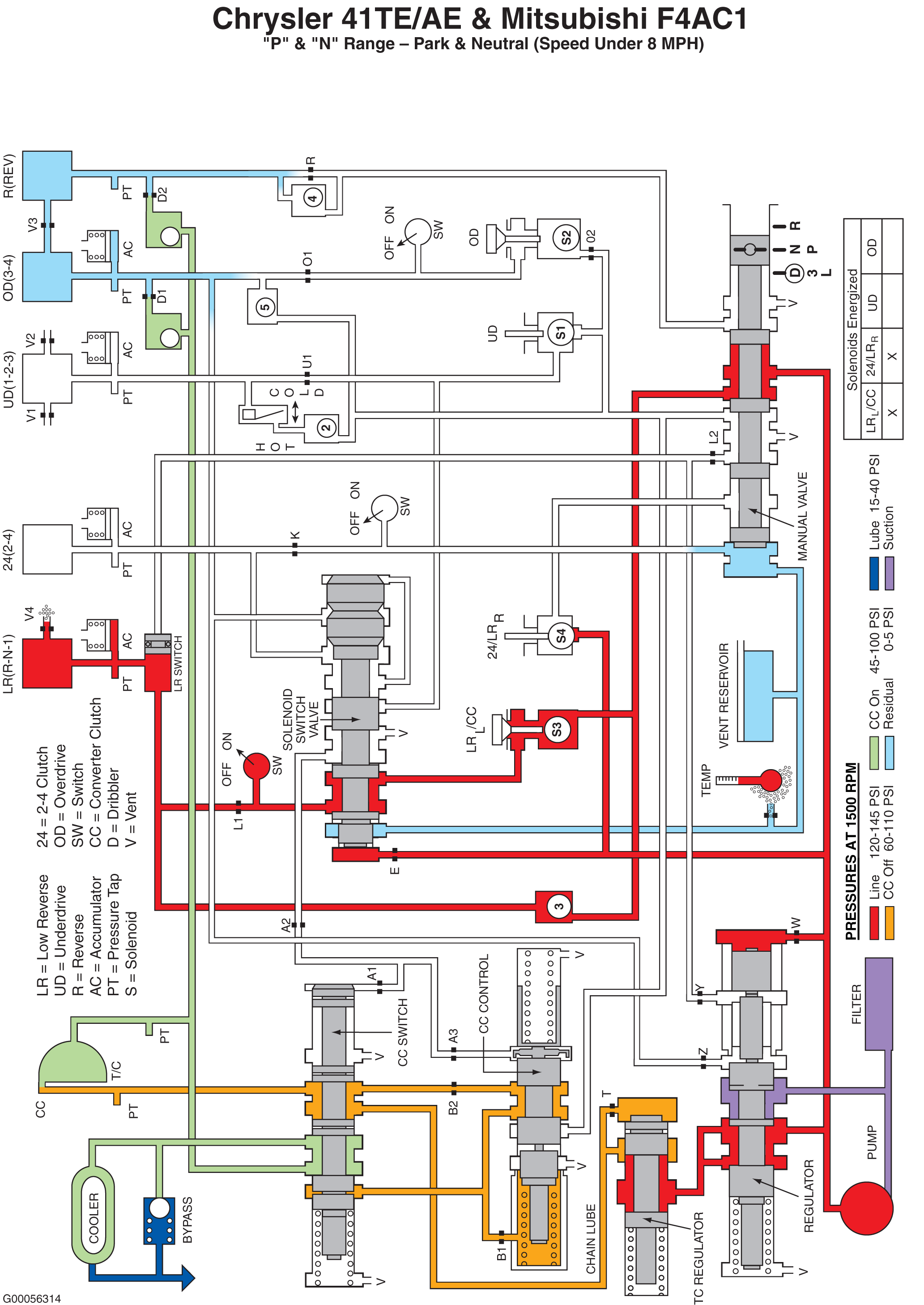

Fig 1: "P"& "N" Range - Park & Neutral (Speed Under 8 MPH)

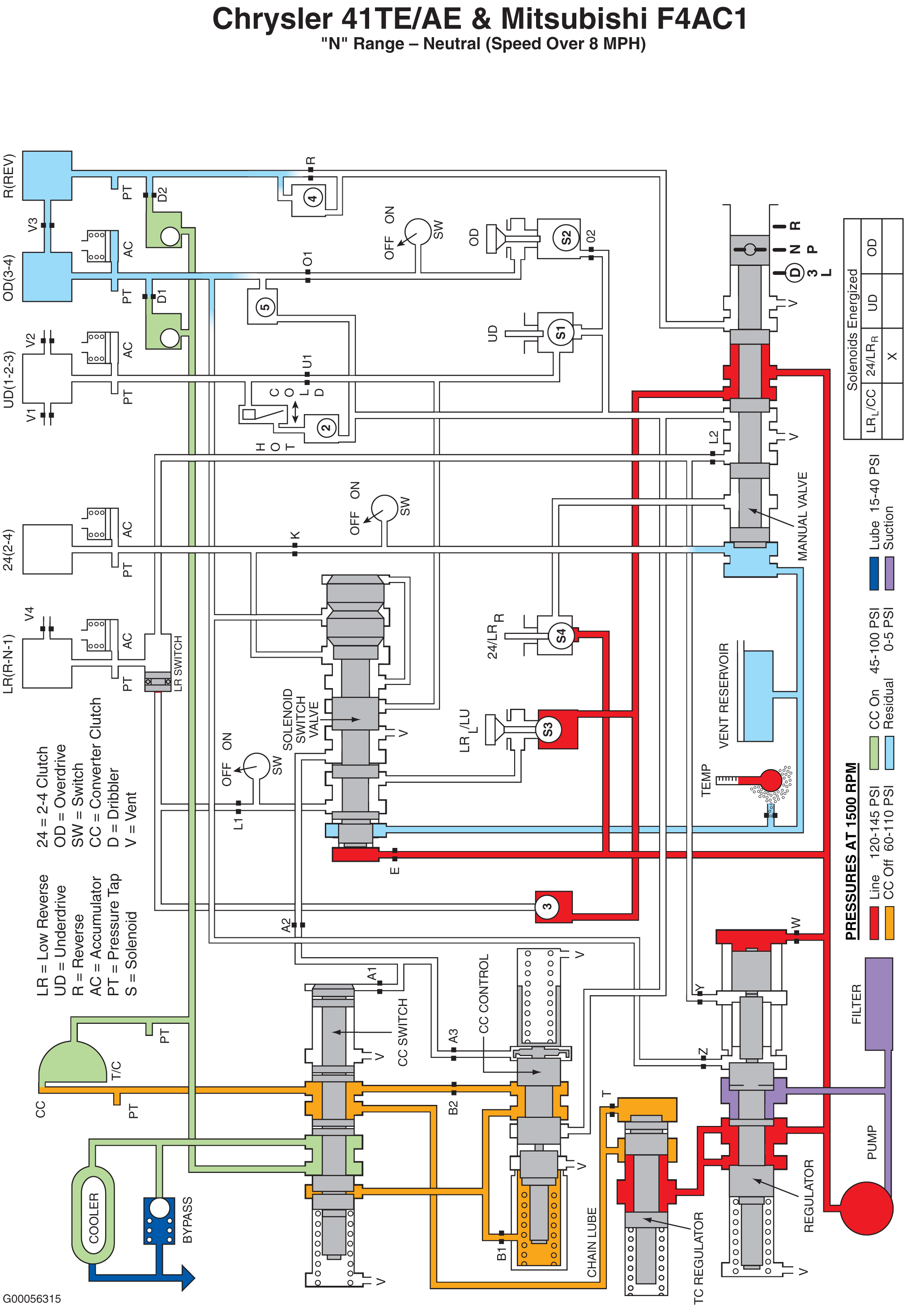

Fig 2: "N" Range - Neutral (Speed Over 8 MPH)

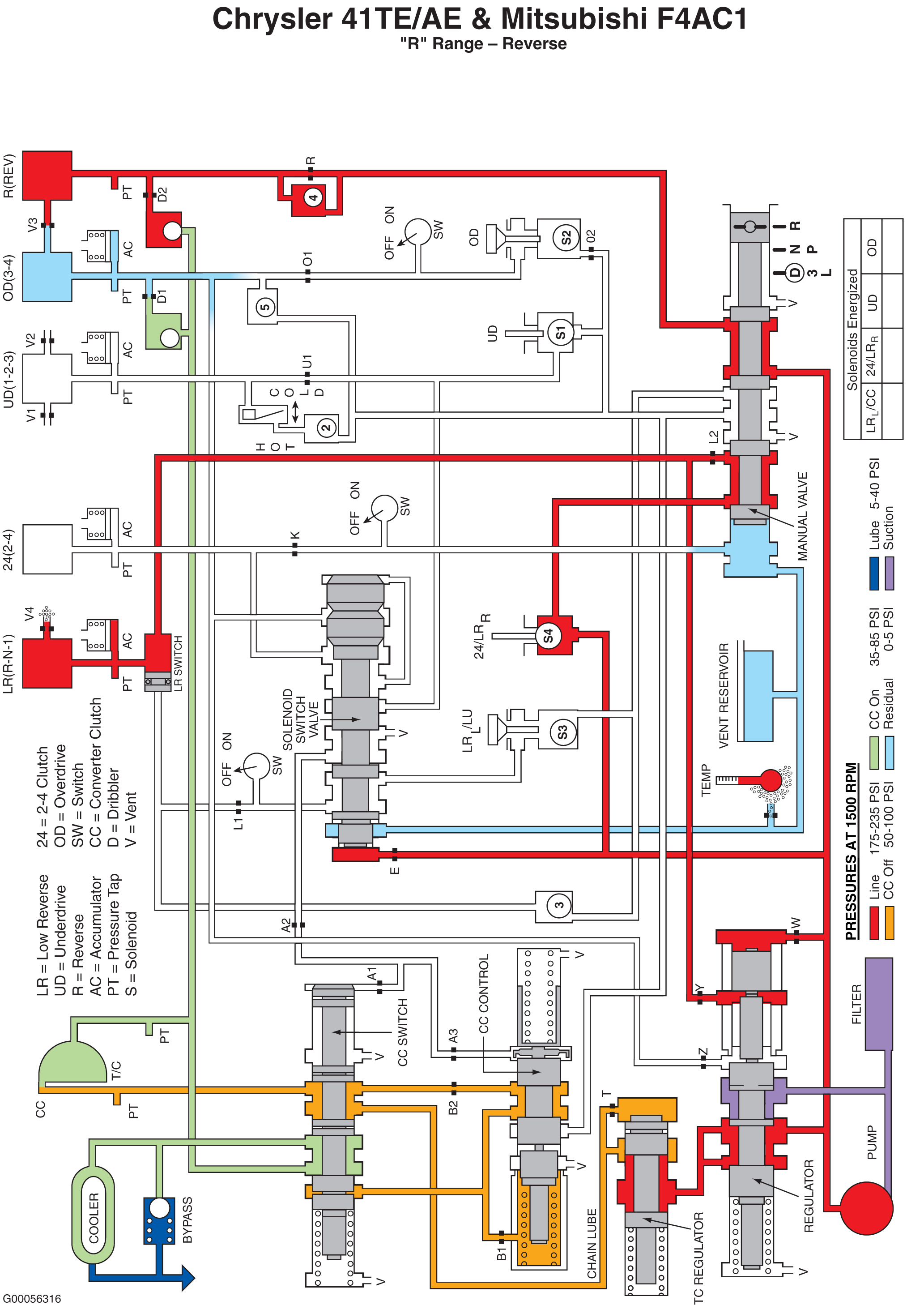

Fig 3: "R" Range - Reverse

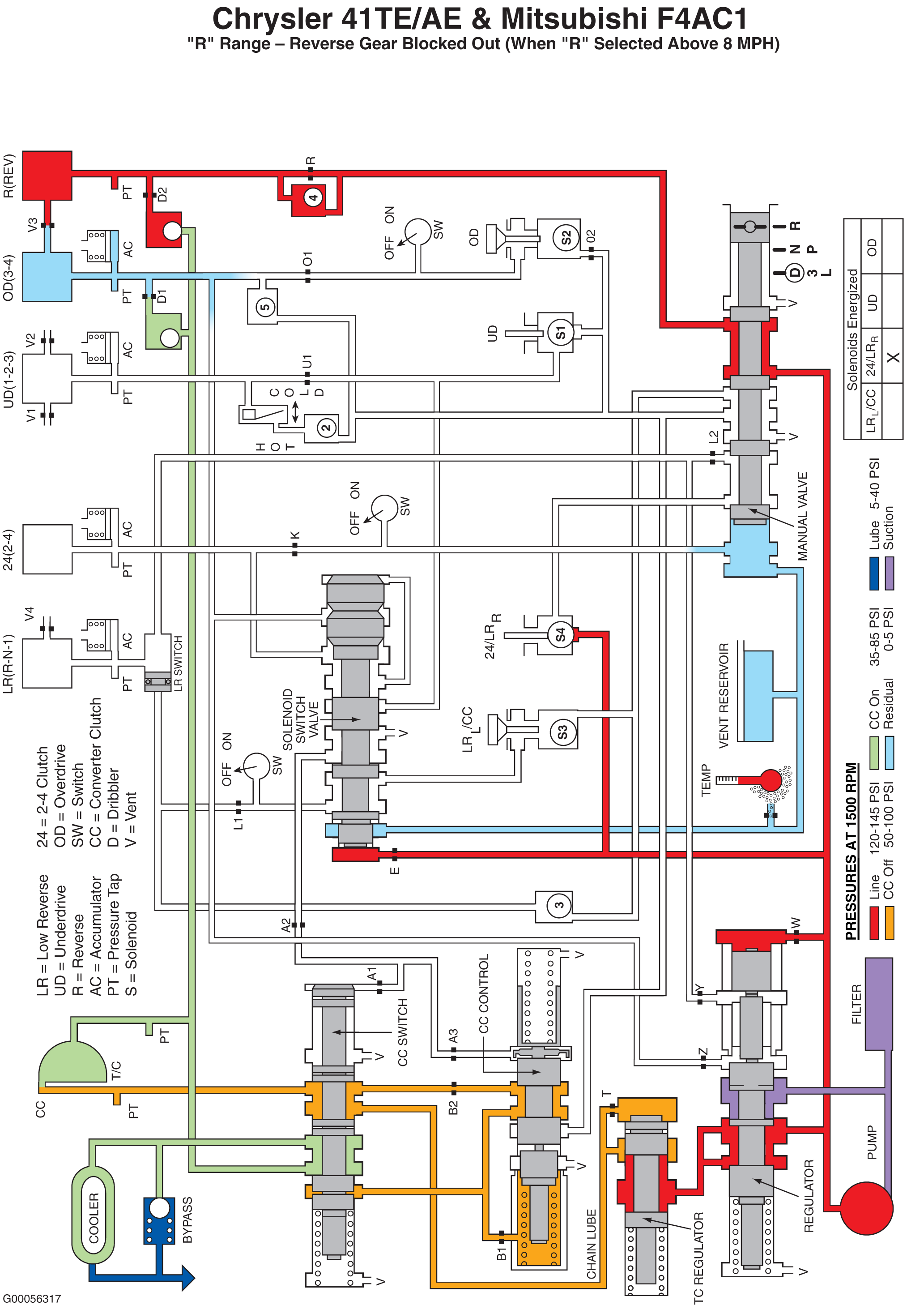

Fig 4: "R" Range - Reverse Gear Blocked Out (When "R" Selected Above 8 MPH)

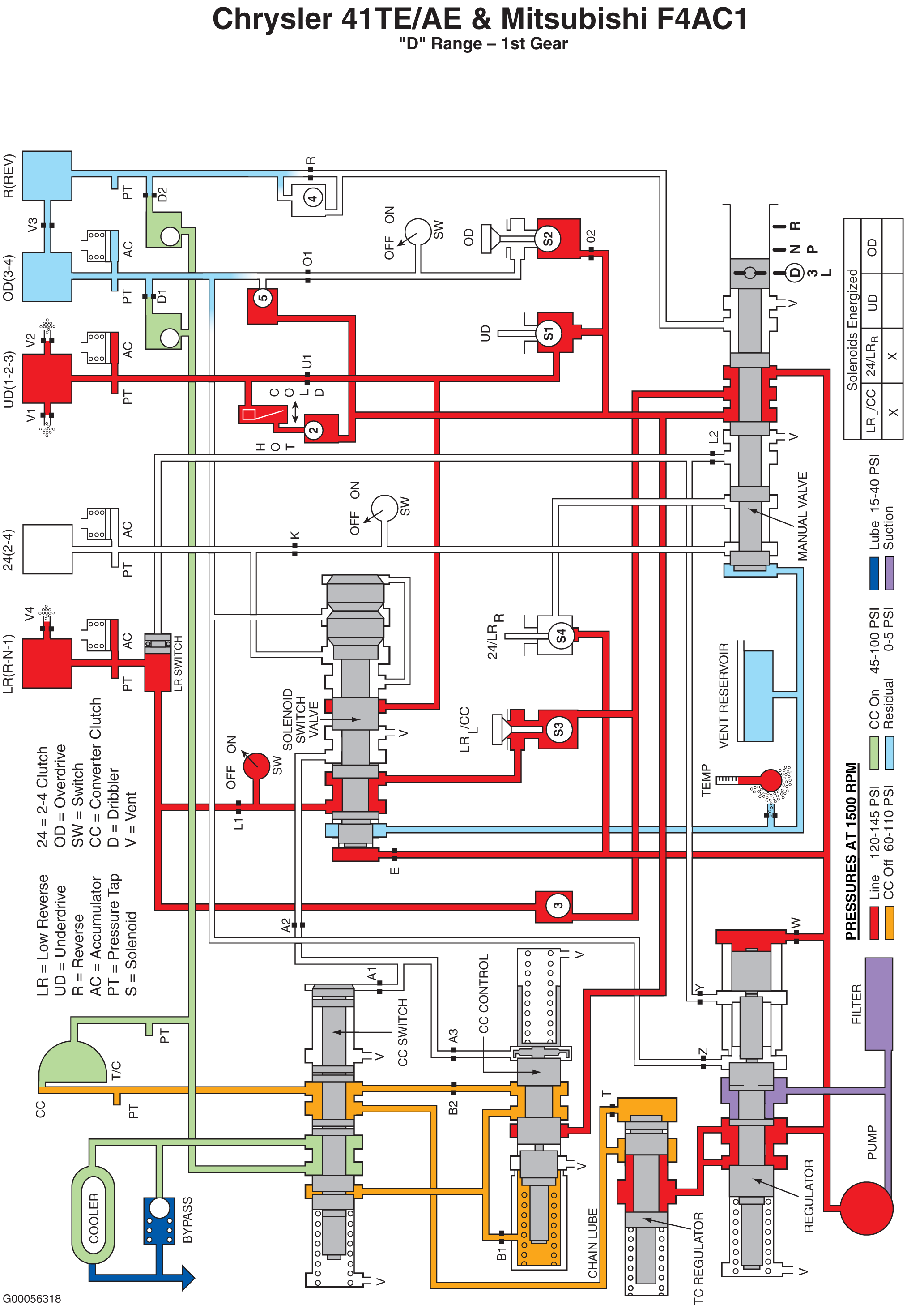

Fig 5: "D" Range - 1st Gear

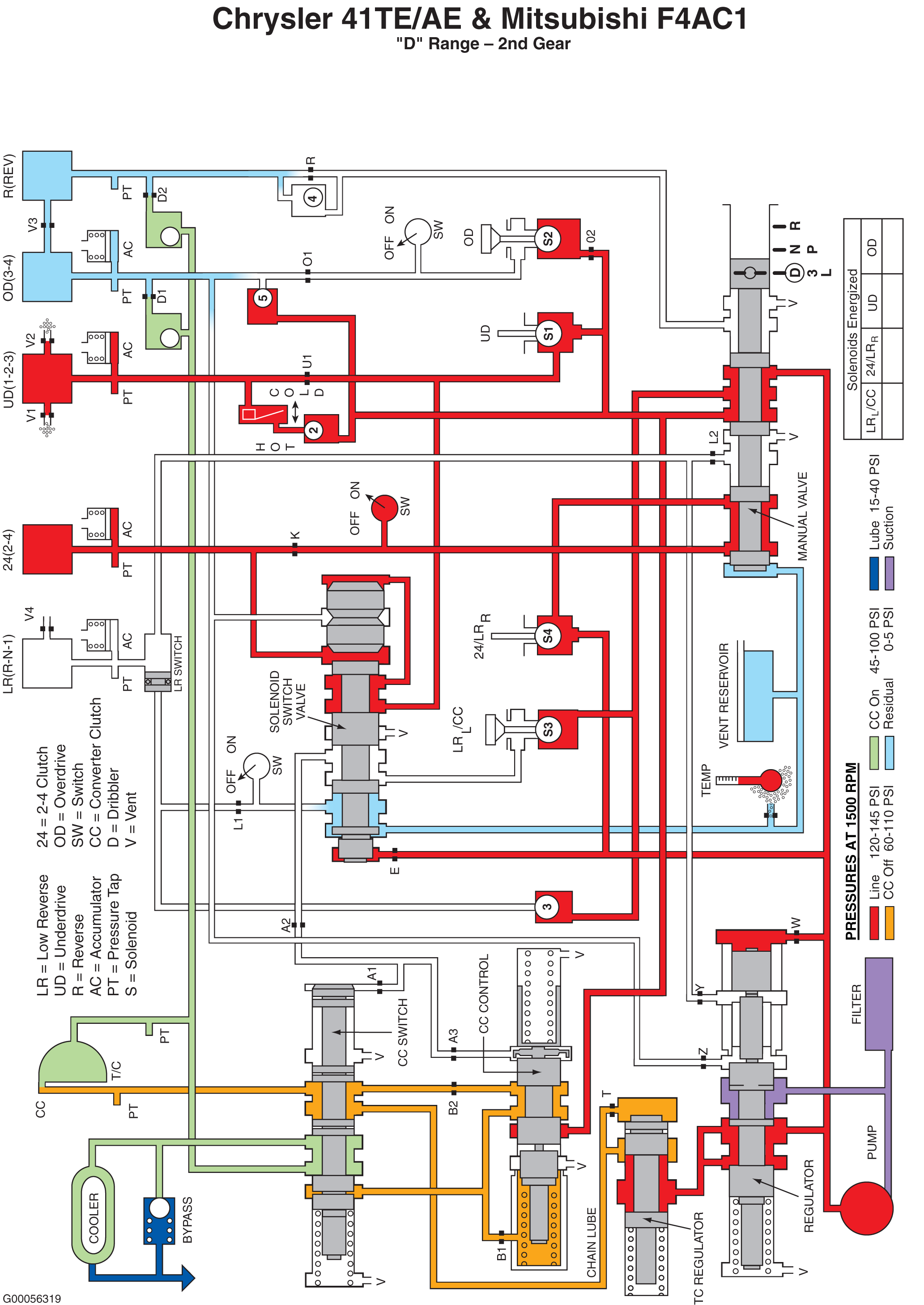

Fig 6: "D" Range - 2nd Gear

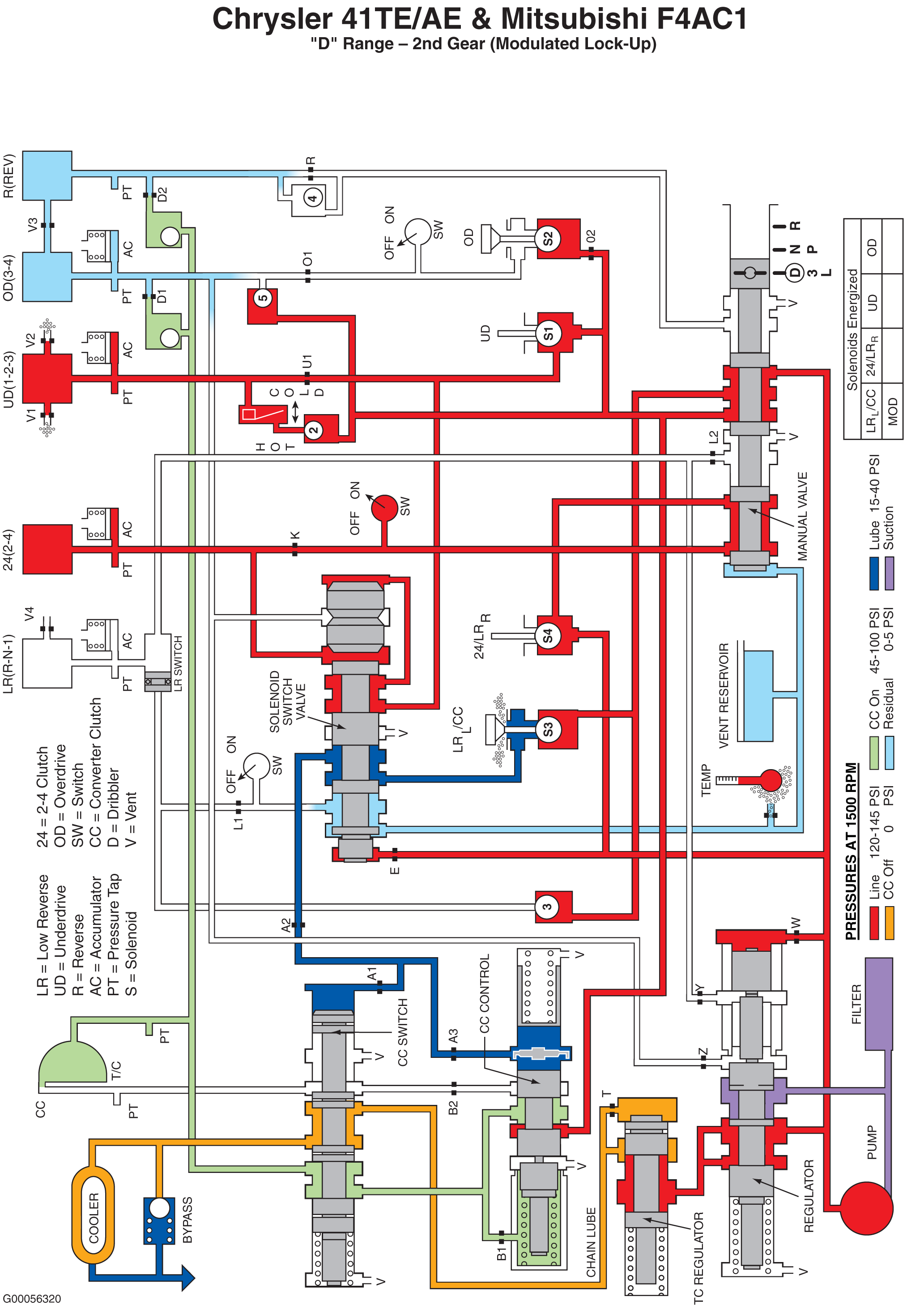

Fig 7: "D" Range - 2nd Gear (Modulated Lock-Up)

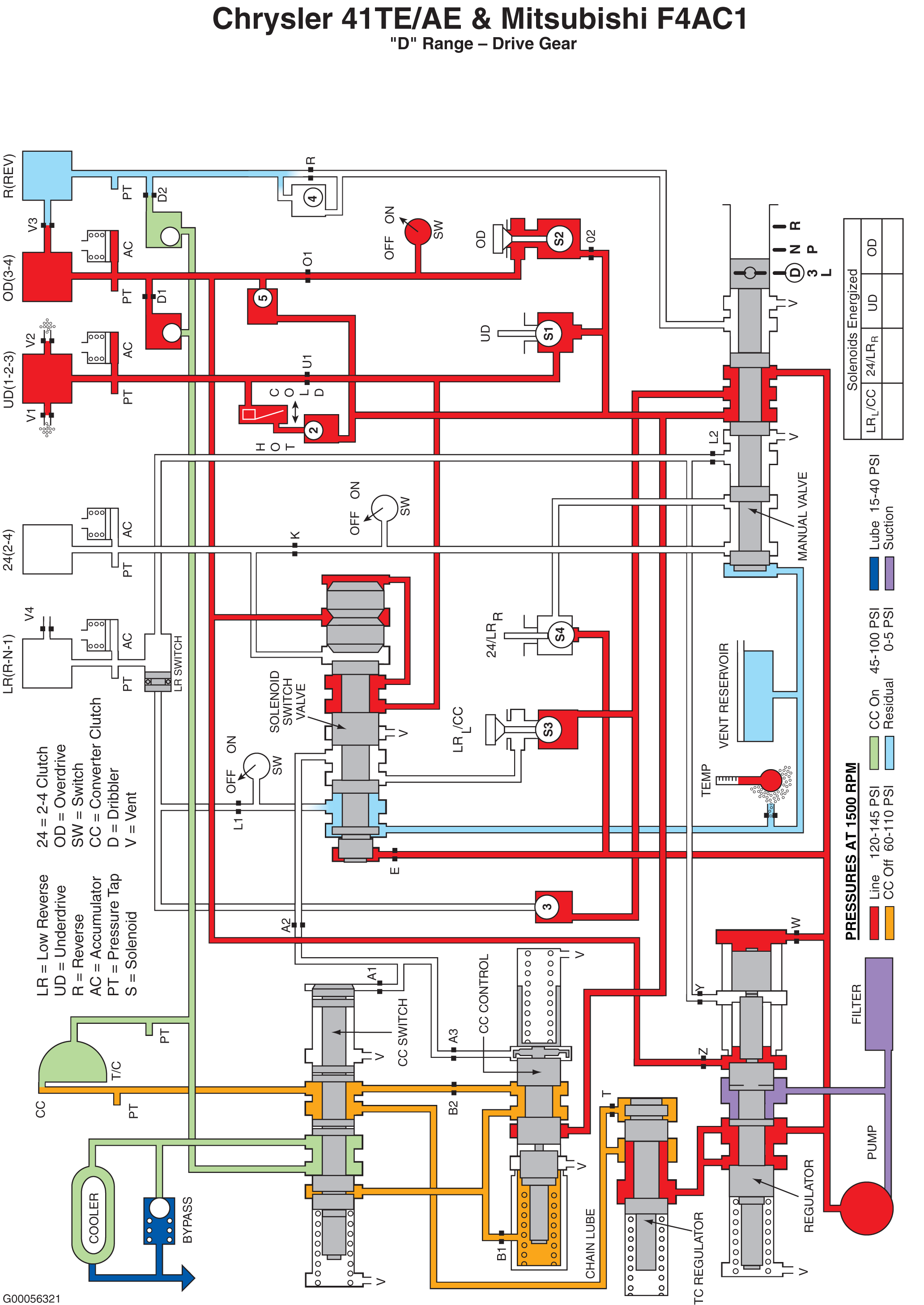

Fig 8: "D" Range - Drive Gear

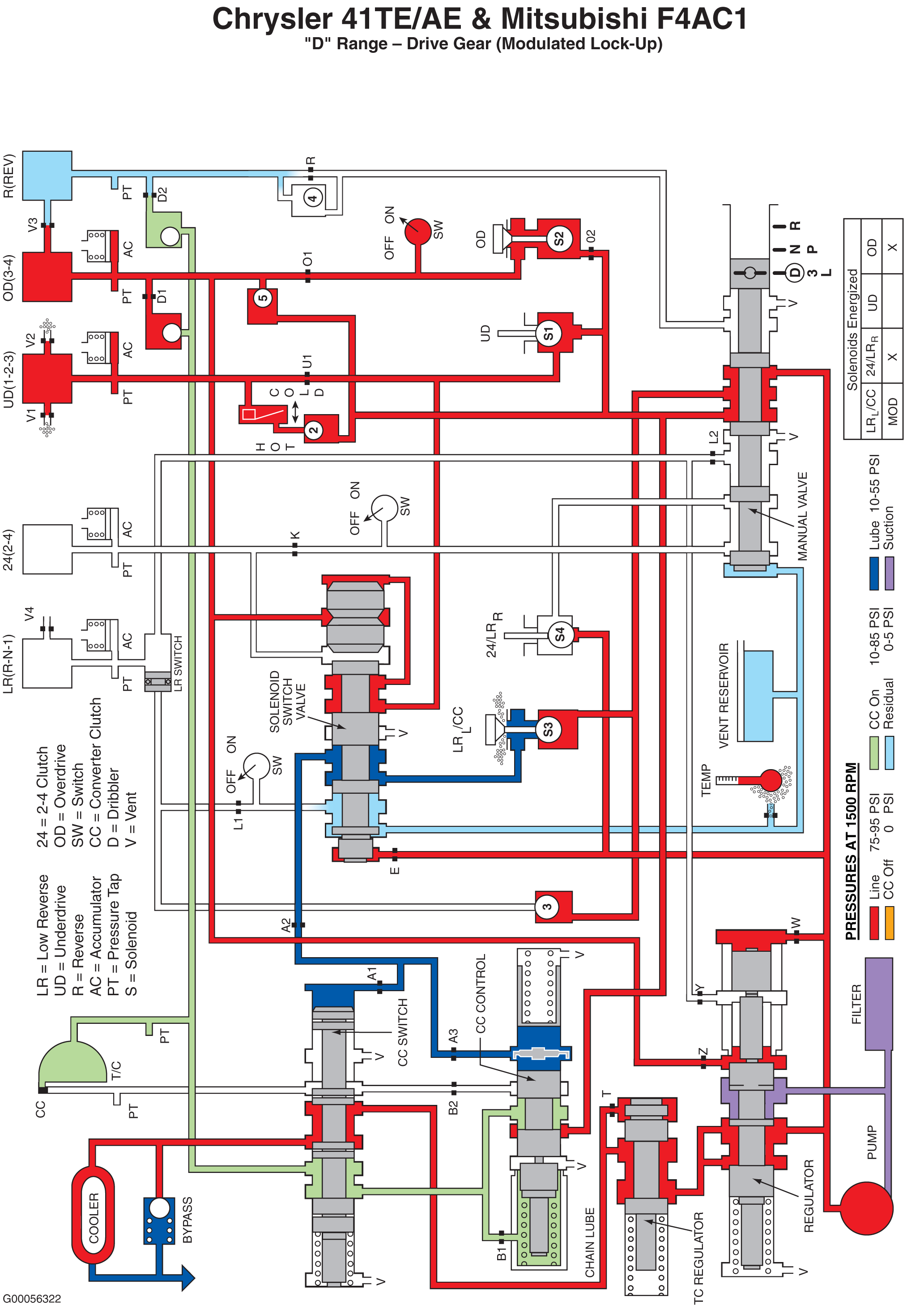

Fig 9: "D" Range - Drive Gear (Modulated Lock-Up)

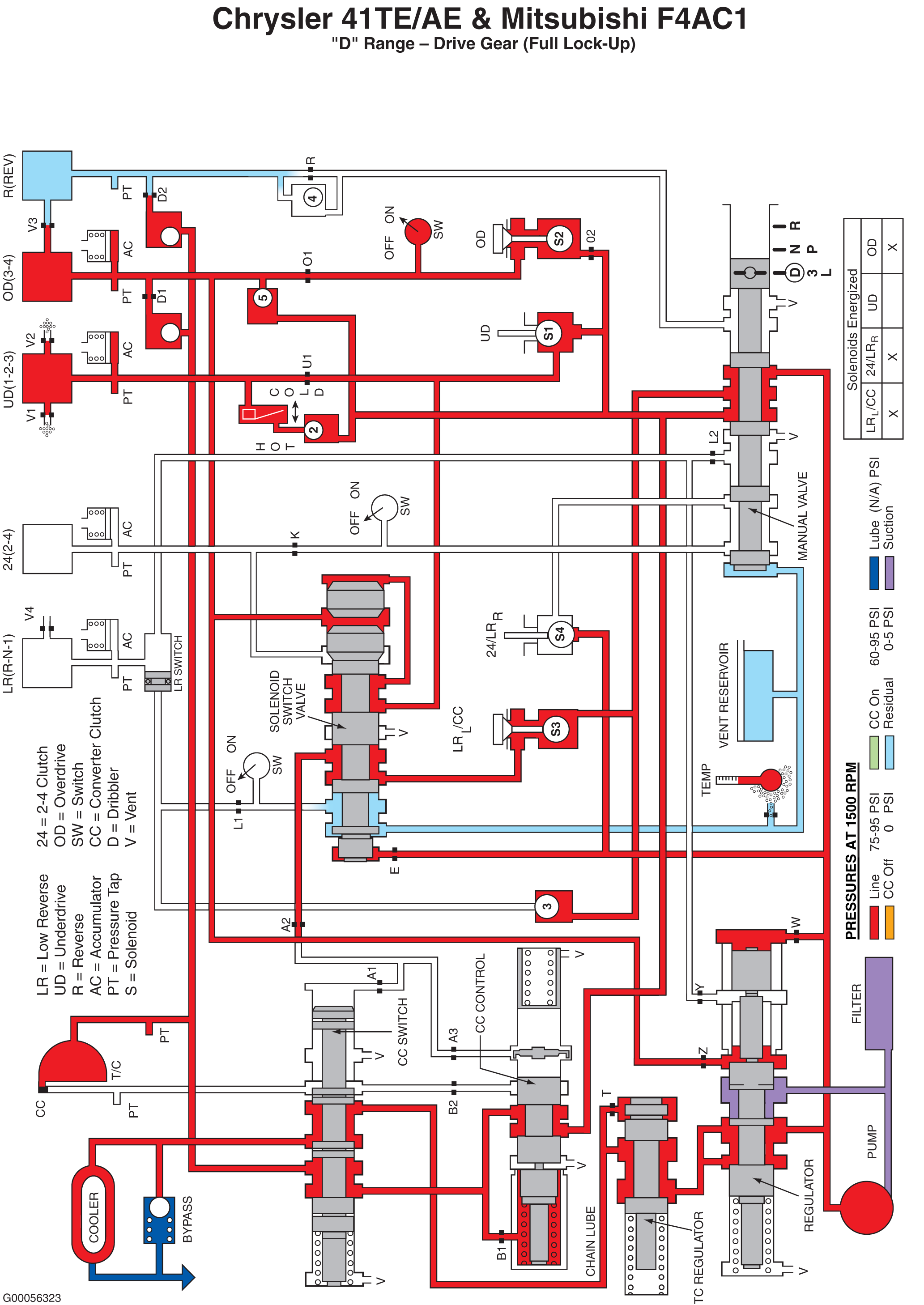

Fig 10: "D" Range - Drive Gear (Full Lock-Up)

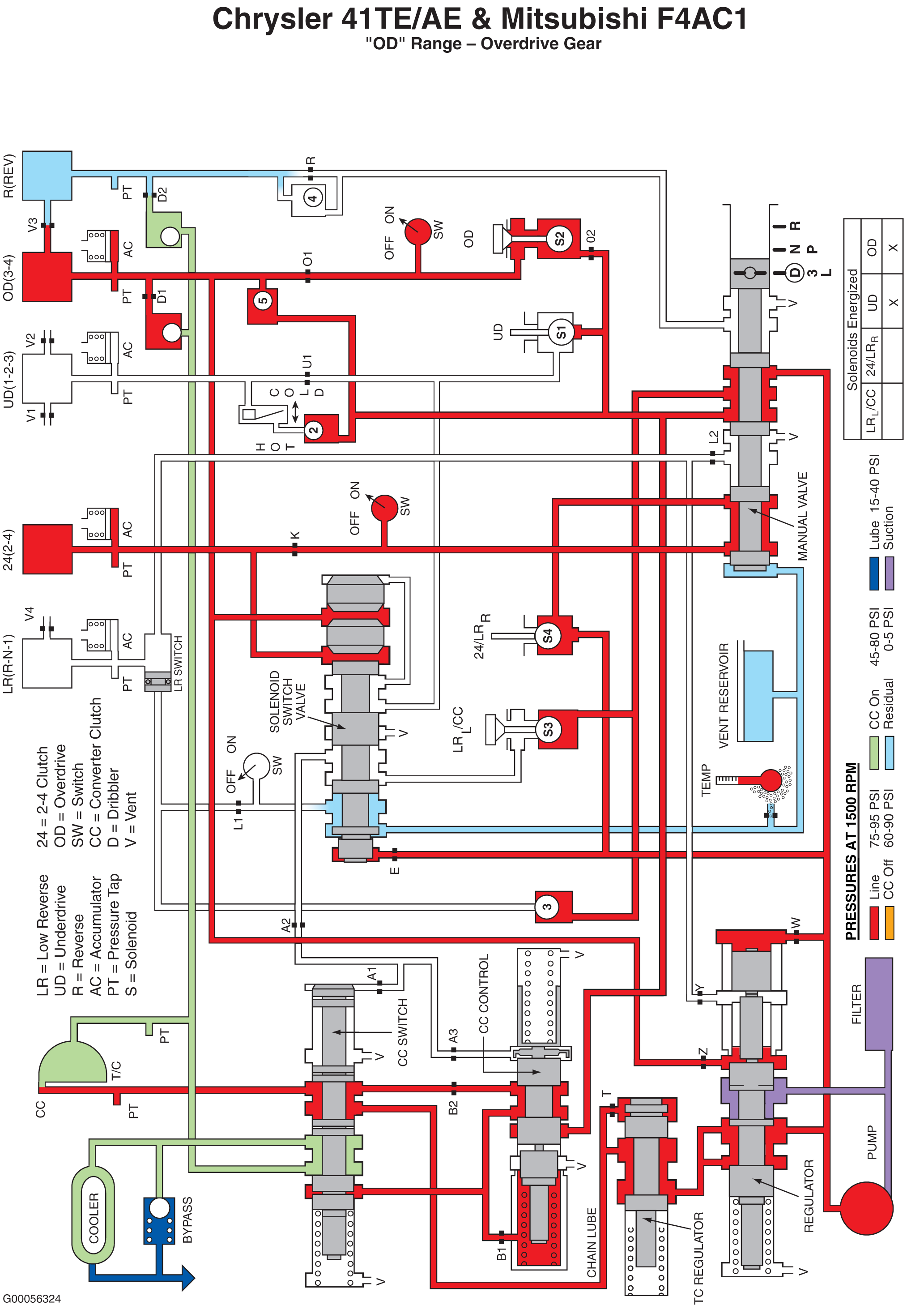

Fig 11: "OD" Range - Overdrive Gear

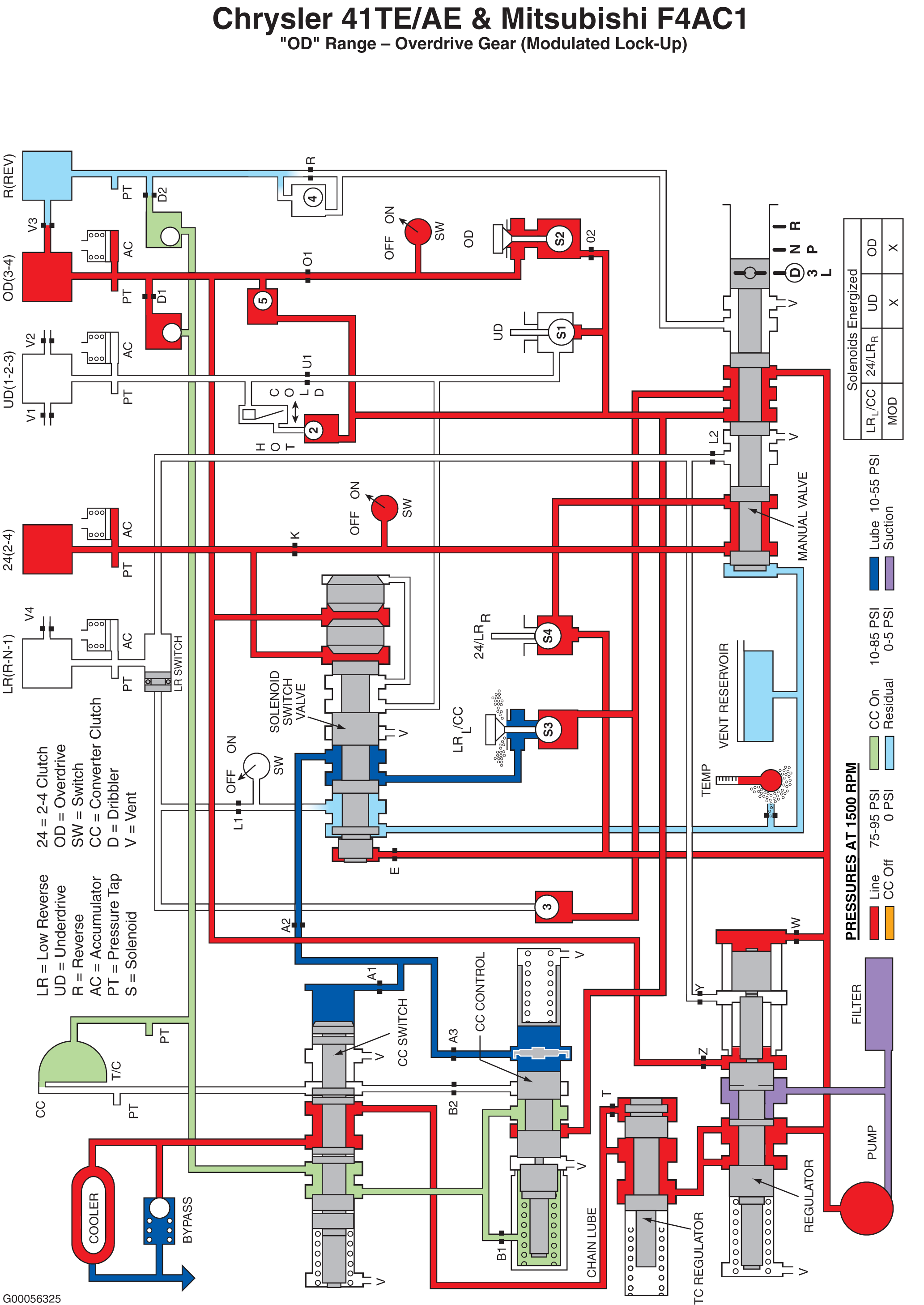

Fig 12: "OD" Range - Overdrive Gear (Modulated Lock-Up)

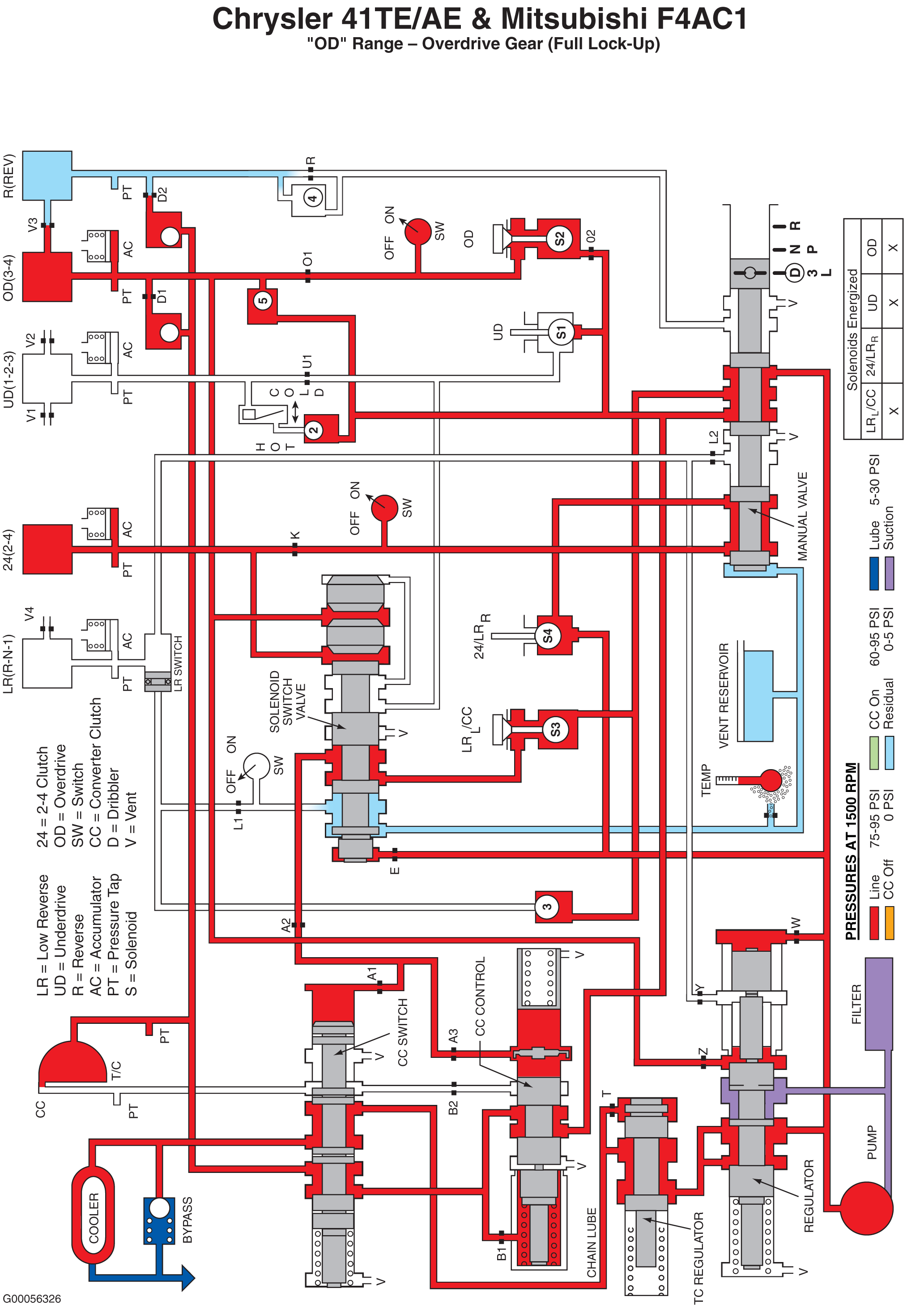

Fig 13: "OD" Range - Overdrive Gear (Full Lock-Up)
