Removal & Installation (Hazard Warning Light Switch, Rear Defogger Switch & Rear Wiper/Washer Switch)

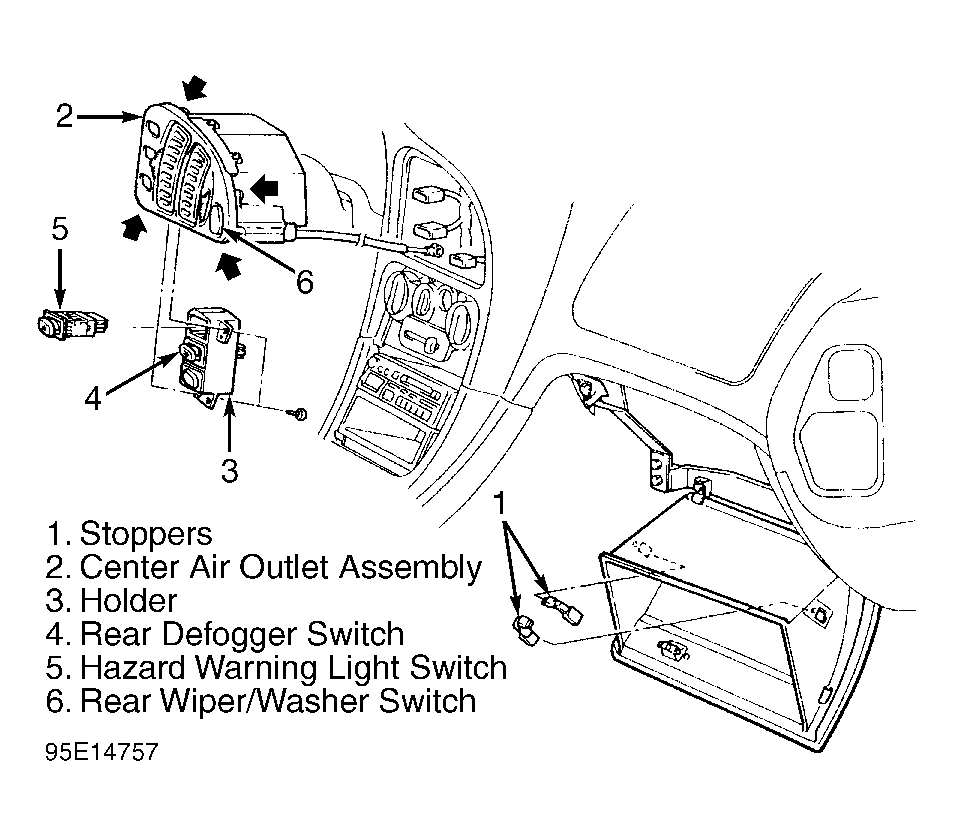

Remove stoppers from glove box. See Figure . Remove center air outlet assembly. Remove rear wiper/washer switch. Remove holder from center air outlet assembly. Remove hazard warning light switch and rear defogger switch.
To install, reverse removal procedure. When installing center air outlet assembly, turn cool air by-pass lever fully downward. Pull cool air by-pass damper lever on heater unit fully forward, then attach cable to pin on lever. Push outer cable upward into dash until all slack is gone, then secure cable with clip.
