Passenger Air Bag Module: Removal
WARNING: This page is about a different car, the 1995 Mitsubishi Mirage and 1995 Eagle Summit. However, it is still accessible from the selected car via links, so may be relevant.
- Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS. Turn ignition switch to LOCK position. Disconnect negative battery cable. Shield cable end. Wait at least 60 seconds before servicing.
- Remove glove box from vehicle. Remove two bolts from bottom of passenger inflator module, now accessible through top of glove box opening.
- Press and hold lock lever. Disconnect SDU connectors. Remove SDU mounting bolts and SDU. To install, reverse removal procedure. After servicing, perform SYSTEM OPERATION CHECK.

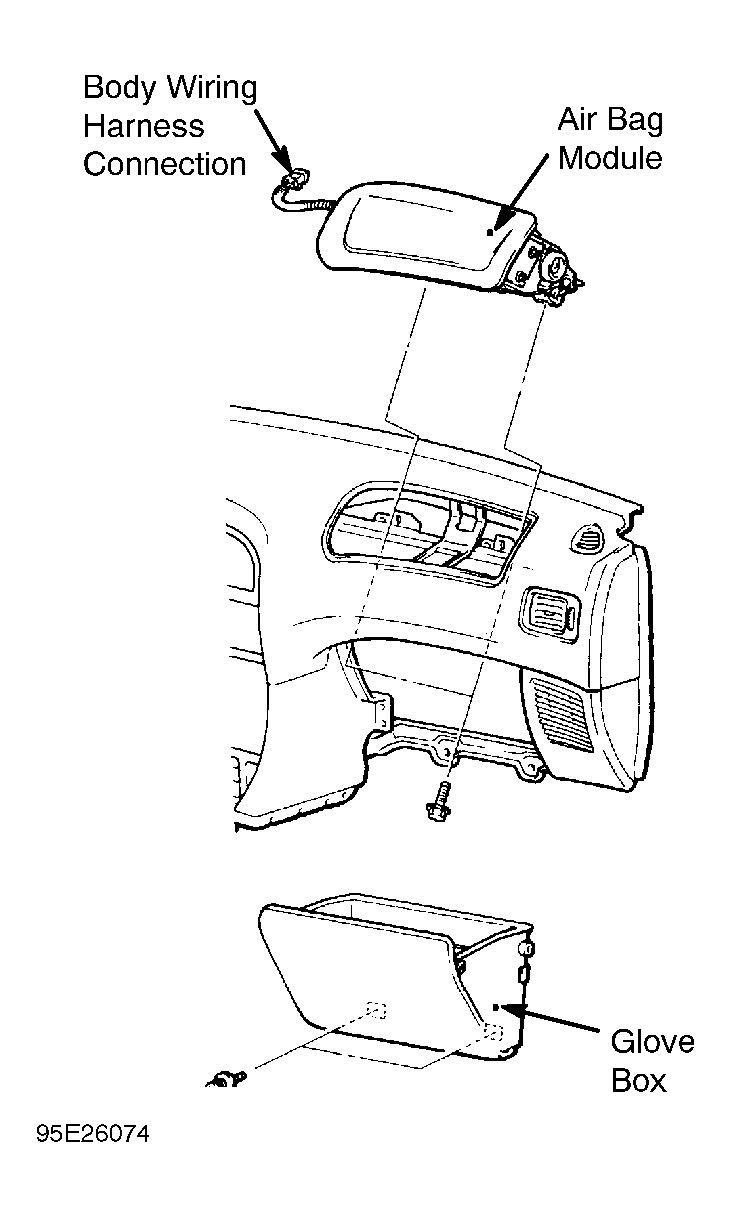

- Unplug electrical connector and remove passenger air bag module. See Fig 1 .
