SRS Diagnostic Unit (SDU)
WARNING: This page is about a different car, the 1995 Mitsubishi Mirage and 1995 Eagle Summit. However, it is still accessible from the selected car via links, so may be relevant.

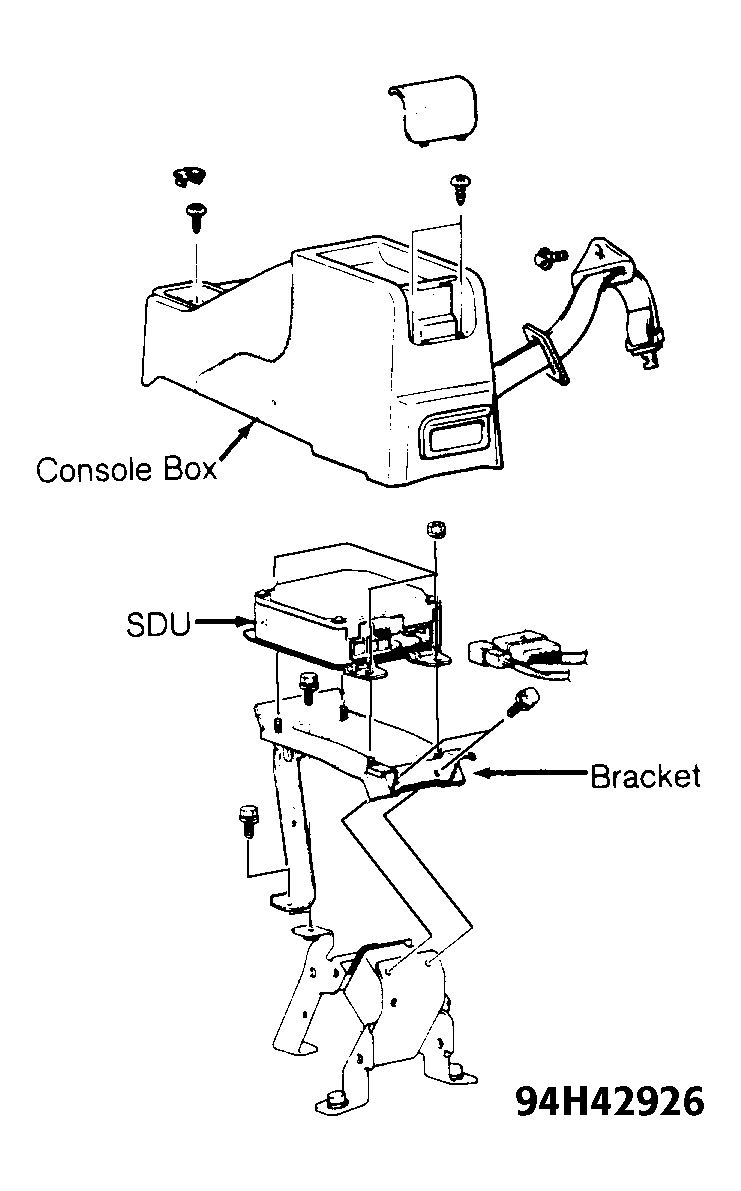

SDU (with integral safing impact sensor and analog "G" sensor) is located under floor console assembly. See Figure
, Fig 1
, and Figure
. If a system fault occurs, SDU memory stores a code.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
