Additional Information

If transaxle is not in fail-safe mode, a maximum of 10 DTCs can be stored. If number of stored DTCs exceeds 10, previously stored DTCs will be erased beginning with oldest DTC.
If transaxle is in fail-safe mode and transaxle remains in 2nd or 3rd gear, a special fail-safe DTC will be stored. Only 3 fail-safe DTCs can be stored.
When in fail-safe mode with transaxle locked in 2nd or 3rd gear, fail-safe mode will be canceled when ignition is turned off. Transaxle will no longer be locked in 2nd or 3rd gear, but fail-safe DTC will be stored in TCU memory.
To identify DTC and items to be checked or adjusted, see DIAGNOSTIC TROUBLE CODE (DTC) IDENTIFICATION table.

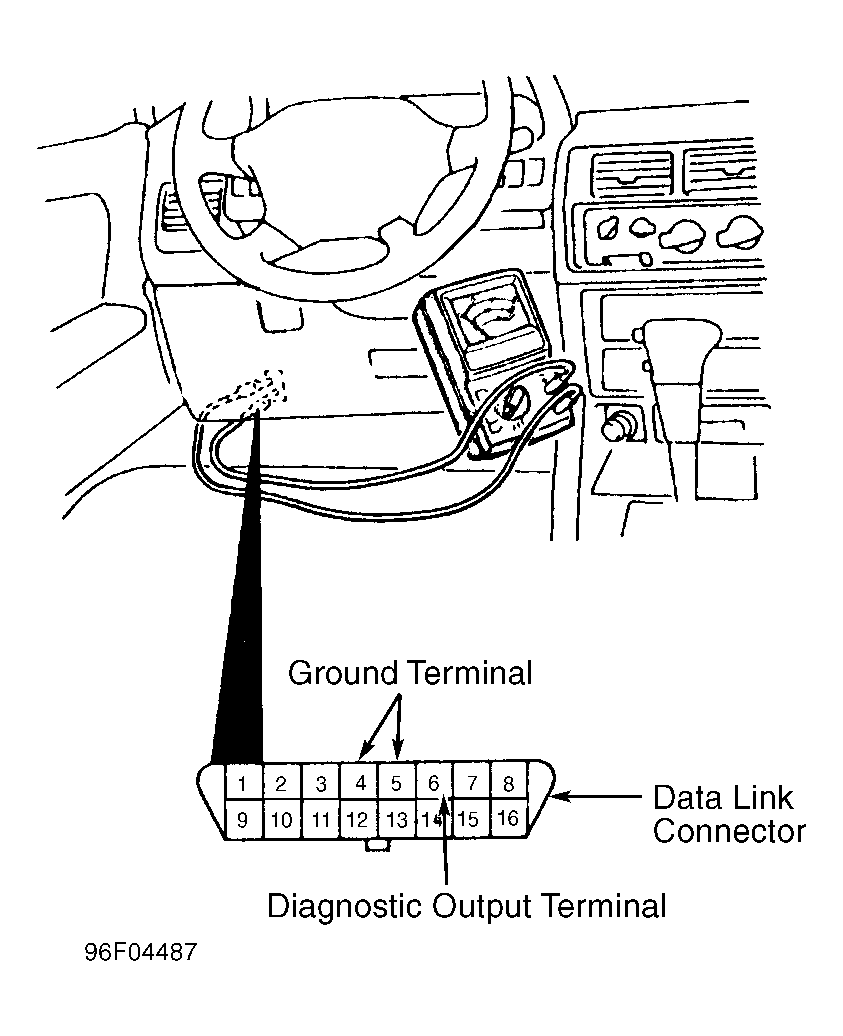

Fig 1: Data Link Connector Location - Colt, Colt Vista, Summit & Summit Wagon

Courtesy of CHRYSLER CORP.

Fig 2: Data Link Connector Location - Stealth & Talon

Courtesy of CHRYSLER CORP.

Fig 3: Identifying Voltmeter Trouble Code Display

Courtesy of CHRYSLER CORP.
