Thermostat Installation

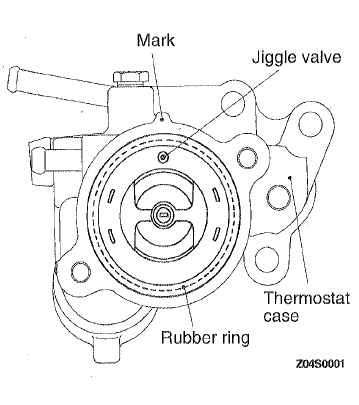

Fig 1: Installing Thermostat
G00486722Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. Install the thermostat so that the jiggle valve of the thermostat is facing straight up (mark position shown in the illustration).
    2. CAUTION: Be sure that there is no oil adhering to the rubber ring of the thermostat.
  2. Install the thermostat so that the rubber ring is not curled or damaged.
