Fuel Gauge Sender: Description and Operation

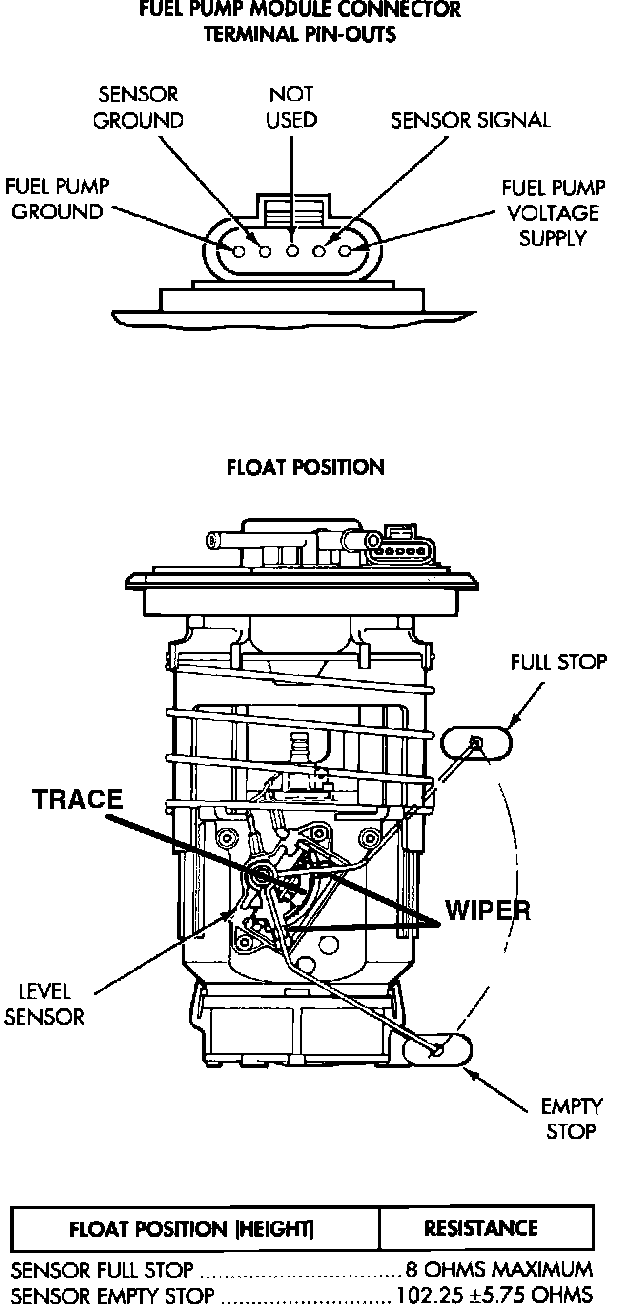

Fuel Pump MODULE And Connector TYPICAL:

The fuel level sensor is a variable resistor, whose resistance changes as the level of fuel in the tank change.

As the level float arm moves, the wiper on the sensor moves along the trace, either closer to or further away from, the sensor signal terminal.

The further away the sensor pickup is, the higher the resistance across the sensor is.
