With Flex Fuel

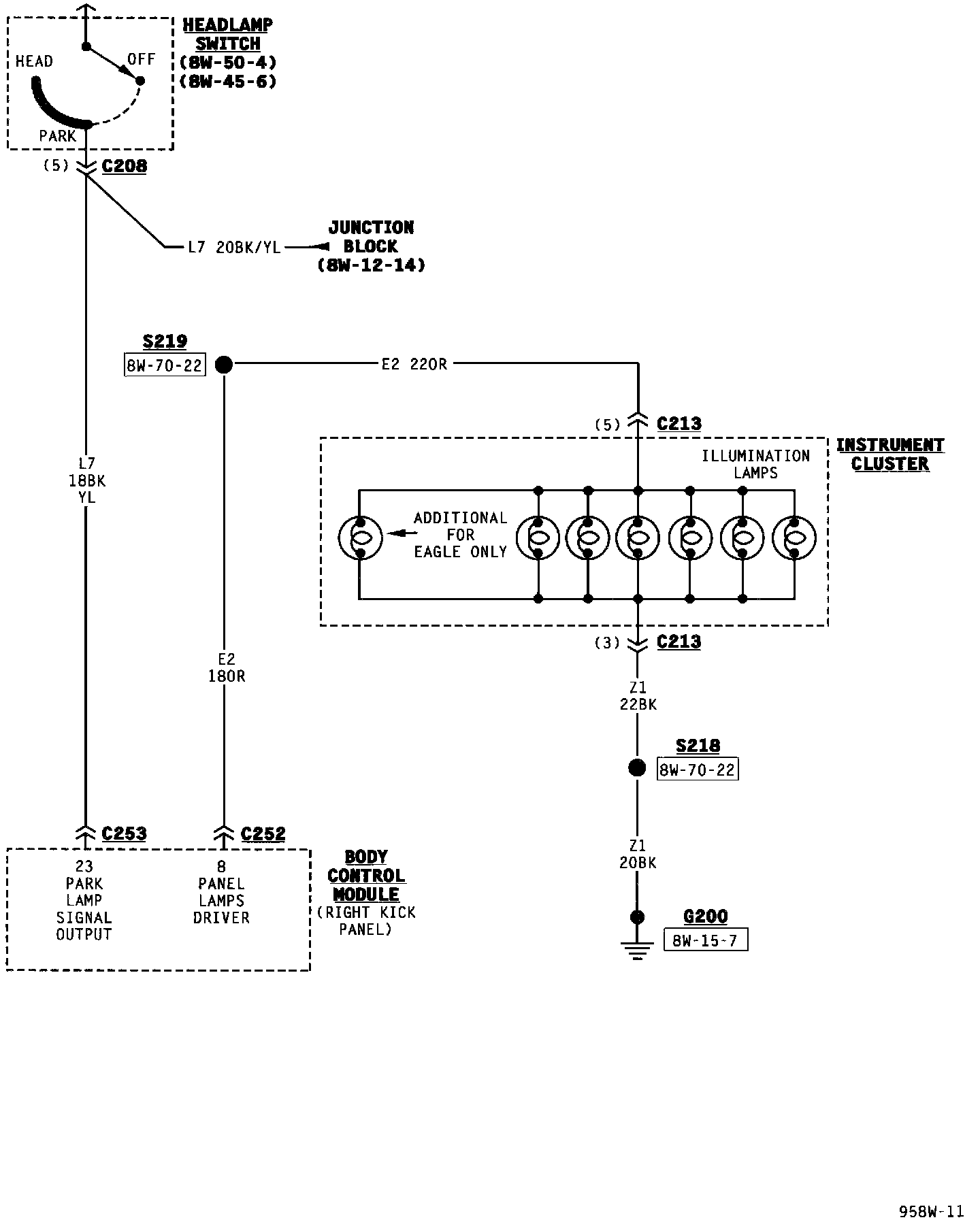

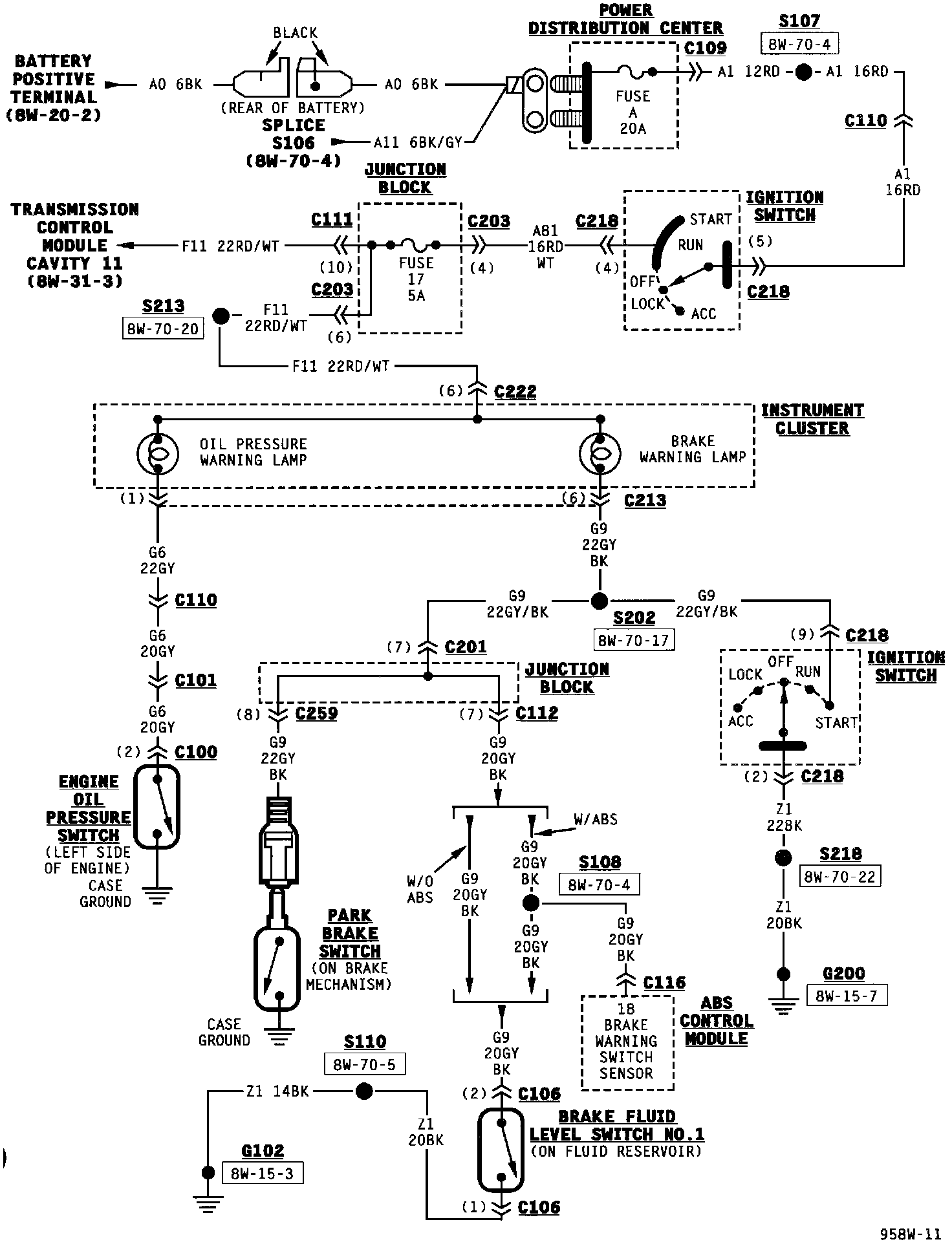

Instrument Cluster:

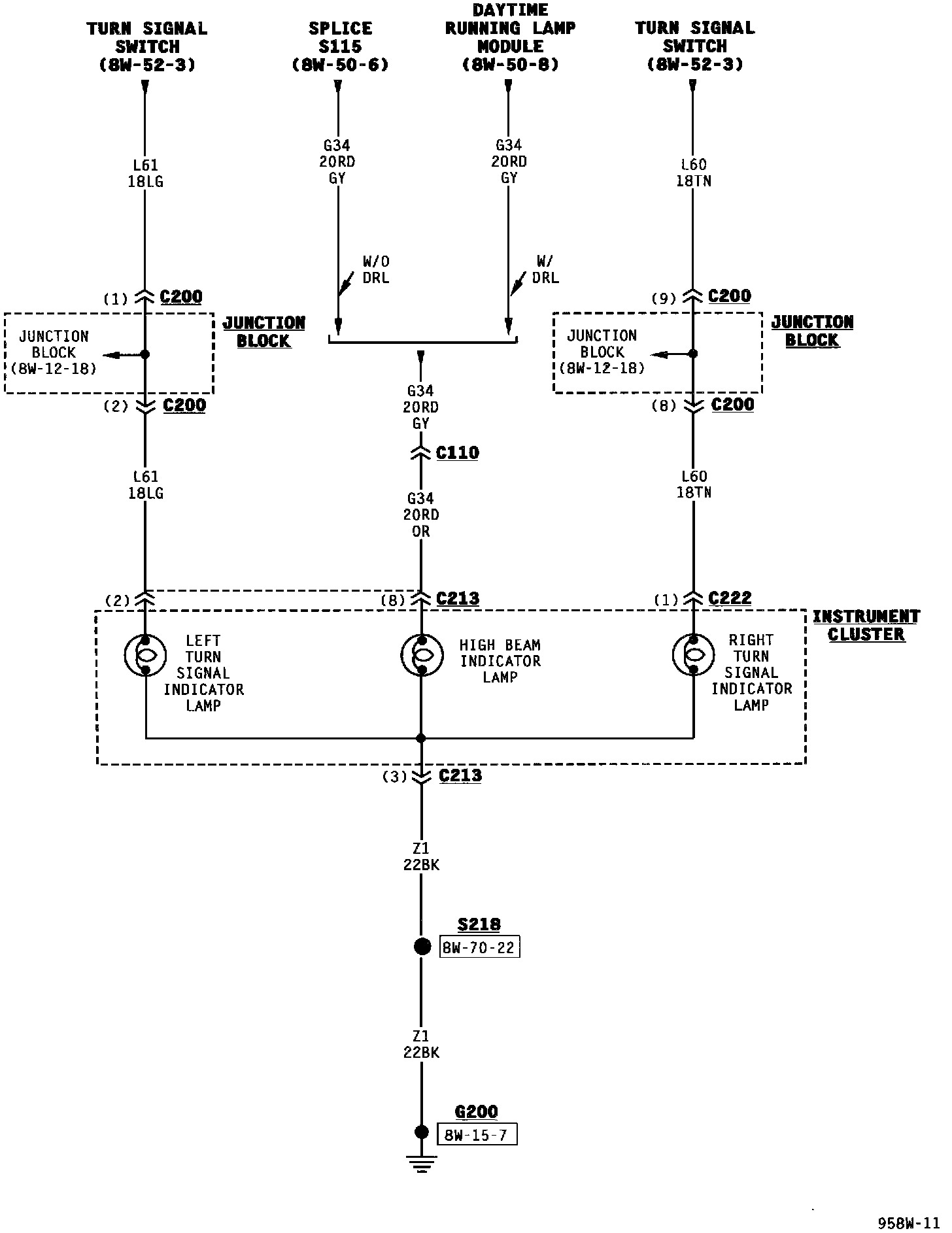

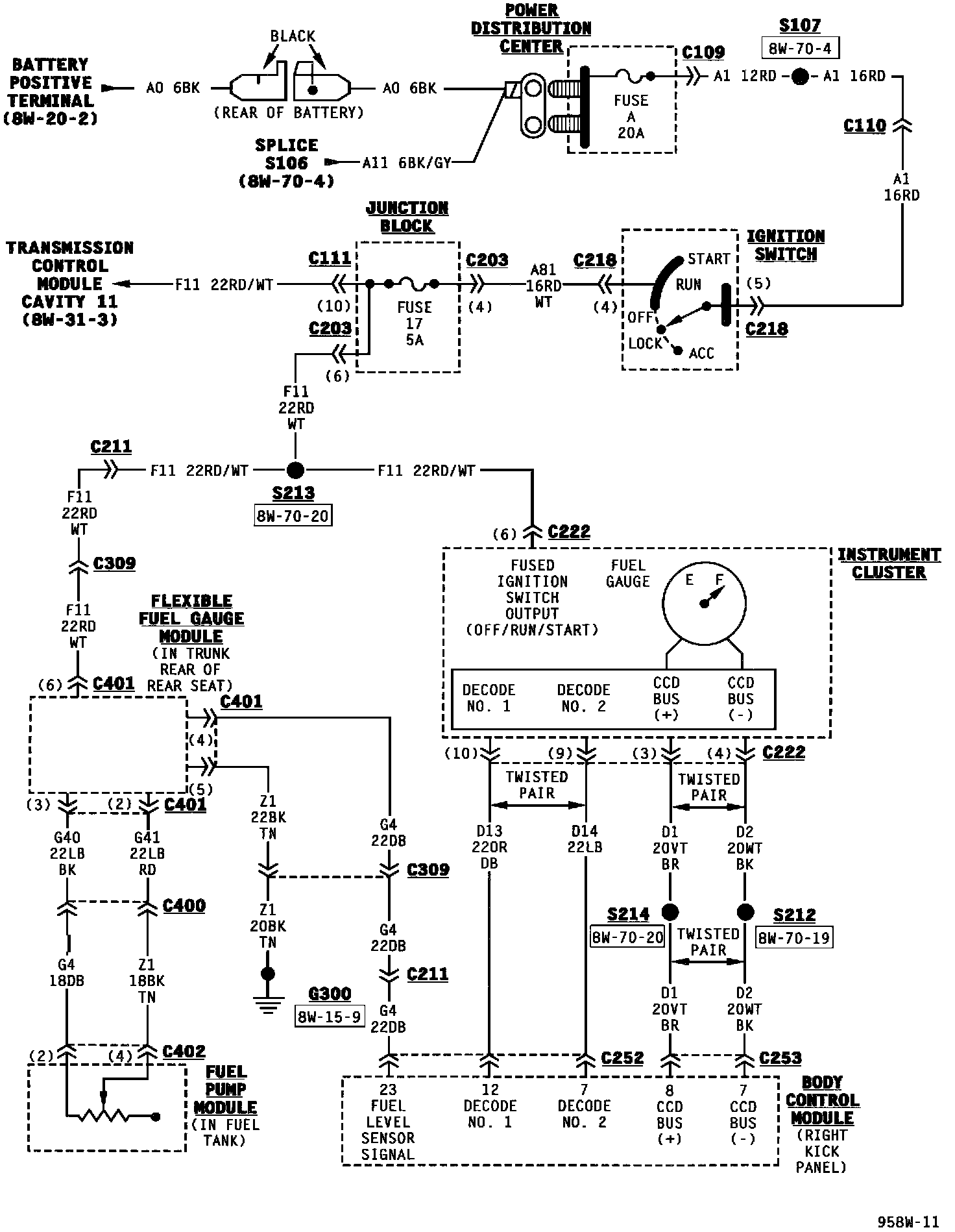

Instrument Cluster:

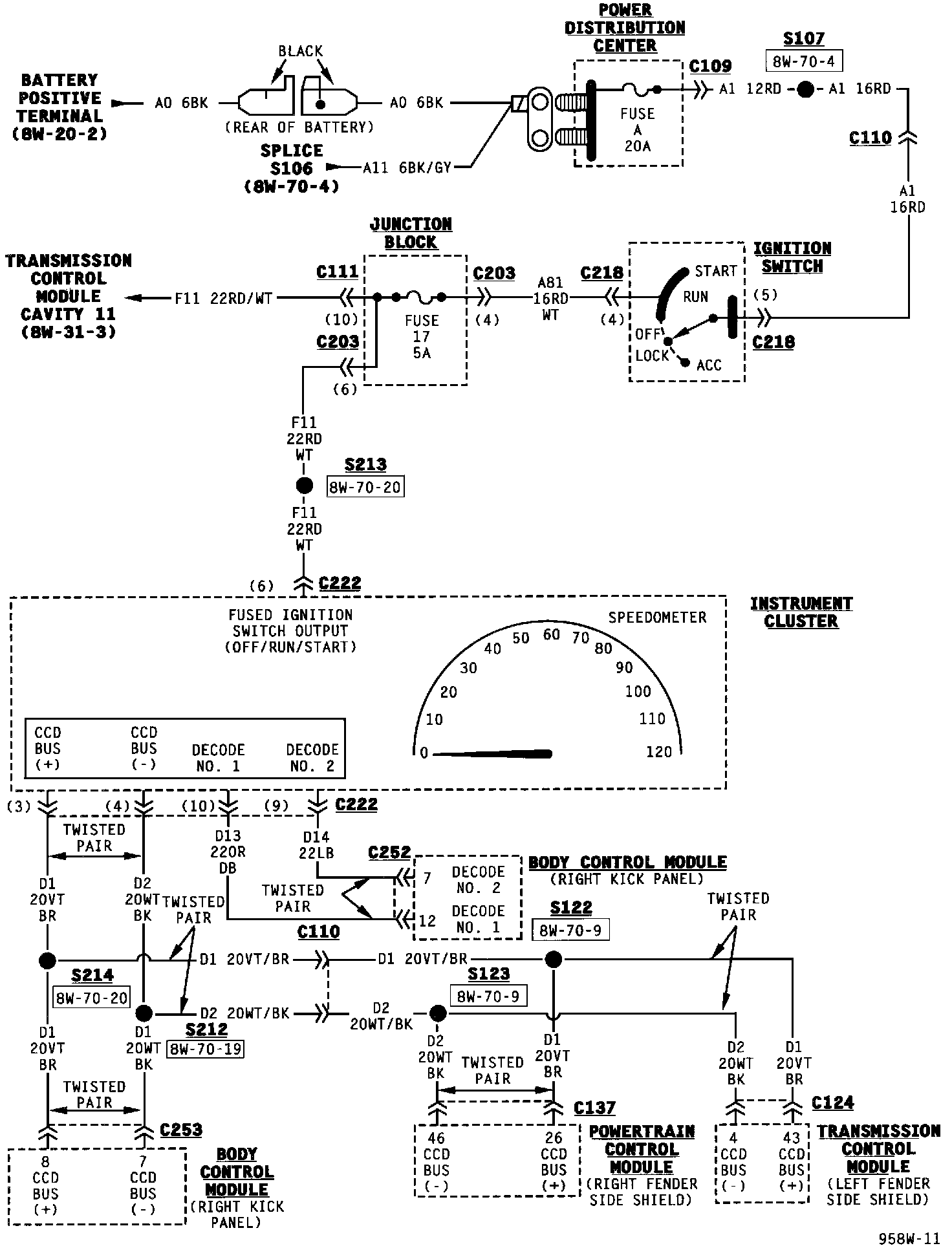

Instrument Cluster:

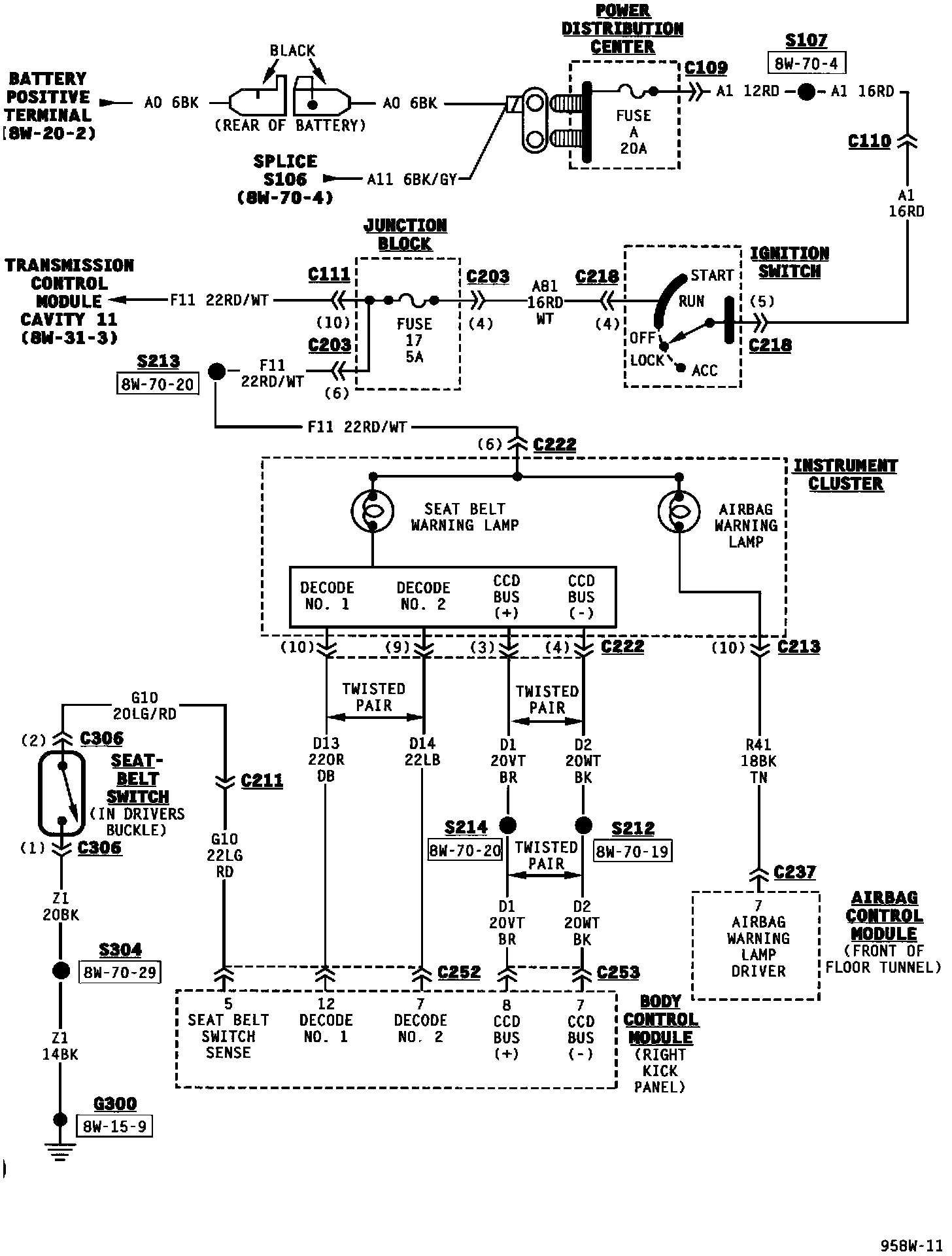

Instrument Cluster:

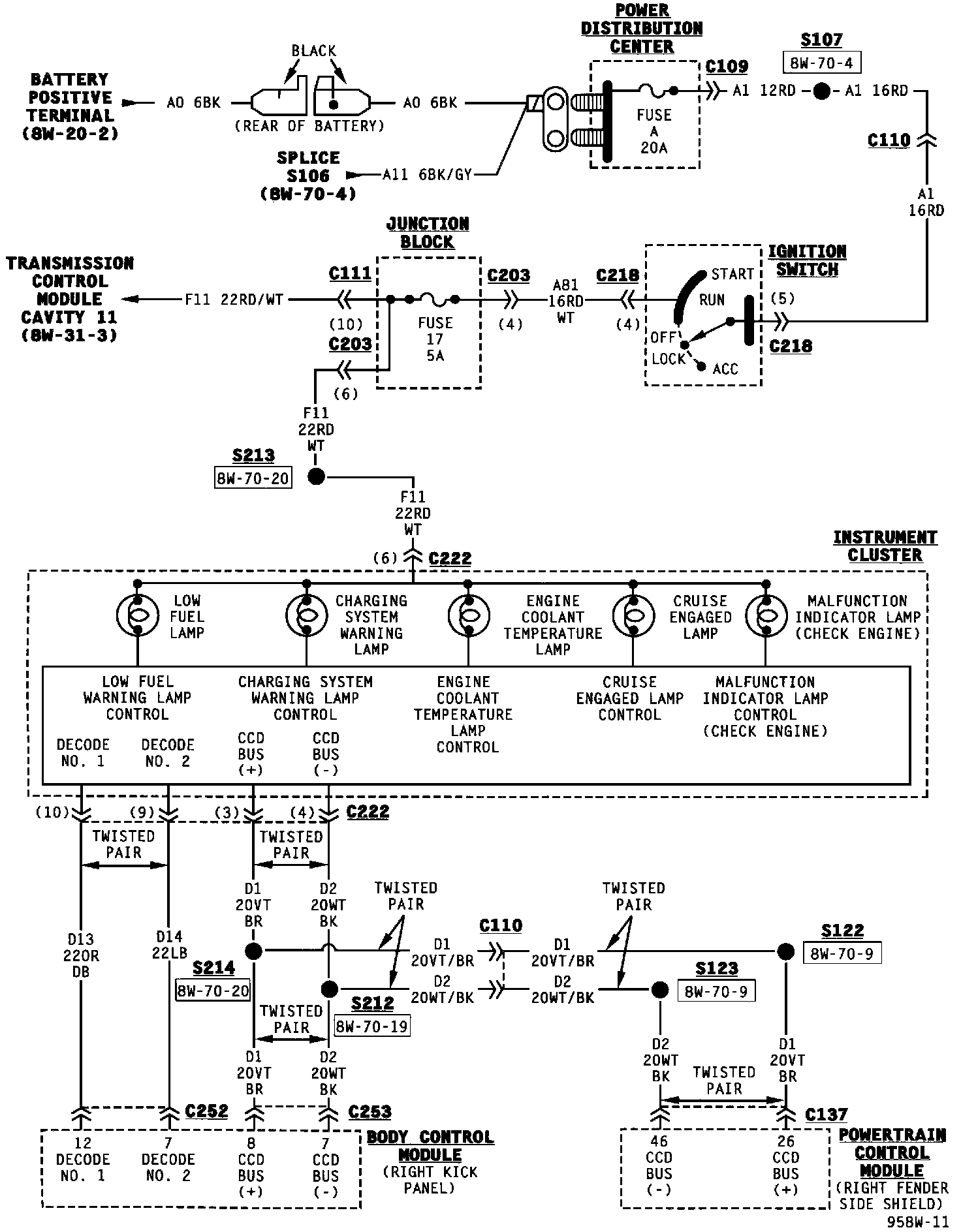

Instrument Cluster:

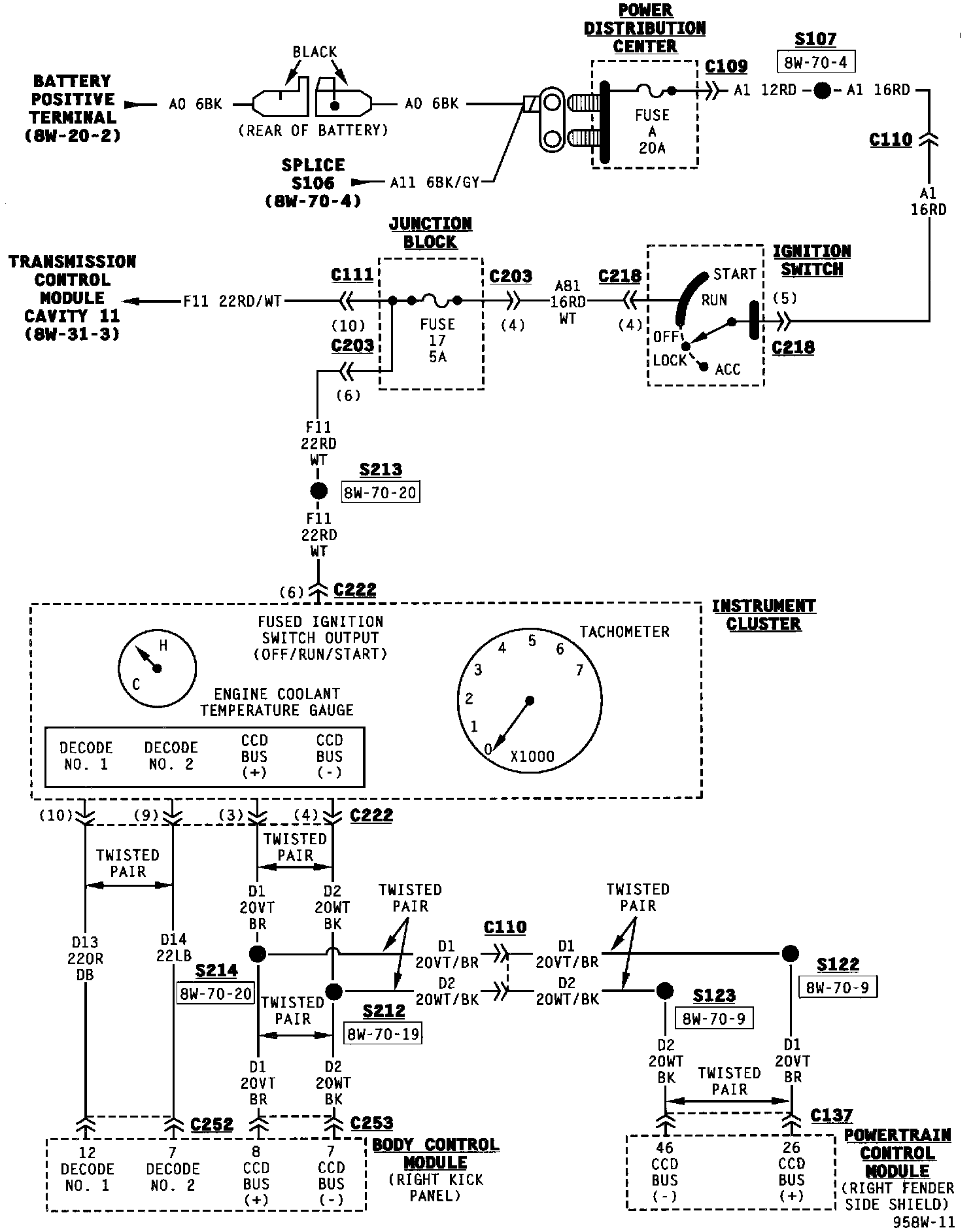

Instrument Cluster:

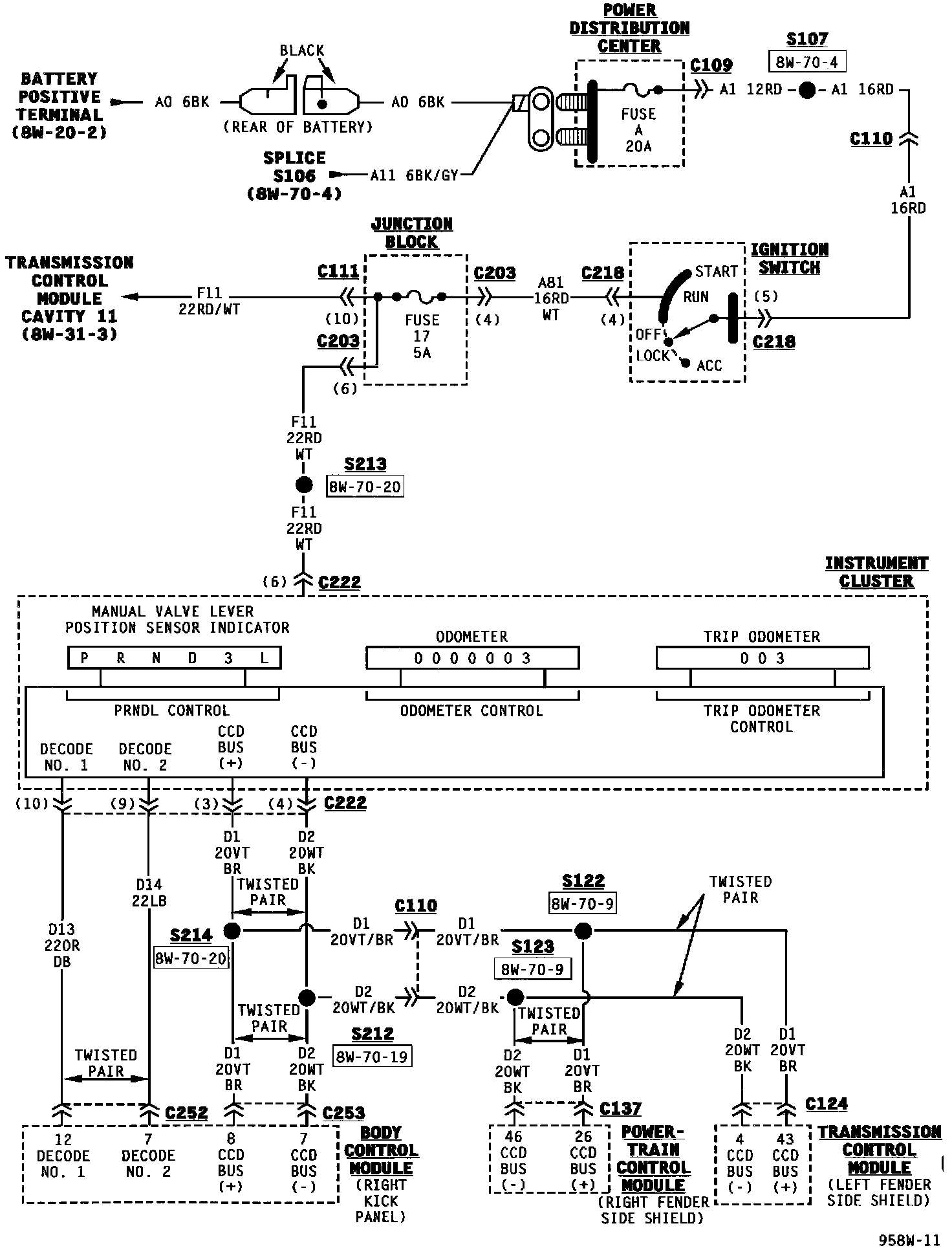

Instrument Cluster:

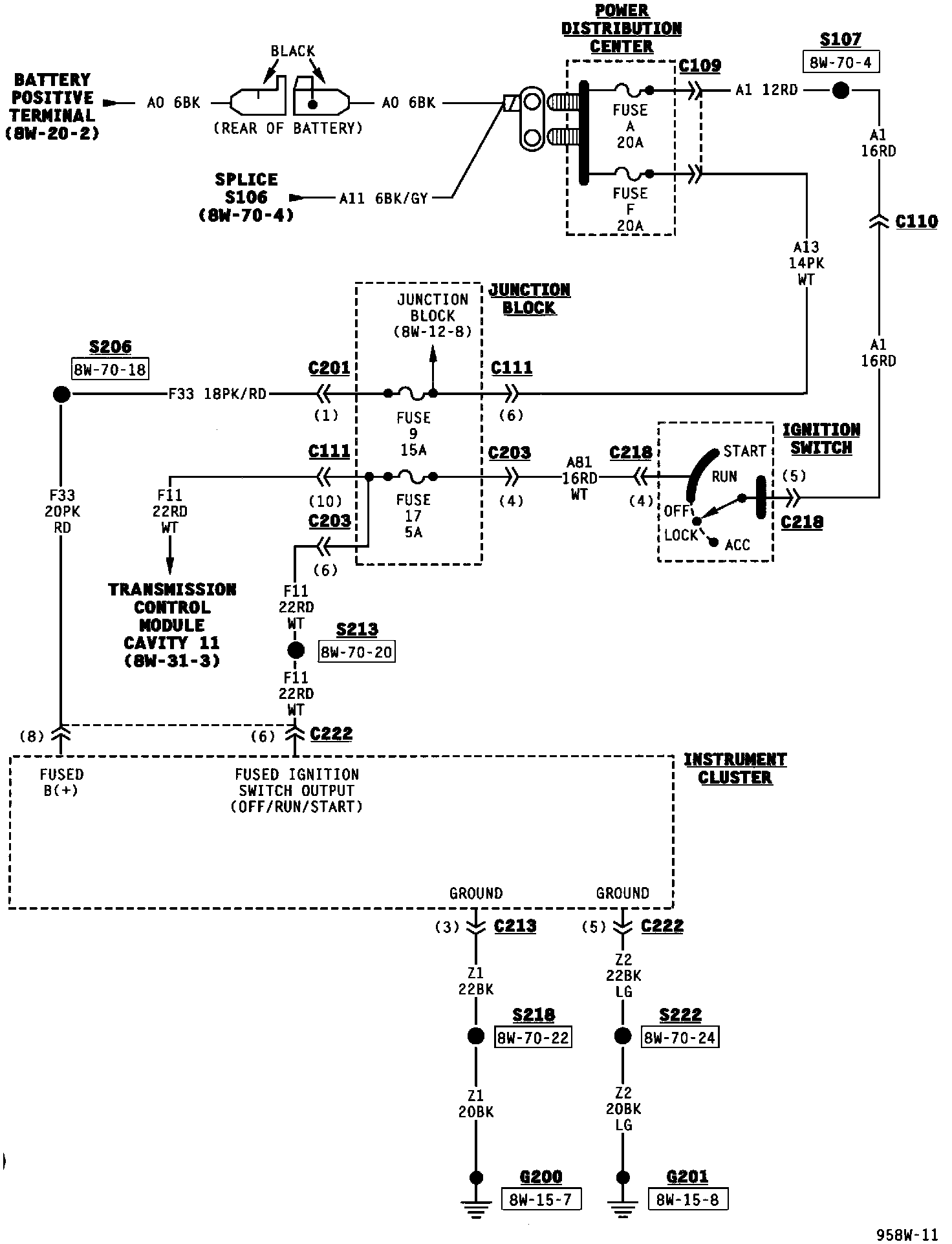

Instrument Cluster:




Instrument Cluster:




Instrument Cluster:






NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
