Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Group Number >> Group 8W-63 Power Seats >> Sheet 8W-63-4

Sheet 8W-63-4

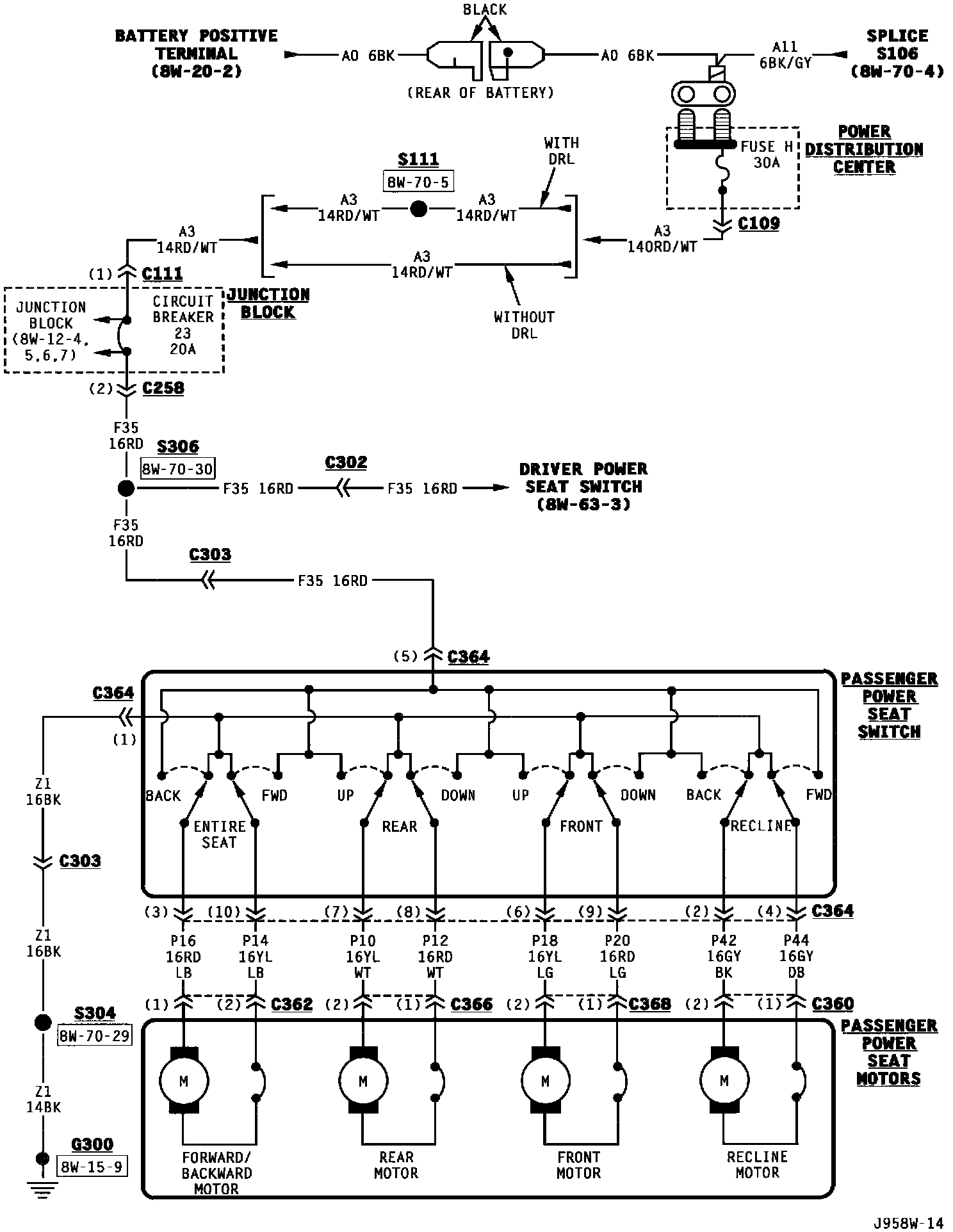

Power Seats (Part 2 Of 2):
