Eagle
>>
1995
>>
Vision V6-201 3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Group Number
>>
Group 8W-52 Turn Signals
>>
Sheet 8W-52-5
Sheet 8W-52-5

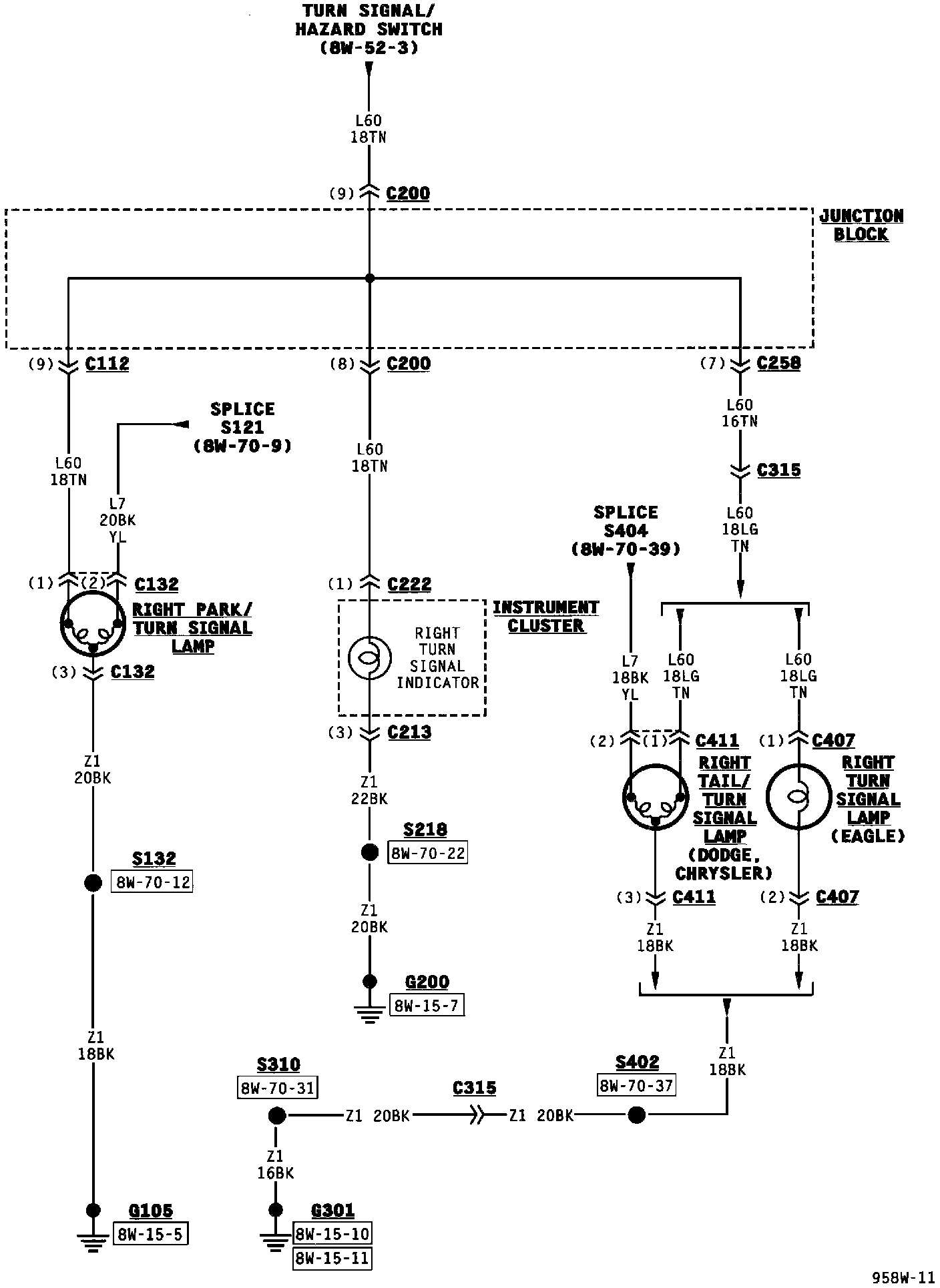

Turn Signals (Part 3 Of 3):
