Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Group Number >> Group 8W-46 Message Center >> Sheet 8W-46-3

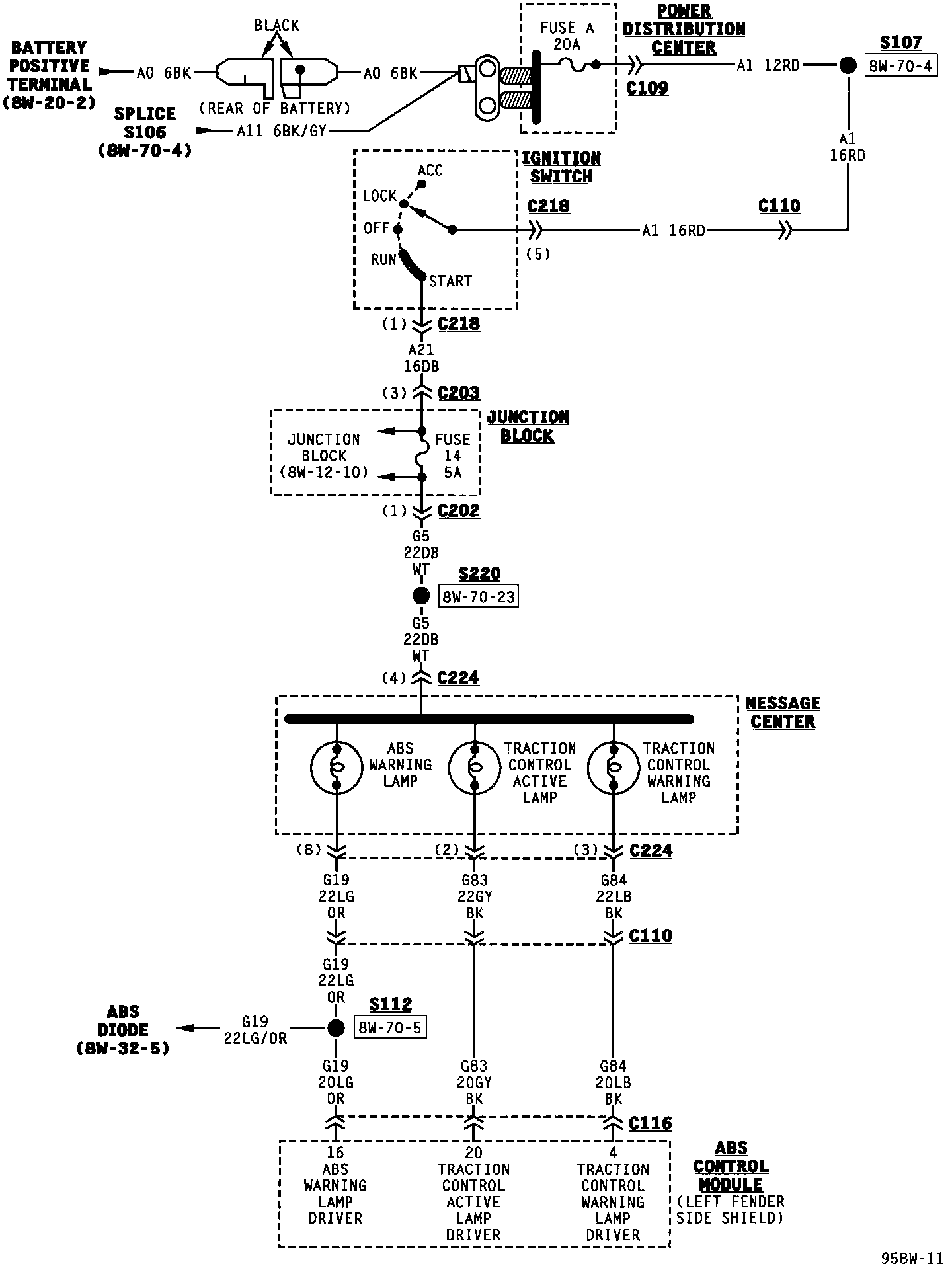

Sheet 8W-46-3

Message Center (Part 1 Of 2):
