Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Group Number >> Group 8W-12 Junction Block >> Sheet 8W-12-17

Sheet 8W-12-17

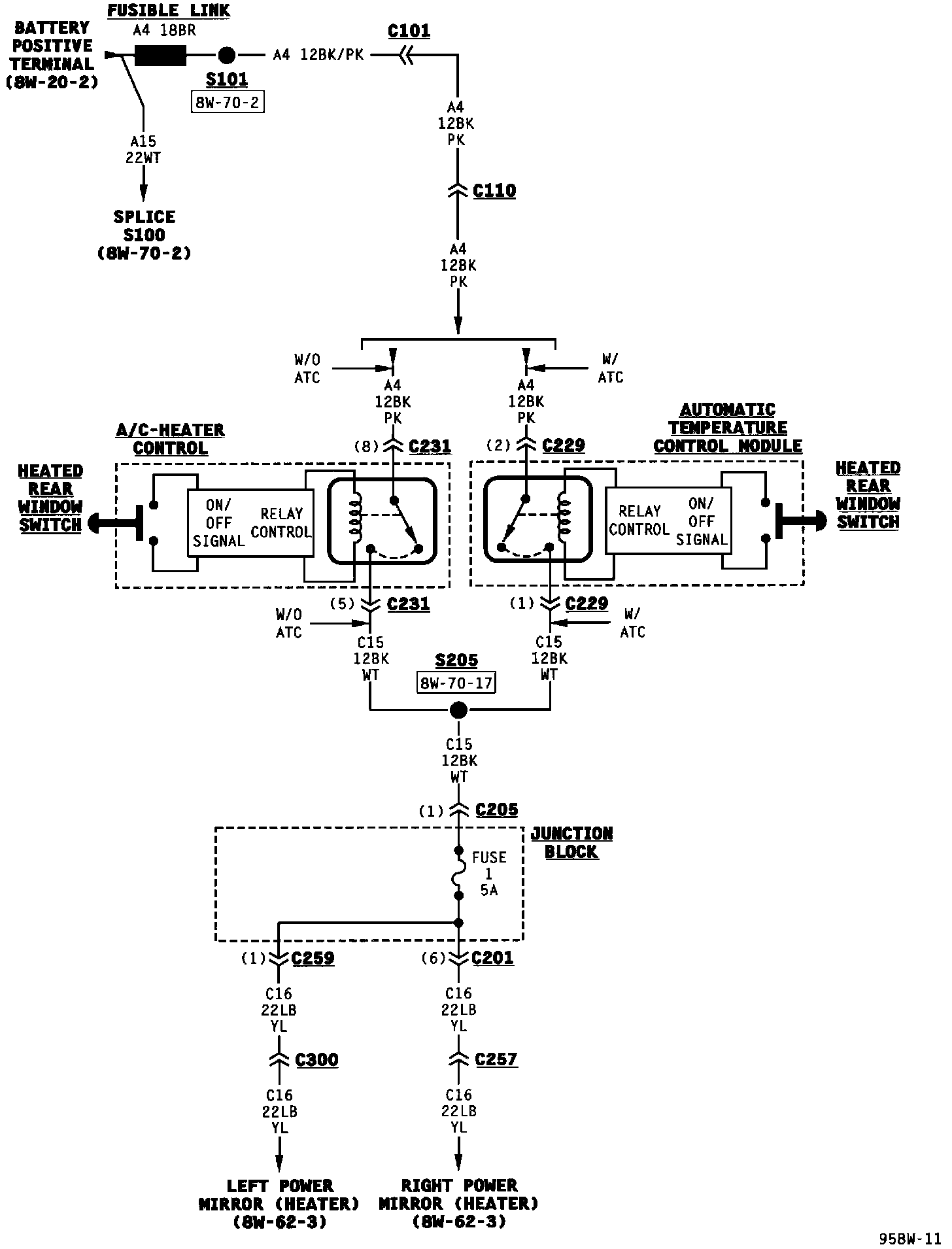

Junction Block (Part 14 Of 18):
