Removal & Installation

Use a bolt and arbor to remove and install bushing. See Fig 1. Press bushing into trailing arm from chamfered side of trailing arm. Center bushing within trailing arm bushing bore.

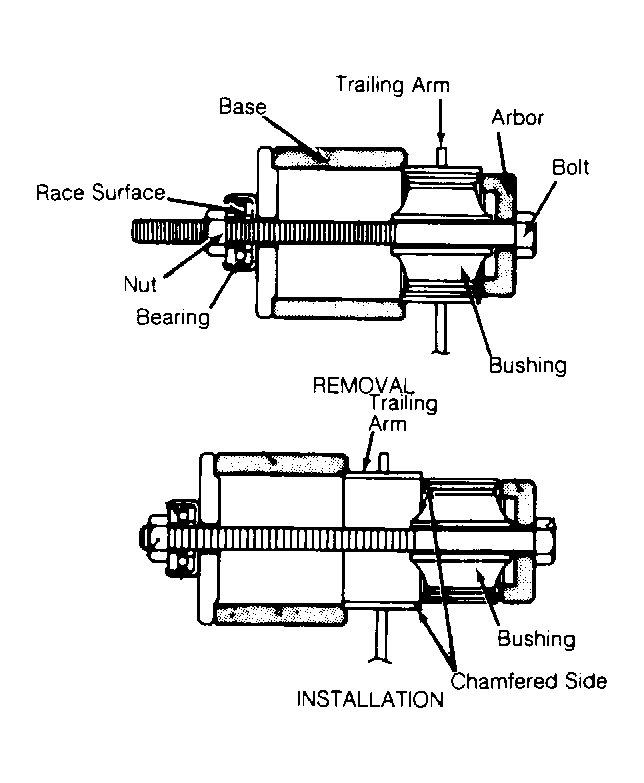

Fig 1: Removing & Installing Trailing Arm Bushing

Courtesy of CHRYSLER CORP.
