Wheel Bearing: Removal

  1. Remove hub and knuckle assembly. See HUB & KNUCKLE ASSEMBLY. Assemble Bridge (MB991056) and Hub Remover/Installer (MB990998) on knuckle. See Fig 1. Rotate nut to remove hub from knuckle.
  2. Using screwdriver, pry oil seal (axle side) from knuckle. Bend oil seal (hub side) on hub until puller jaws engage with wheel bearing inner race. Using puller, remove wheel bearing inner race from hub. Remove snap ring. Using press, bridge and Bearing Remover (C-4628), press wheel bearing from knuckle.

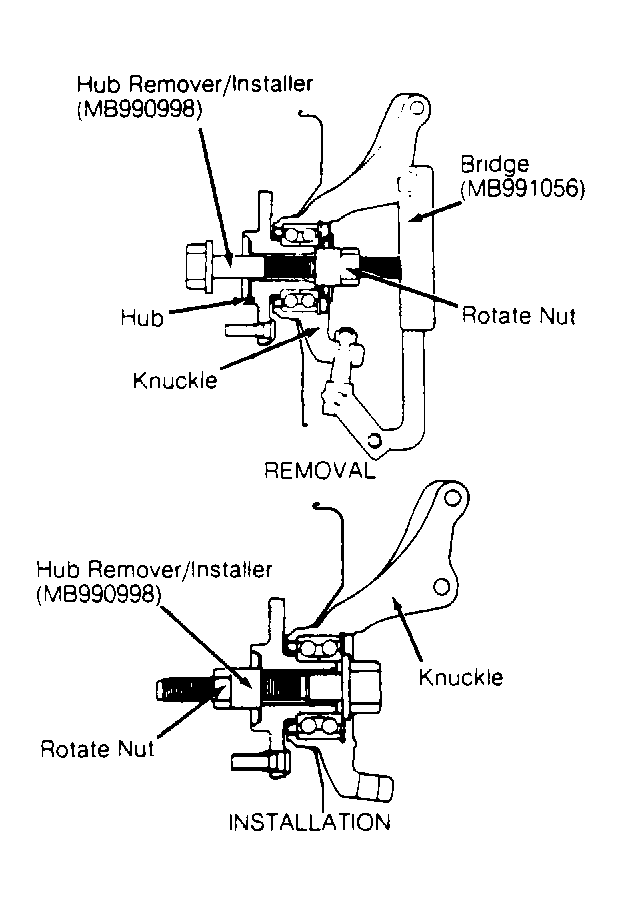

Fig 1: Removing & Installing Hub
G90C02142Courtesy of CHRYSLER CORP.
