Points Of Removal

Step 1

Use a shop towel to remove the clip. Remove door window regulator handle. See Fig 1 .

Step 6

If clip remains in mounting hole provided in door, remove it by using tool manufactured as illustrated. See Fig 2 .

Fig 1: Removing Door Window Regulator Clip (Manual Windows Only)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA, INC.

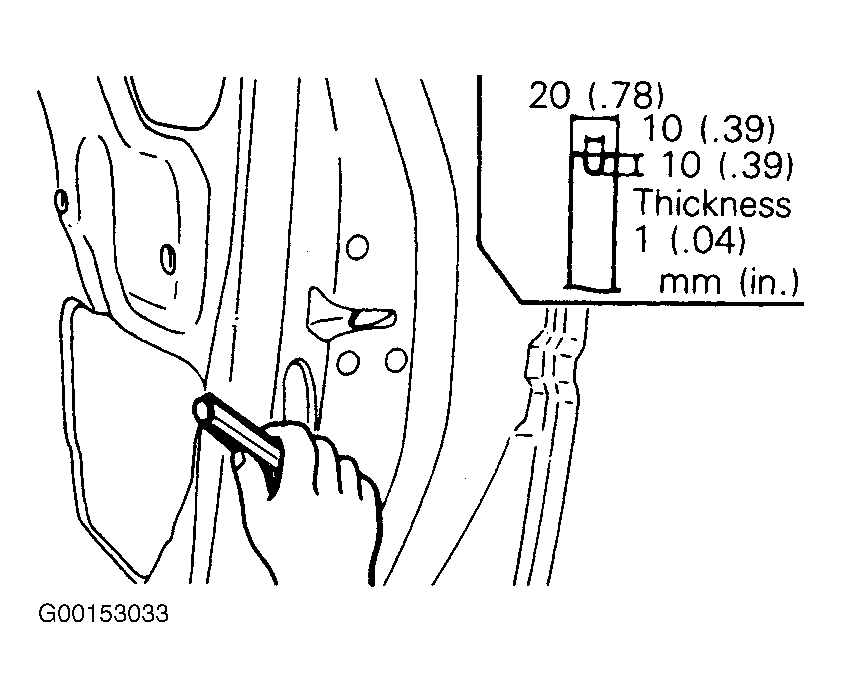

Fig 2: Removing Door TrimClip

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA, INC.
