Vacuum Hose Diagram(S)
>>
2.0L Turbo - Federal & CANADA
2.0L Turbo - Federal & CANADA

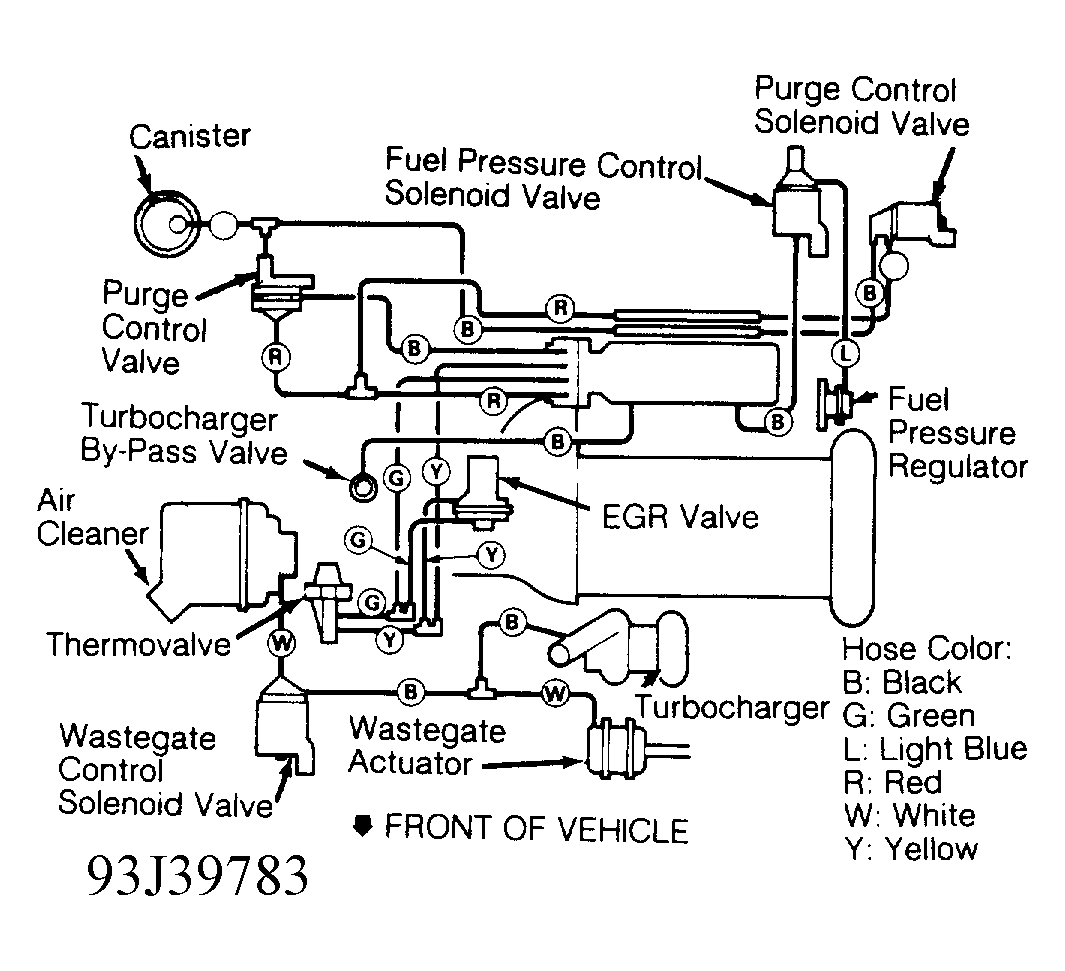

Fig 1: Vacuum Hose Routing (2.0L Turbo - Federal & Canada)
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
