Rear Brake Caliper, Pads & Rotor: Removal

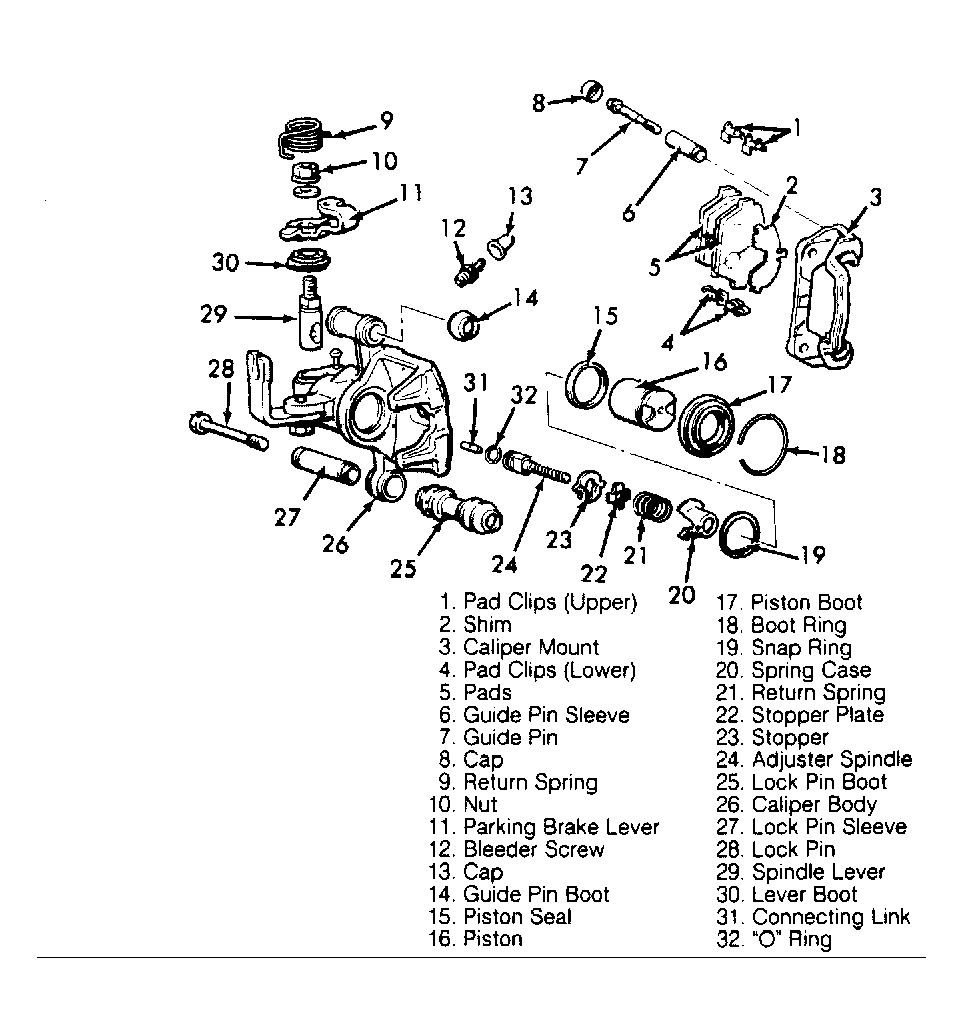

Disconnect parking brake cable and brake hose from caliper. Remove caliper guide pin and lock pin. See Figure . Remove caliper. Remove pads from caliper. Remove rotor from hub.
