Suspension - Rear (AWD & Fwd): Description: AWD

Rear suspension is an independent trailing arm type. System consists of low profile coil springs, suspension arms, shock absorbers and a stabilizer bar. See Fig 2 .

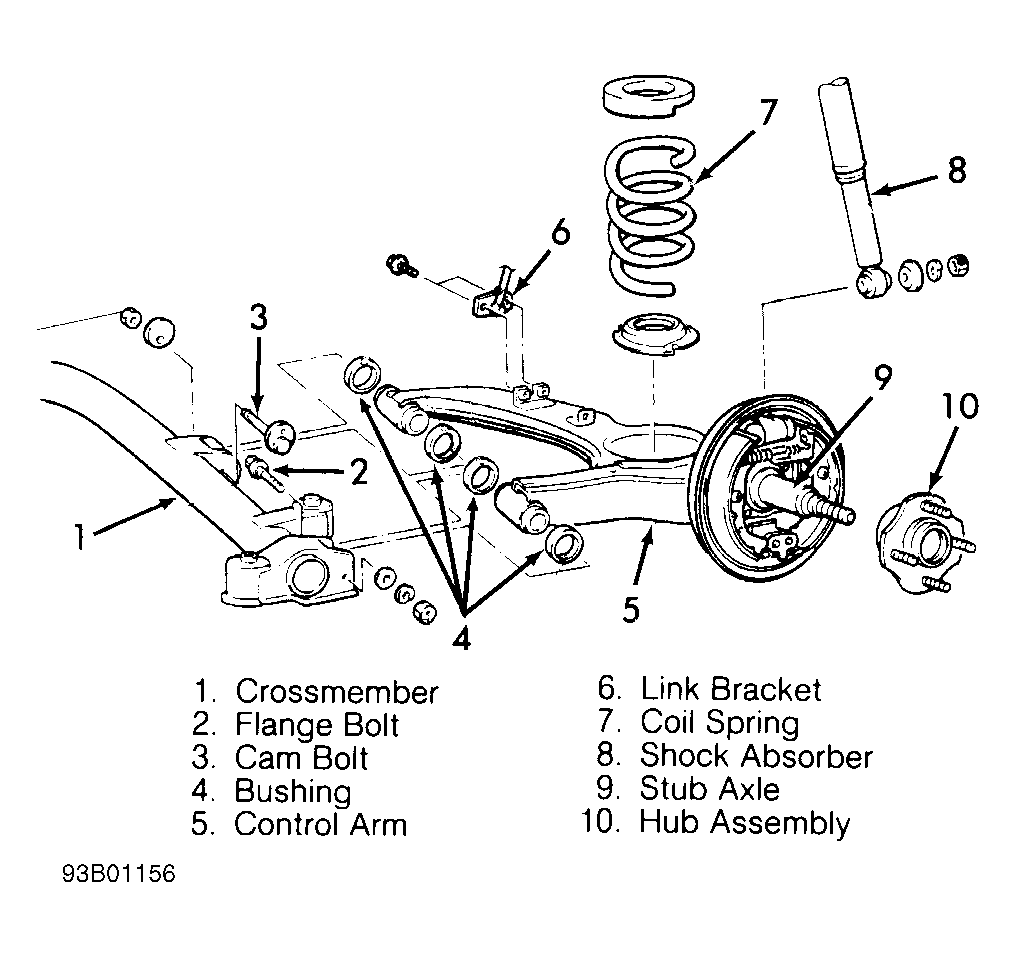

Fig 1: Exploded View Of Rear Suspension (FWD)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

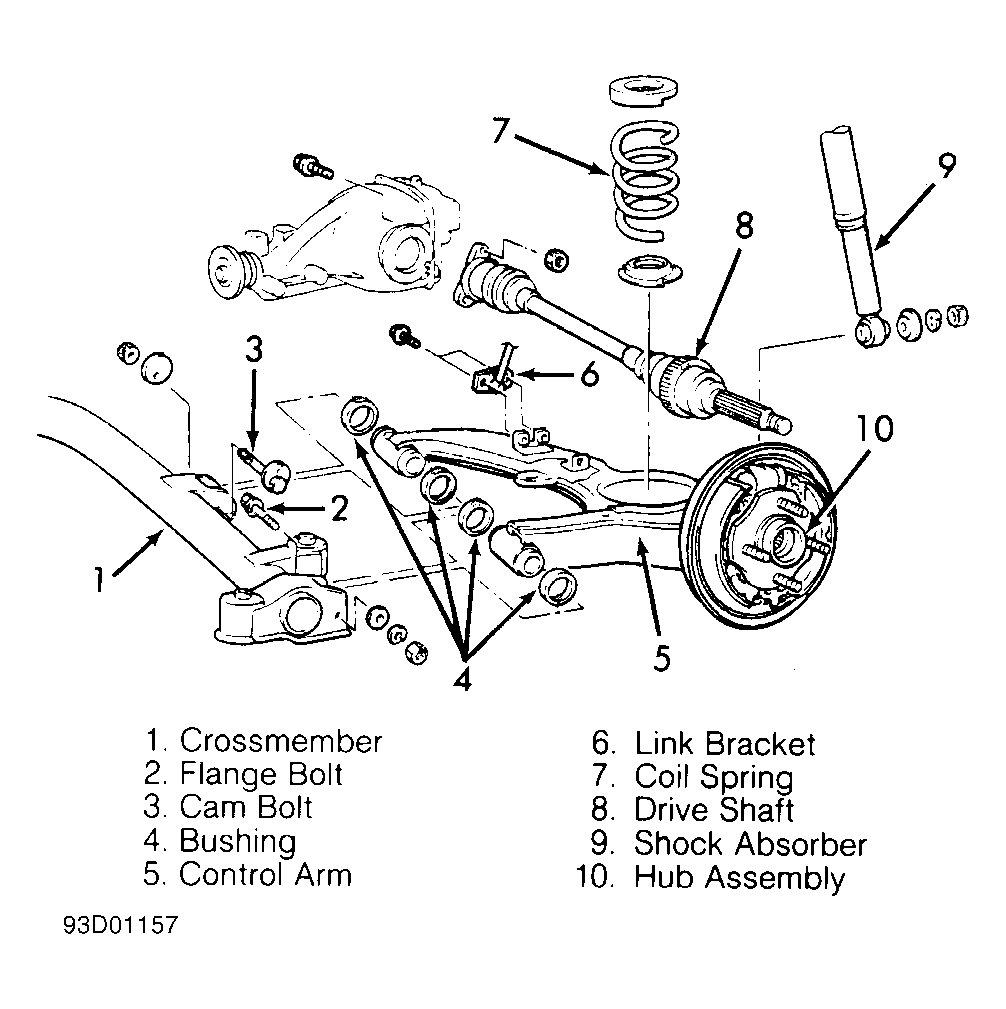

Fig 2: Exploded View Of Rear Suspension (AWD)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
