Wiring Diagrams

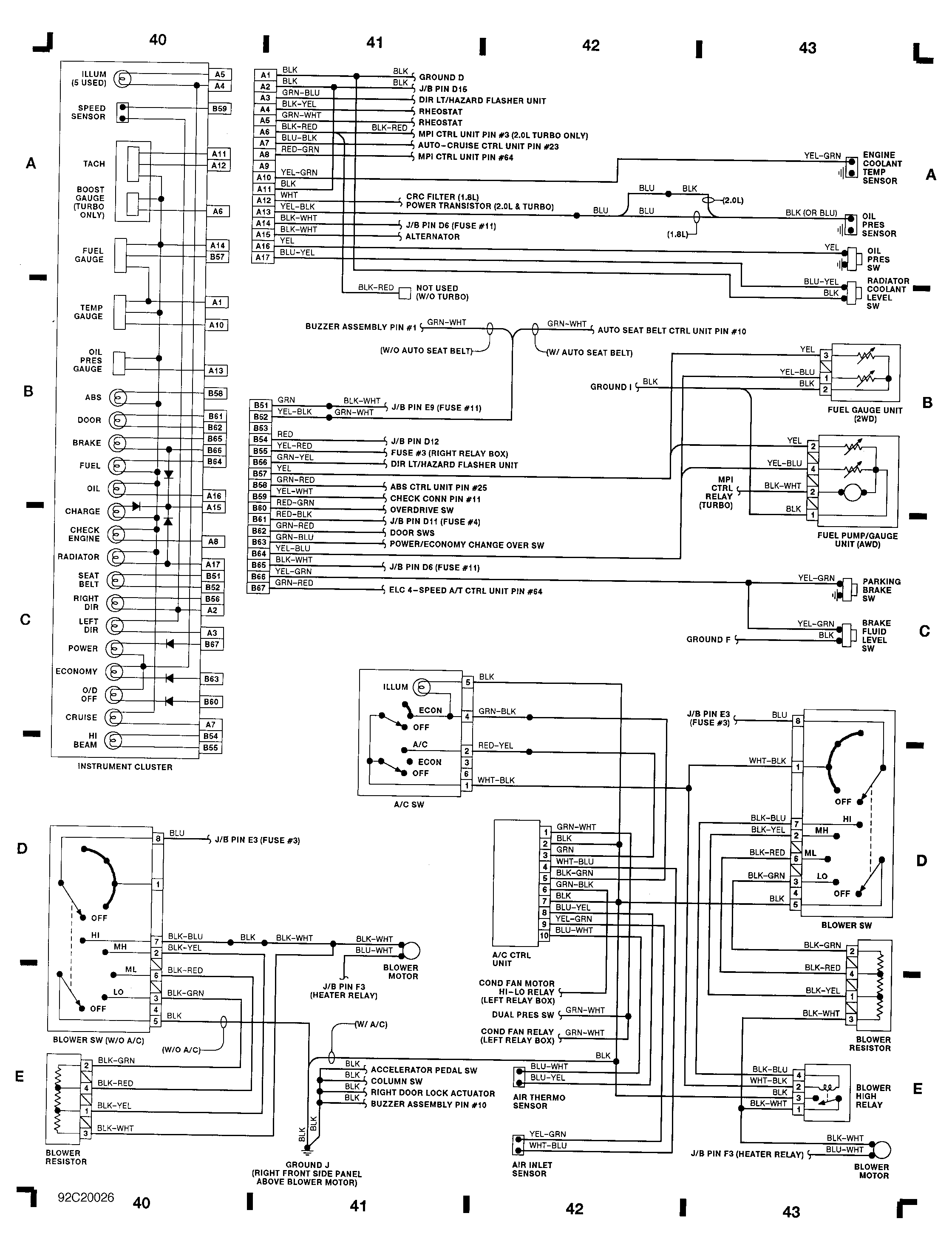

Fig 1: Instrument Cluster (Grid A-E 40-43)

G92C20026

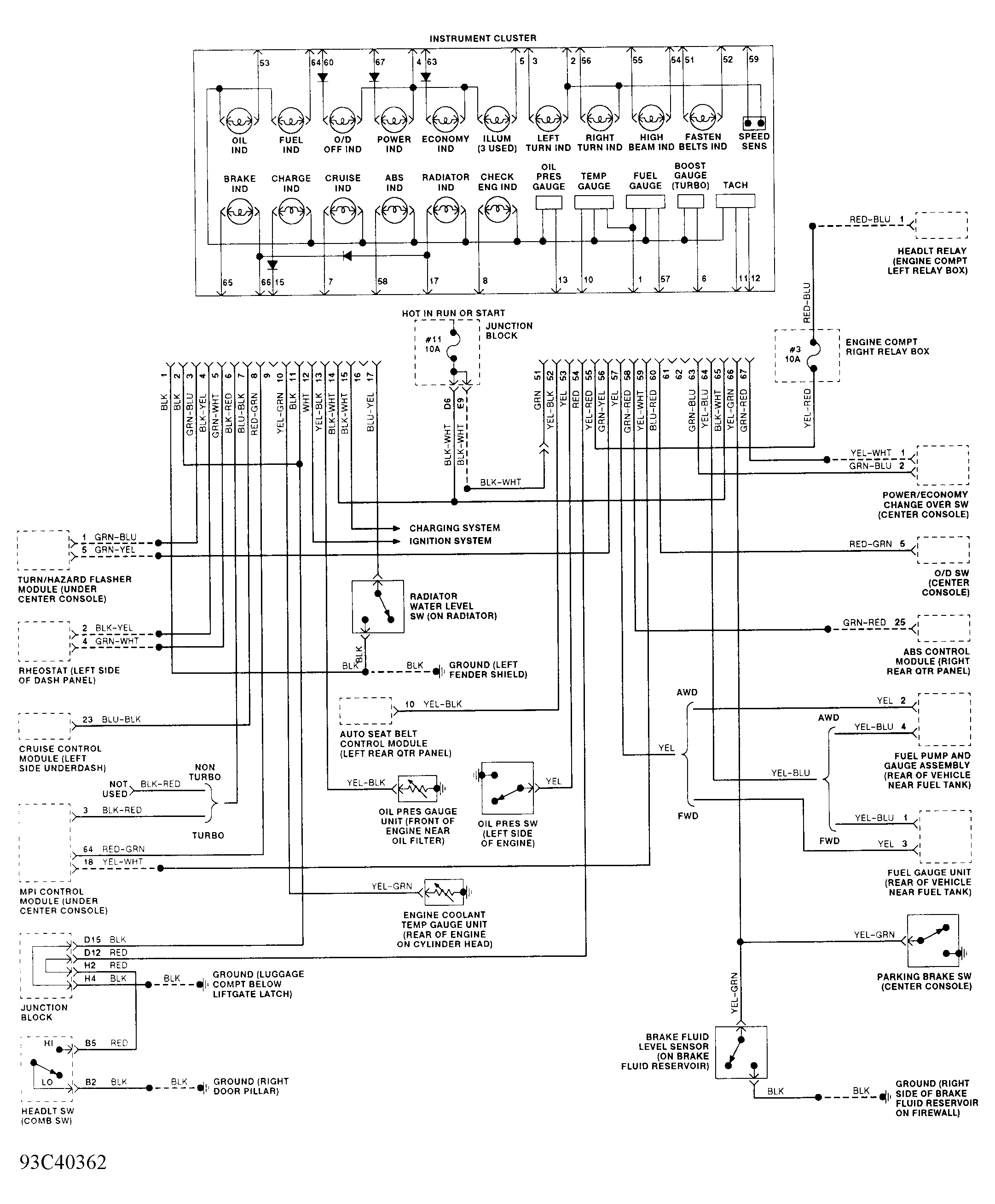

Fig 2: Analog Instrument Panel Wiring Diagram

G93C40362
