Resistance Test

Using ohmmeter, measure resistance between fuel gauge terminal and ground terminal with float at points "F" and "E". See Fig 1 and Fig 2 . See FUEL SENDING UNIT RESISTANCE  . Ensure resistance changes smoothly when float arm is moved slowly between points "F" and "E". Replace sending unit if readings are not as specified.

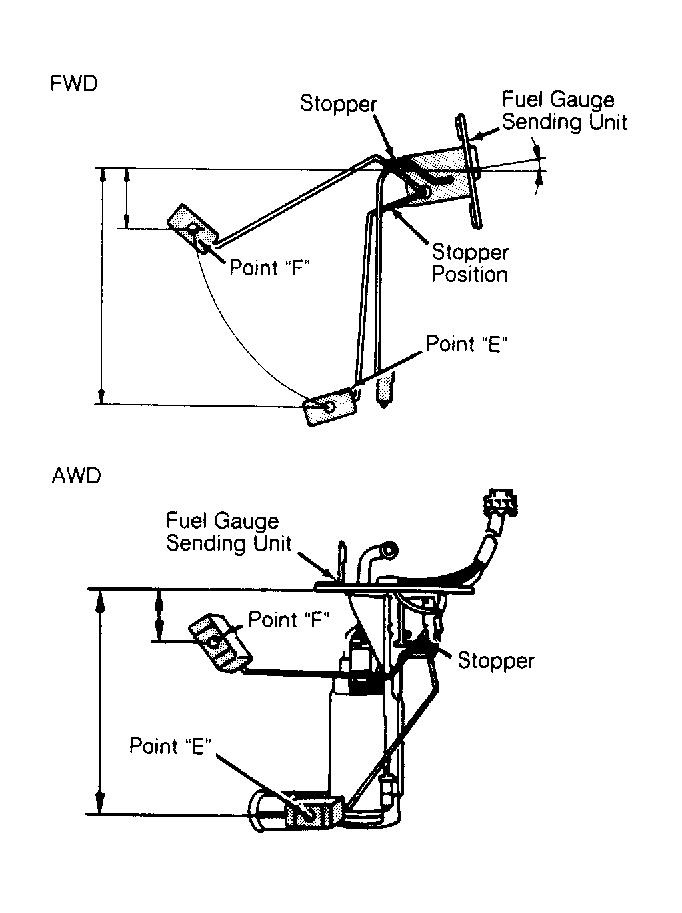

Fig 1: Measuring Float Height

Courtesy of CHRYSLER MOTORS.

Fig 2: Measuring Fuel Gauge Sending Unit Resistance

Courtesy of CHRYSLER MOTORS.
