Instrument Cluster Gauges

  1. Remove instrument cluster. See INSTRUMENT CLUSTER  . Remove trip counter reset shaft by pulling straight out from cluster lens.
  2. Remove cluster lens and faceplate by depressing retaining tabs on housing and separating both from cluster housing. Remove gauge(s) retaining nuts from printed circuit board. Remove gauge(s) from cluster housing. To install, reverse removal procedure. See Fig 1 .

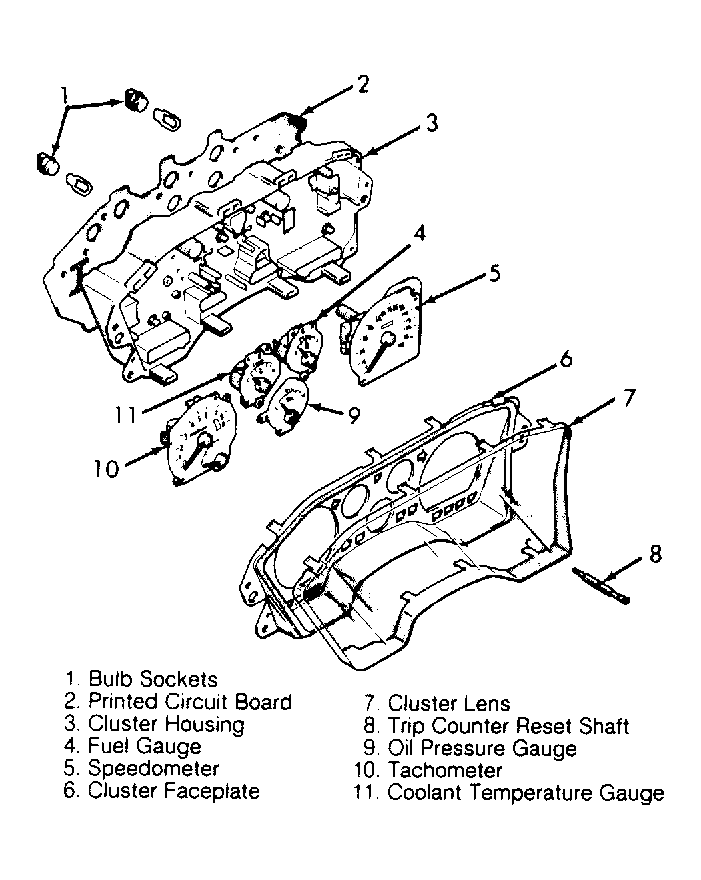

Fig 1: Exploded View Of Instrument Cluster
G92J04559Courtesy of CHRYSLER MOTORS.
