Wiring Diagrams

NOTE: Due to the size and complexity of the Wiring Diagrams it is recommended that the Diagram be printed.

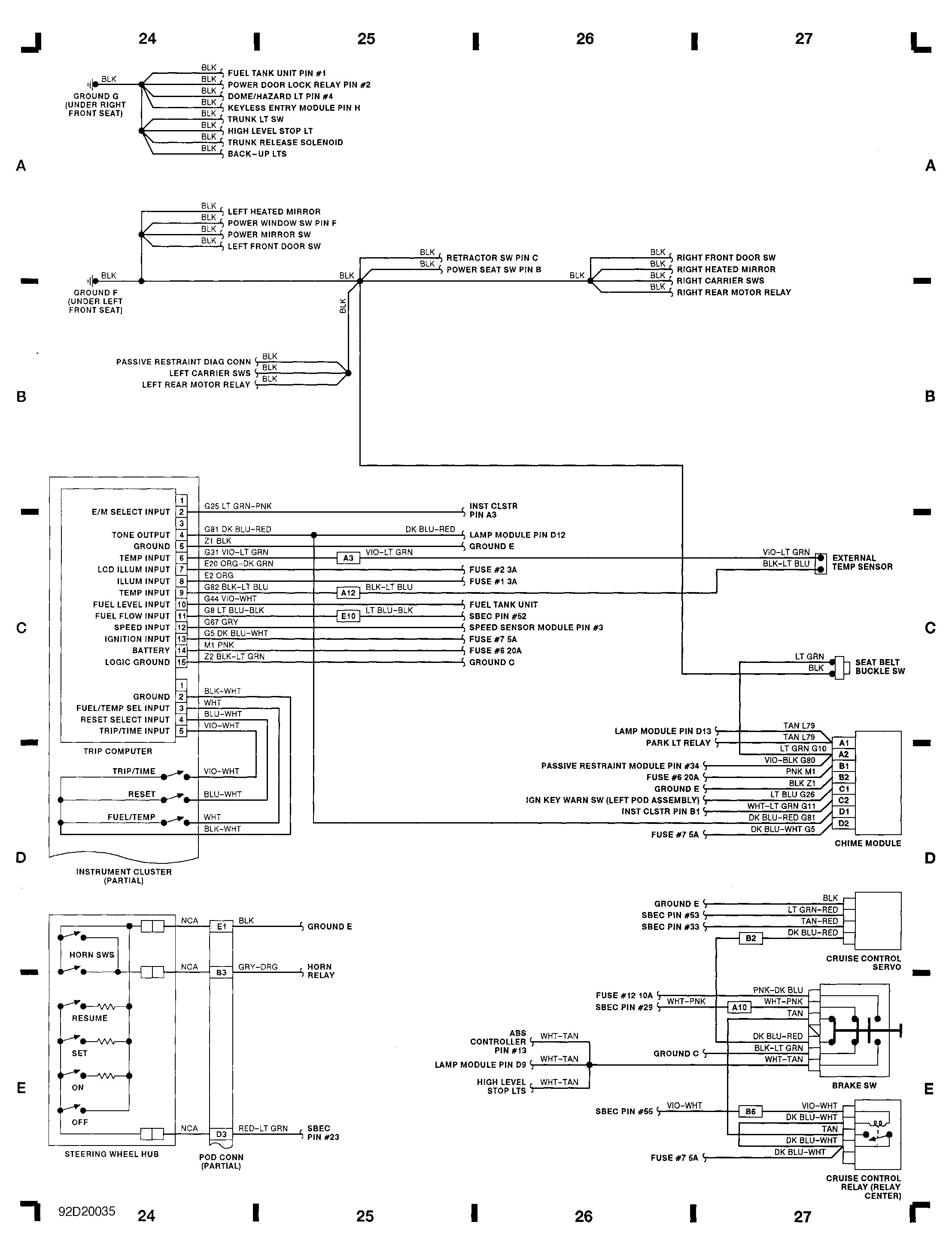

Fig 1: Instrument Cluster (Grid B-C 24-27)
G92D20035

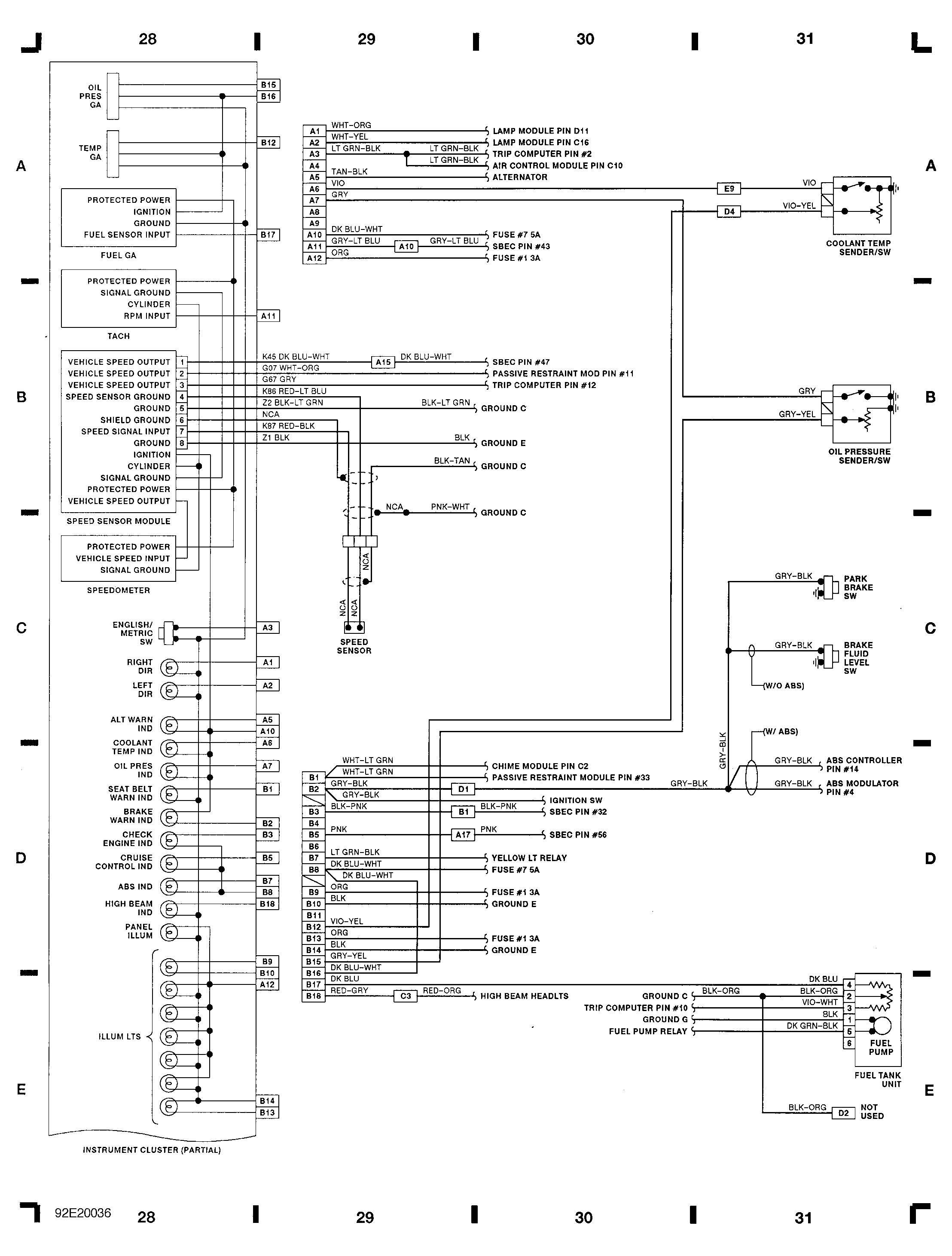

Fig 2: Instrument Cluster (Grid A-E 28-31)
G92E20036
