NS-10B: Checking For No Signal From Camshaft & Crankshaft Sensors
Fig 1: Test NS-10B: Circuit Diagram.

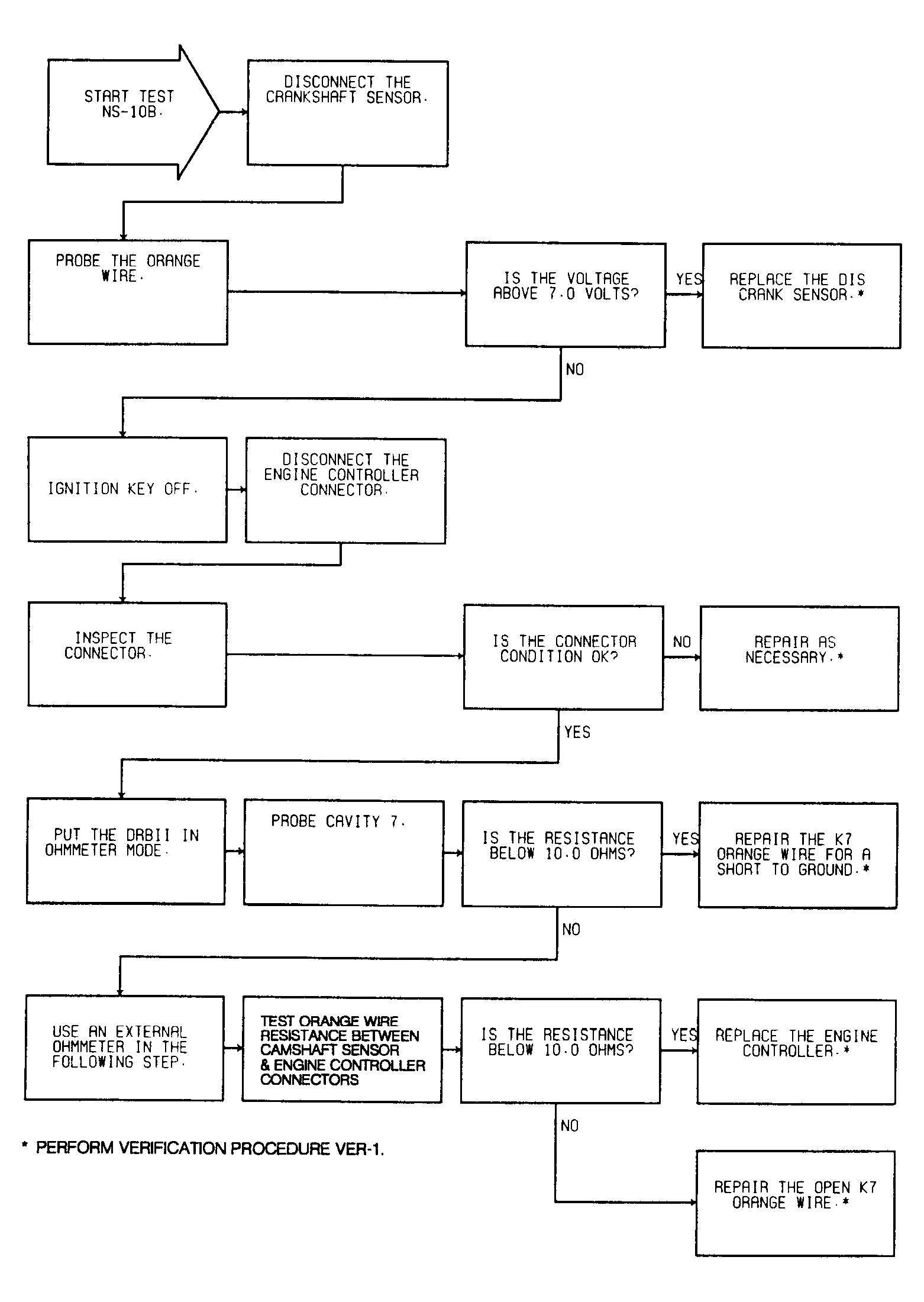

Fig 2: Test NS-10B: Diagnostic Flow Chart
