NS-10A: Checking For No Signal From Camshaft & Crankshaft Sensors

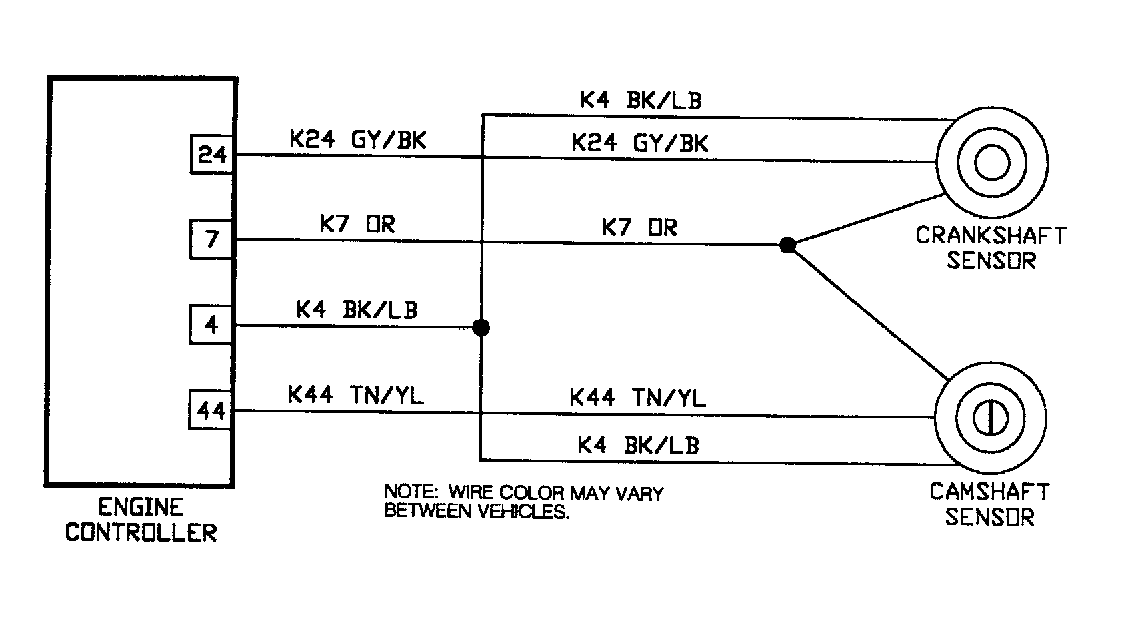

Fig 1: Test NS-10A: Circuit Diagram.

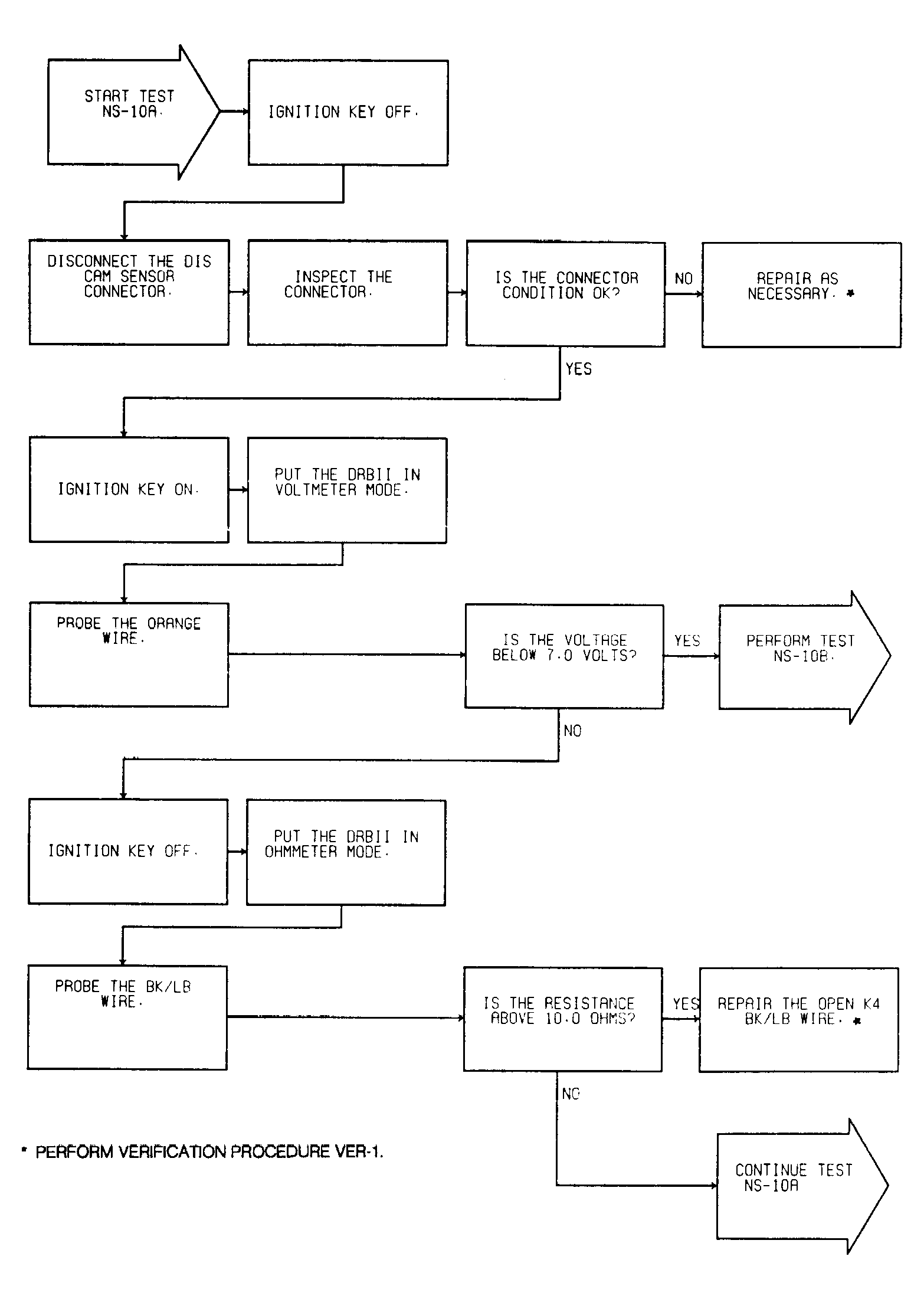

Fig 2: Test NS-10A: Diagnostic Flow Chart (1 of 2)

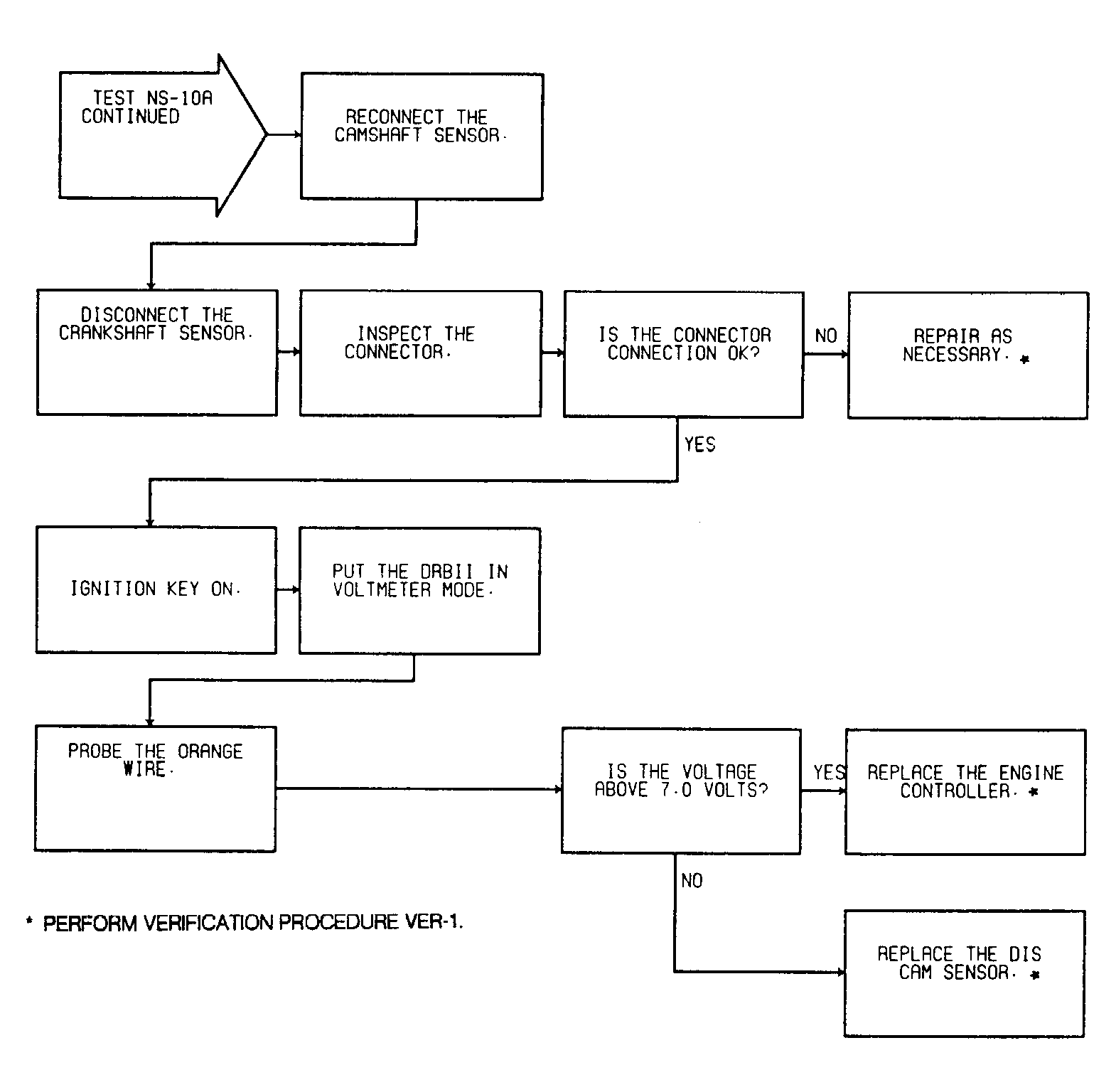

Fig 3: Test NS-10A: Diagnostic Flow Chart (2 of 2)
