Vehicle Maintenance Monitor (VMM)

Remove cluster assembly. Remove screws attaching VMM module to instrument cluster and disconnect electrical connector. Remove computer module. See Fig 1 . To install, reverse removal procedure.

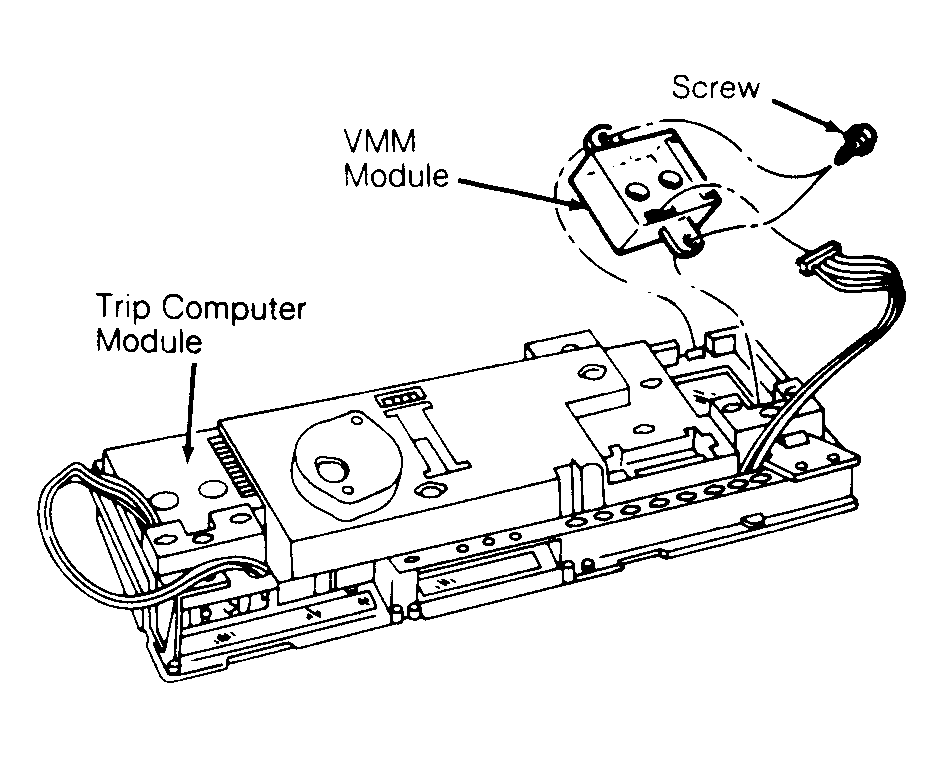

Fig 1: Locating Vehicle Maintenance Monitor (VMM) Module

Courtesy of CHRYSLER MOTORS.
