Instrument Cluster

  1. Disconnect negative battery cable. Remove 3 screws at top of instrument cluster bezel, then remove instrument cluster bezel. Remove 4 cluster retaining screws and remove cluster.
  2. Tilt cluster forward and disconnect electrical connectors. Remove instrument cluster. To install, reverse removal procedure. See Fig 1 and Fig 2 .
Fig 1: Removing Cluster Assembly Retaining Screws
G108910Courtesy of CHRYSLER MOTORS.

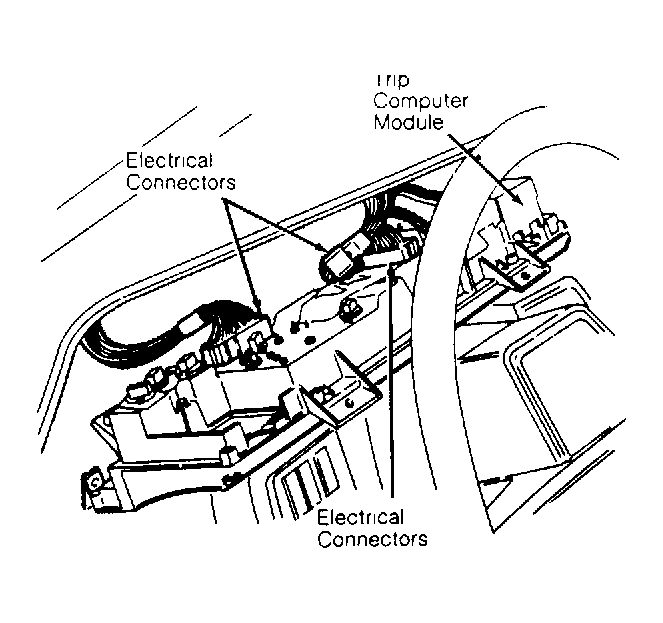

Fig 2: Disconnecting Electrical Connectors From Cluster
G108911Courtesy of CHRYSLER MOTORS.
