Disassembly, Inspection & Reassembly

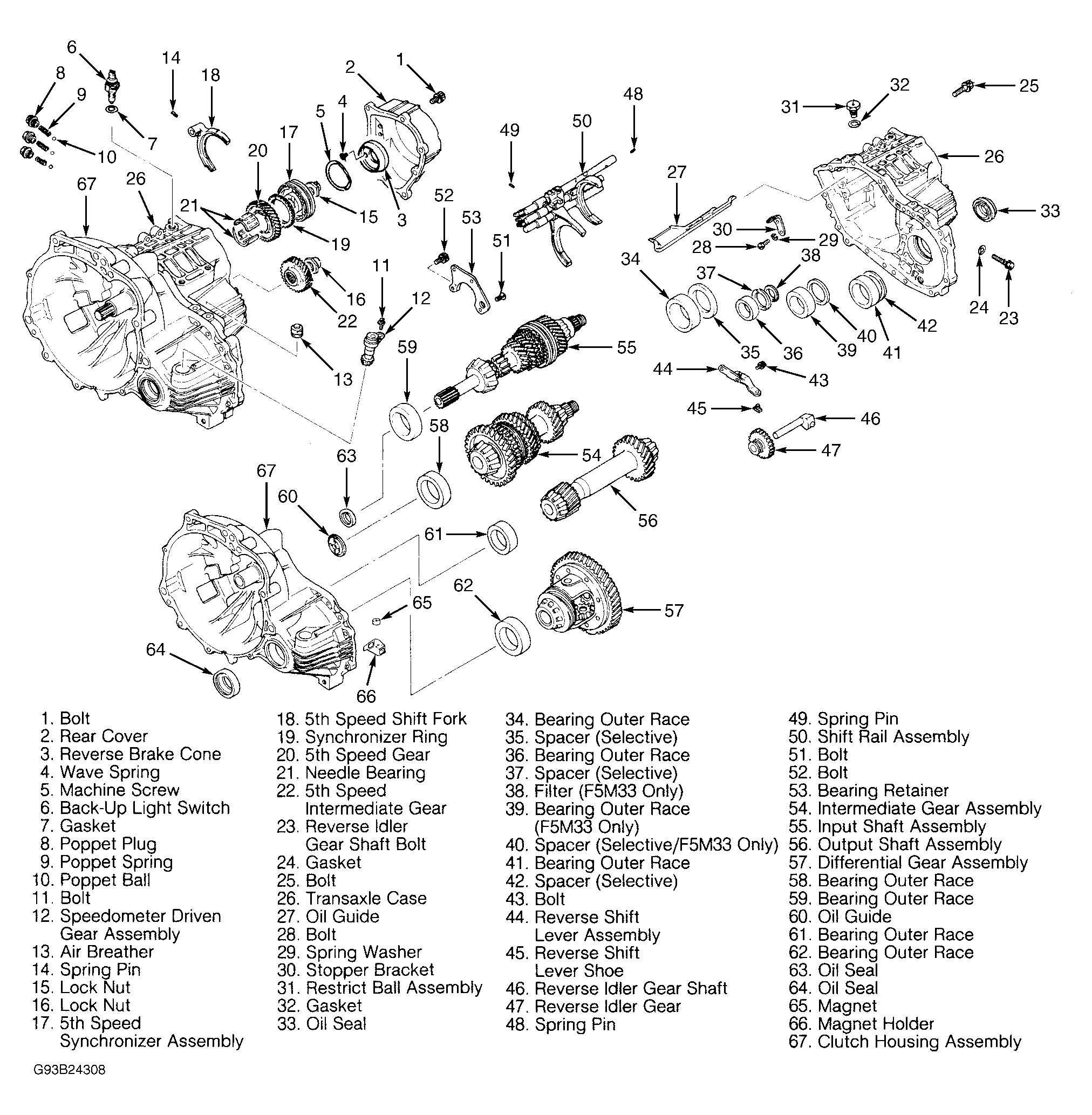

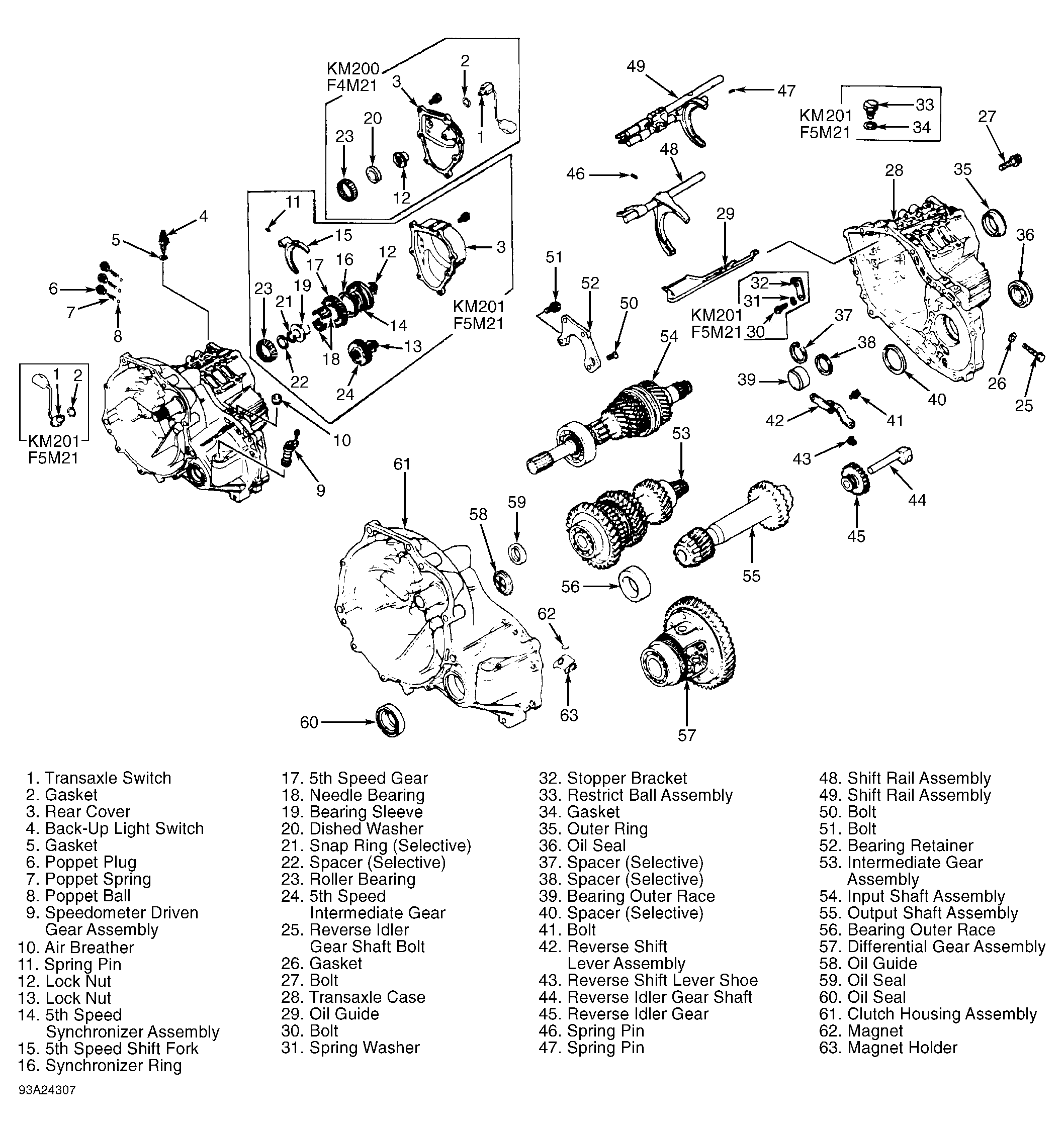

Press bearings from output shaft. DO NOT reuse bearings. Replace inner and outer bearing races as a set. Inspect output shaft for damage or wear. Press NEW bearings on output shaft. See Figure and Figure .
