Input Shaft (F5M22, F5M31 & F5M33): Disassembly

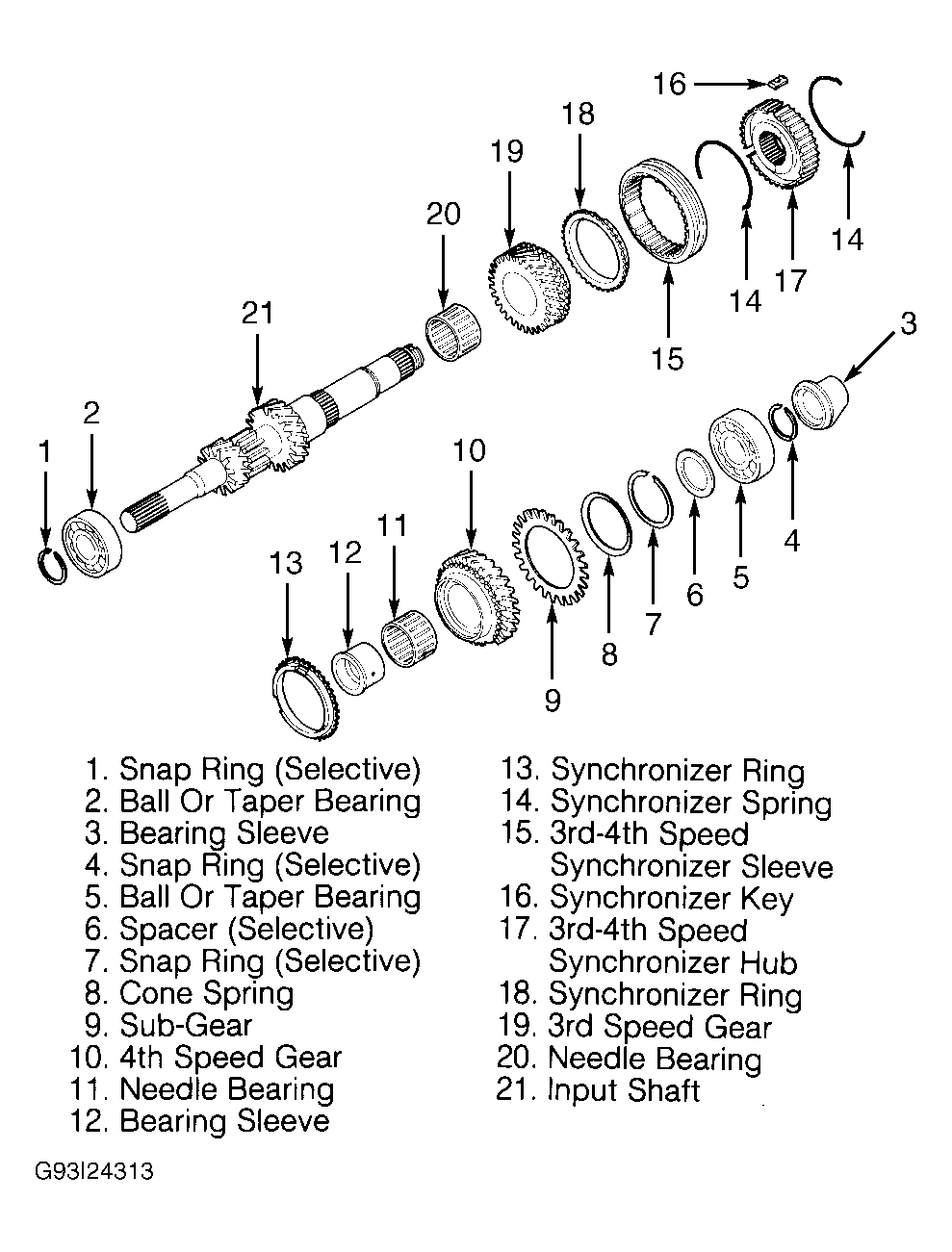

Remove snap ring. Press front bearing from input shaft. Press rear bearing and bearing sleeve from input shaft. Remove spacer, 4th gear and bearing. Press bearing sleeve, 3rd-4th synchronizer assembly and 3rd gear from input shaft. Remove needle bearing. See Figure .
