Clutch Housing: Reassembly

To reassemble, reverse disassembly procedure. Install needle bearings flush with clutch housing surface using a 14 mm socket and extension bar. Install new oil seal and spring pins. Install lock pins with slit perpendicular to center line of control shaft.

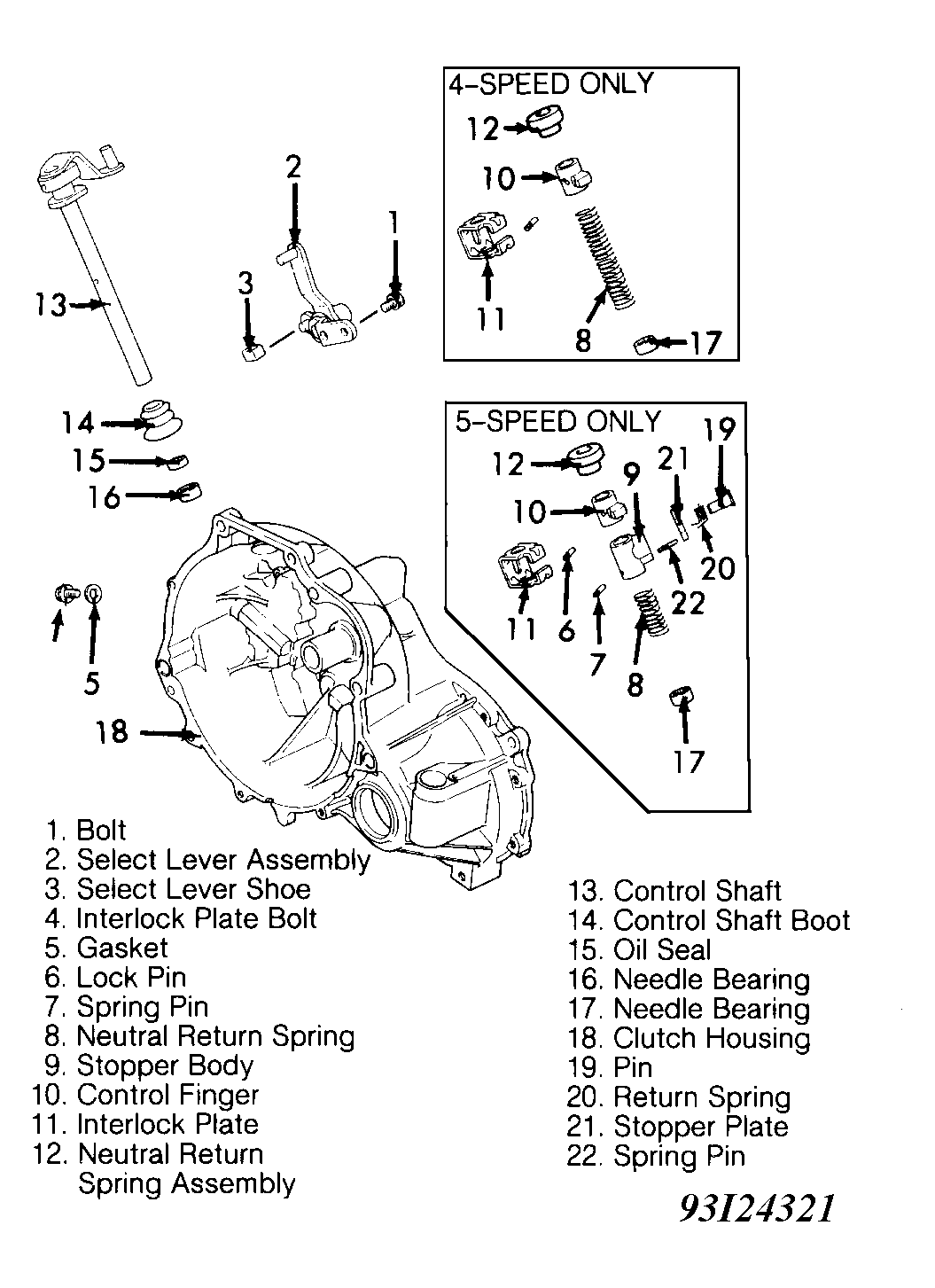

Fig 1: Exploded View Of Clutch Housing

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
