Rear Suspension Assembly (Colt Vista 4WD): Reassembly

1. Install torsion bar into outer arm. Ensure torsion bar is installed on proper side. Note identification mark ("R" or "L") on end of torsion bar.
2. Ensure arrow mark on torsion bar's is positioned toward inner side of body. Install torsion bar into crossmember and align outer arm's upper end position mark. See Fig 1.
3. Temporarily tighten outer arm bushing retaining bolts at end of crossmember. Measure clearance from outer arm to crossmember bracket. See Fig 1. Clearance should be .20-.28" (5.0-7.1 mm).

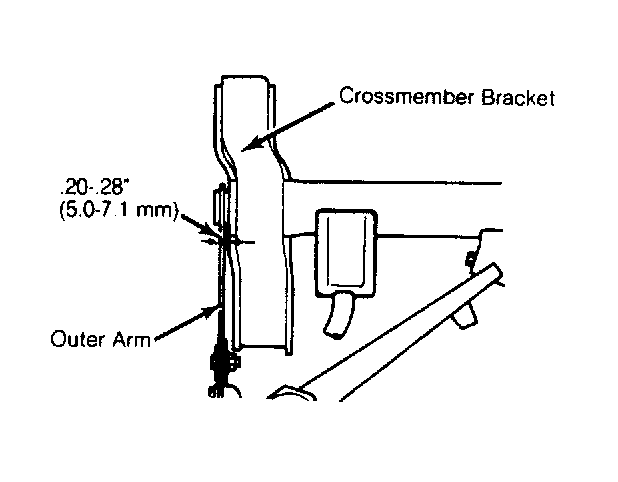

Fig 1: Checking Outer Arm & Bracket Clearance

Courtesy of CHRYSLER MOTORS.

CAUTION: Replace clip on inner end of drive axle whenever drive axle is removed.
