Colt Wagon

Colt Wagon 2WD uses a 3-link torsion axle rear suspension with coil springs, shock absorbers, suspension arms and lateral rod. See Fig 4. Rear suspension system on Colt Wagon 4WD is a 5-link, non-independent type with coil springs, shock absorbers and lateral rod. See Fig 5.

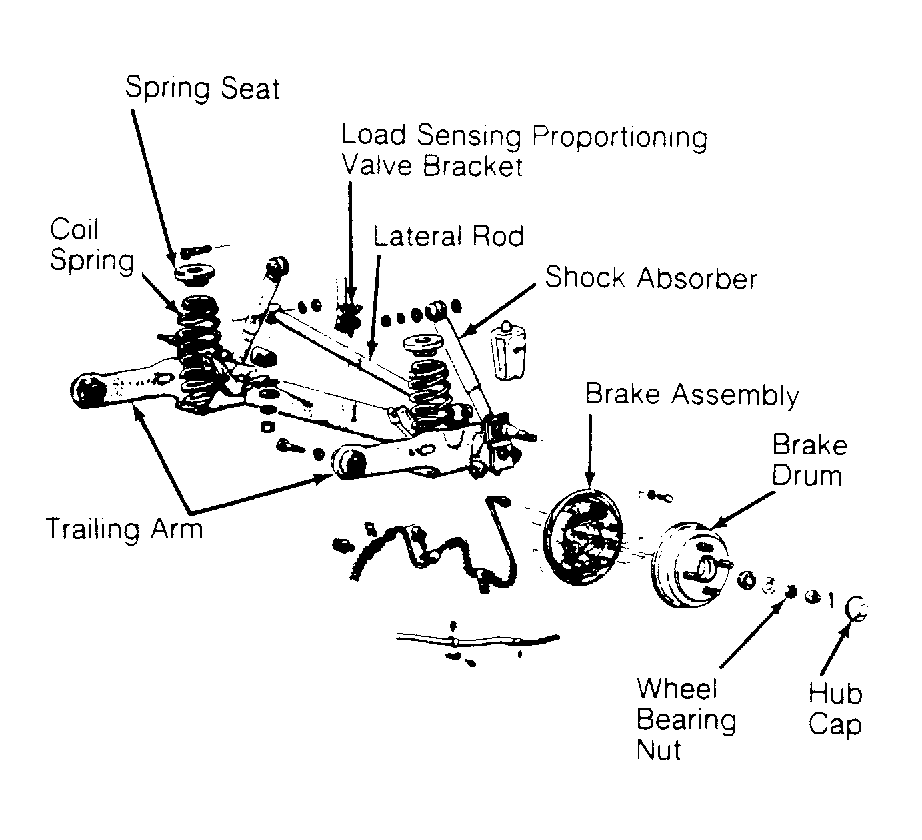

Fig 1: View of Typical Rear Suspension (Colt, Colt 200, Summit)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Exploded View of Rear Suspension (Colt Vista 2WD)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Exploded View of Rear Suspension (Colt Vista 4WD)

Courtesy of CHRYSLER MOTORS.

Fig 4: Exploded View of Rear Suspension (Colt Wagon 2WD)

Courtesy of CHRYSLER MOTORS.

Fig 5: Exploded View of Rear Suspension (Colt Wagon 4WD)

Courtesy of CHRYSLER MOTORS.
