Colt Vista 4WD: Removal

  1. Remove steering knuckle. See STEERING KNUCKLE R & I in this article. Secure steering knuckle in vise. Using Hub Remover/Installer (MB990998) and Puller (MB991056), separate hub from knuckle. See Fig 1.
    Fig 1: Removing Hub From Steering Knuckle
    G58427Courtesy of CHRYSLER MOTORS.
  2. Remove oil seal from hub. Remove drive shaft seal from steering knuckle. Remove snap ring from knuckle. See Fig 2
  3. Using press, Bearing Remover/Installer (C-4628) and Knuckle Bridge (MB991056), remove bearing from knuckle.

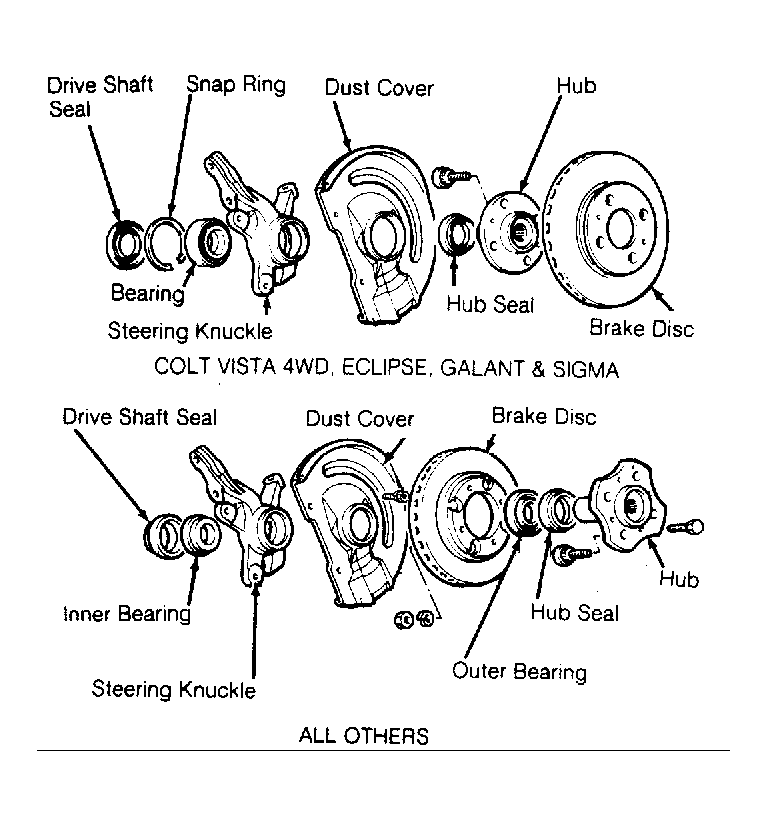

Fig 2: Exploded View of Steering Knuckle & Hub
G91E01921Courtesy of CHRYSLER MOTORS.
