Colt 1.5L, Colt Wagon, Colt 200 1.5L & Summit 1.5L: Installation

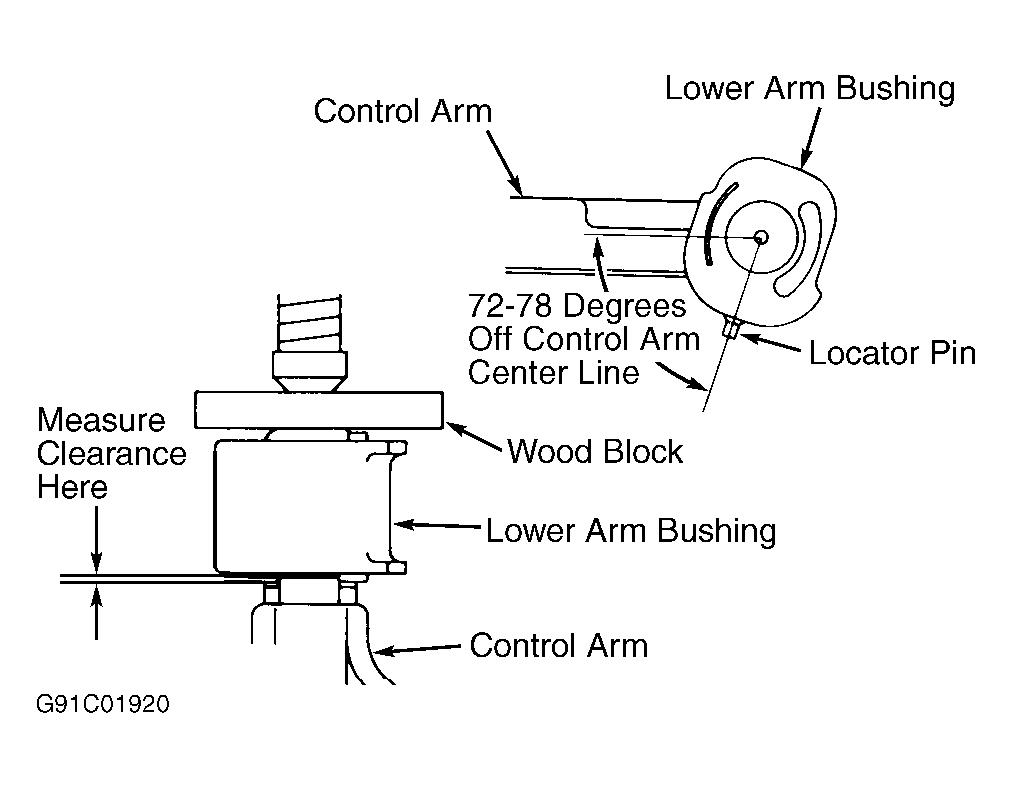

- Apply soapy water on the control arm shaft and replacement bushing. Install bushing on control arm shaft, with locator pin located within 72-78 degrees of control arm's center.
- Using press and wood block, press bushing on control arm until specified clearance exists between bushing and control arm. See BUSHING CLEARANCE SPECIFICATIONS table. See Fig 1.
BUSHING CLEARANCE SPECIFICATIONS
| Application | In. (mm) |
|---|---|
| Colt 1.5L, Colt 200 1.5L Summit | .04-.12 (1-3) |
| Colt Wagon | 0-.08 (0-2.0) |
