Installation (Ram-50)

  1. To install, reverse removal procedure. Apply Lubriplate to backing plate bosses, adjuster assembly threads and parking brake lever pin.
  2. Set adjustment assembly so brake shoes lightly contact brake drum. Depress brake pedal to center shoes and check pedal travel. Rotate brake drum to ensure free movement.
Fig 1: Exploded View of Rear Brake Assembly (Colt Vista)
G40619Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Exploded View of Rear Brake Assembly (Ram-50)
G50108Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

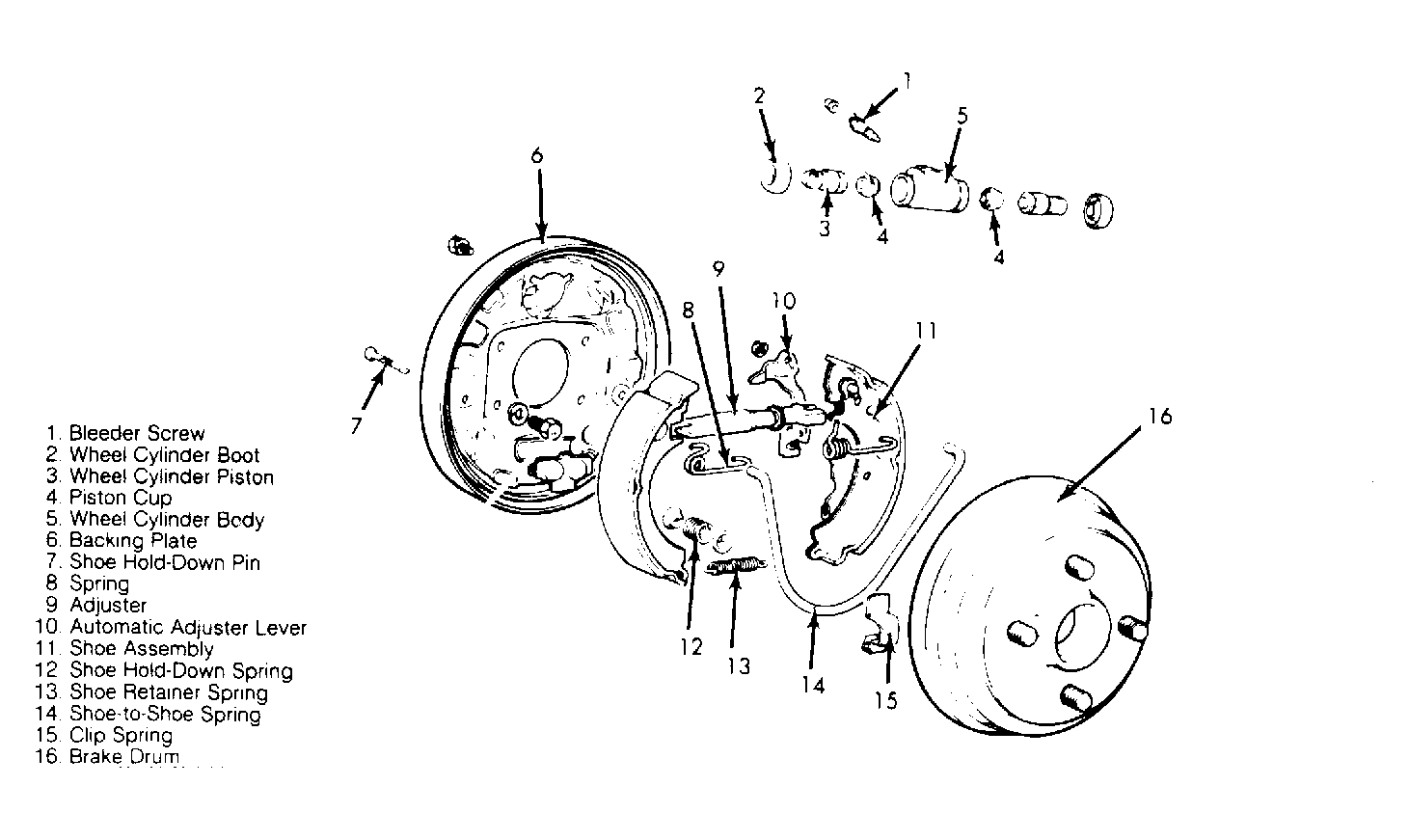

Fig 3: Exploded View of Rear Assembly (Colt, Colt 200, Summit)
G50660Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
