Instrument Cluster

Disconnect speedometer cable at transaxle end of cable.
Remove lower panel assembly, knee protector, meter bezel, and instrument cluster (combination meter). See Fig 1 .

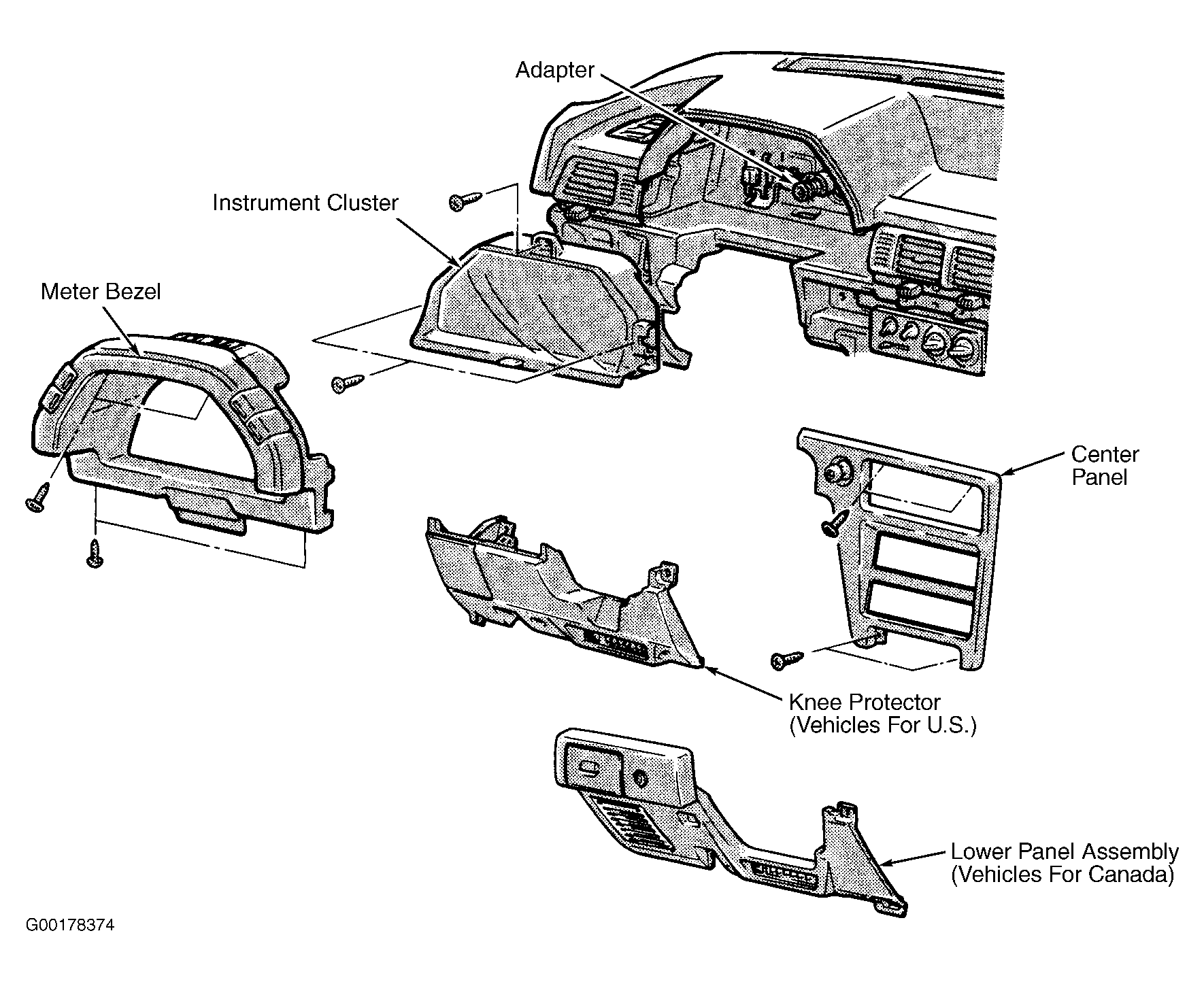

Fig 1: Exploded View Of Intrument Cluster & Trim Panels
Courtesy of DAIMLERCHRYSLER CORPORATION
Pull instrument cluster away from dash. Disconnect speedometer cable adapter by turning the adapter to the left or right. Remove adapter. See Fig 2 .

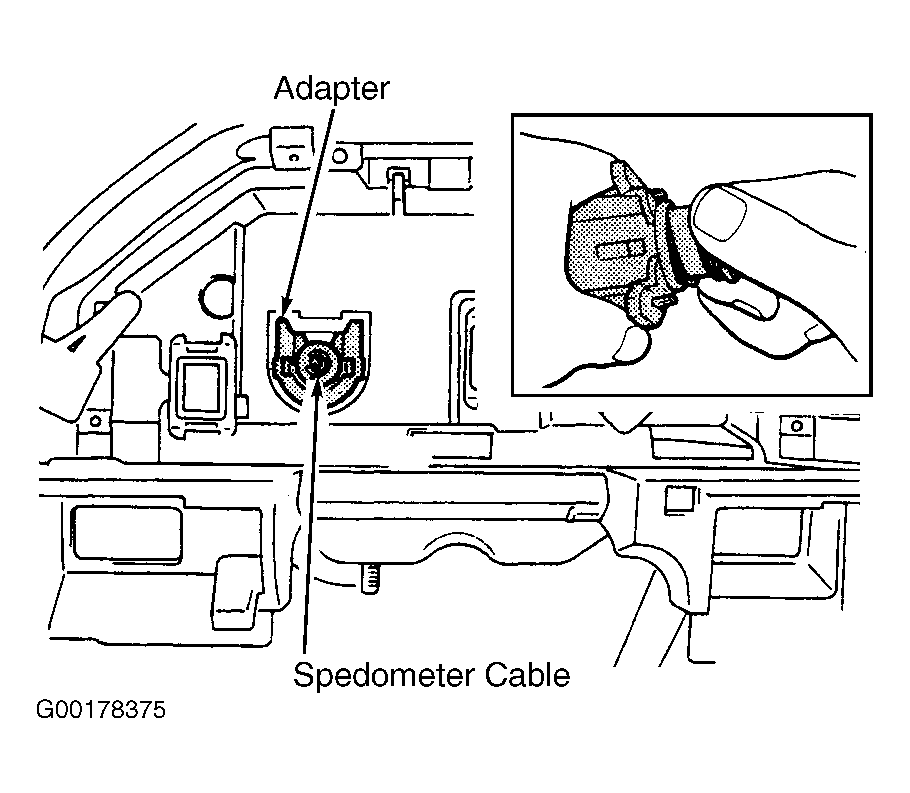

Fig 2: Removing Speedometer Cable Adapter
Courtesy of DAIMLERCHRYSLER CORPORATION

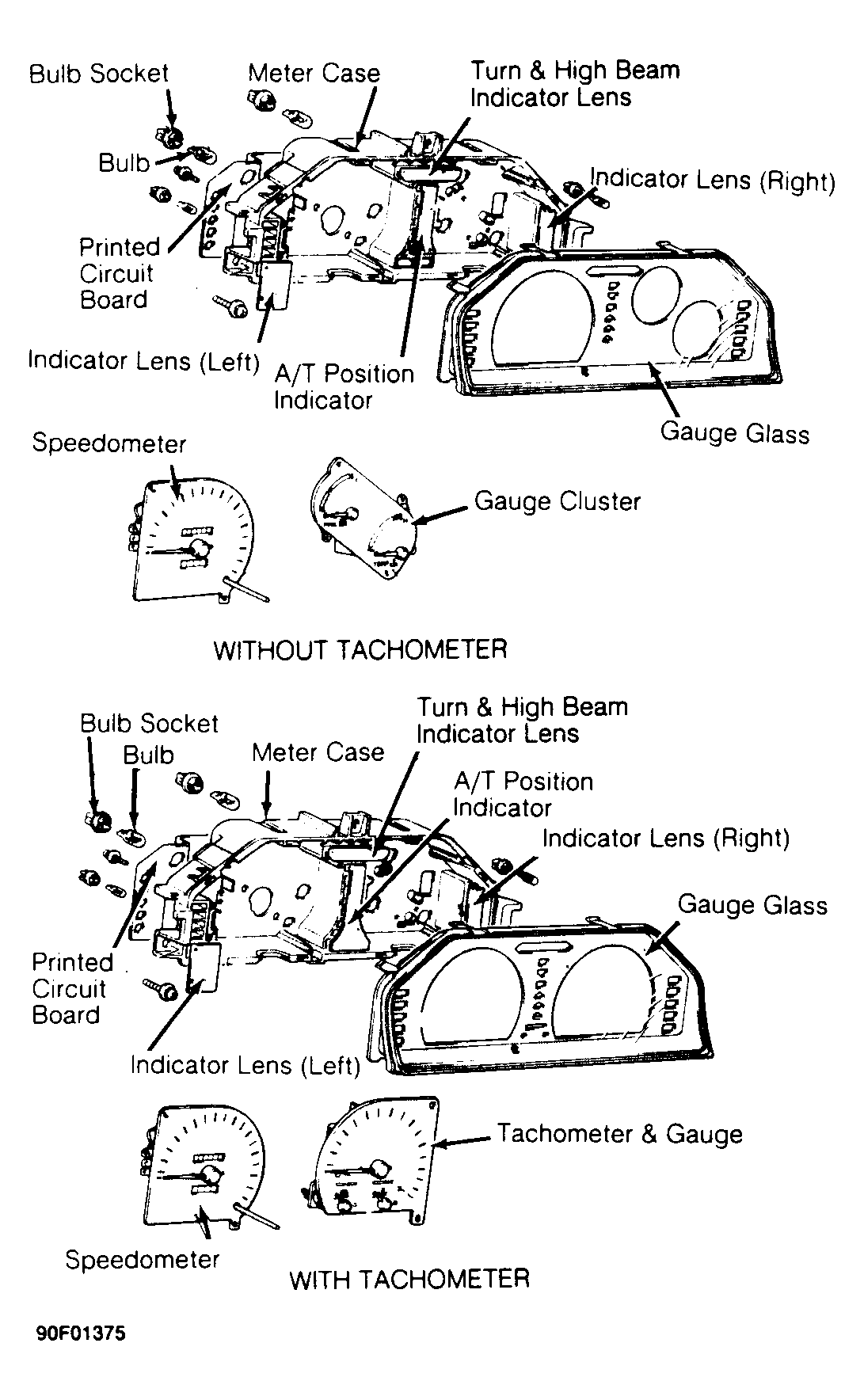

Fig 3: Exploded View Of Instrument Cluster (Colt, Colt 200 & Summit)

Courtesy of CHRYSLER MOTORS
