Removal & Installation

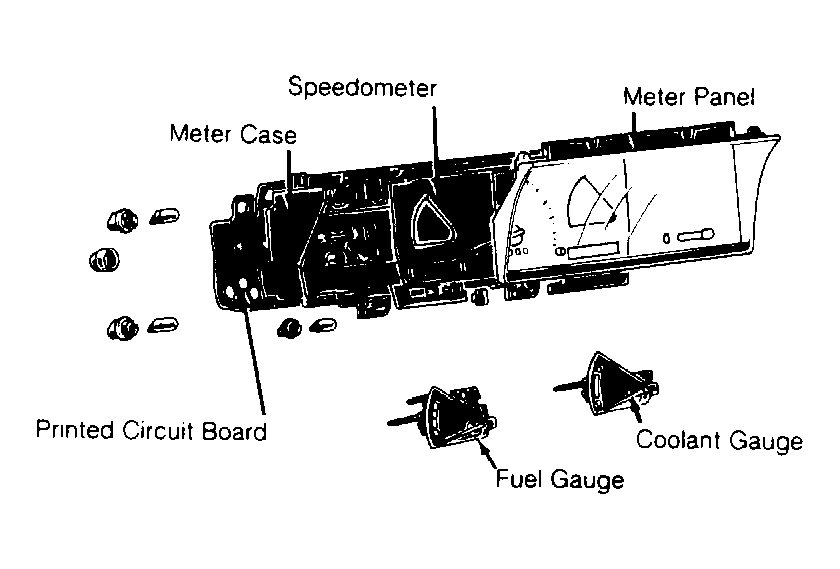

Remove cluster hood mounting screws and claws. Remove cluster hood from instrument panel. Remove instrument cluster mounting screws. Pull instrument cluster slightly toward rear of vehicle and disconnect electrical connectors and speedometer cable. Remove instrument cluster. See Fig 1 . To install, reverse removal procedure.
