Fitting Pistons & Rings
Properly position rings prior to installation. See
Fig 1
.

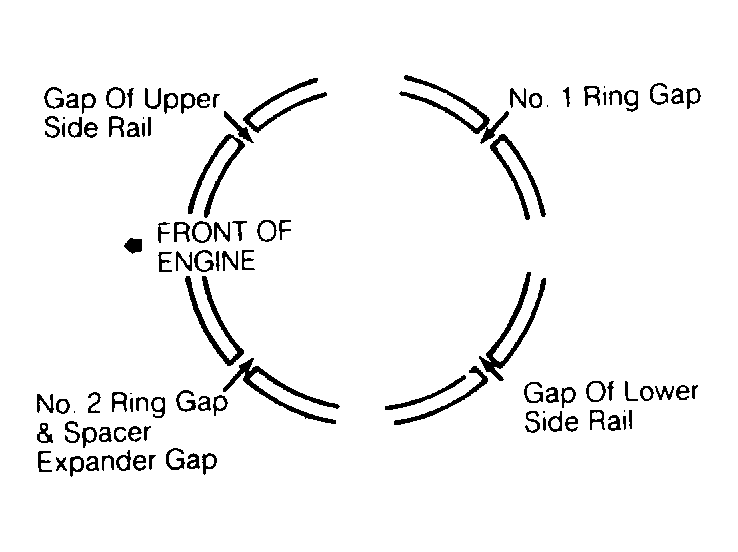

Fig 1: Positioning Piston Ring Gap
Courtesy of CHRYSLER MOTORS.
