Removal & Installation (1.6L)

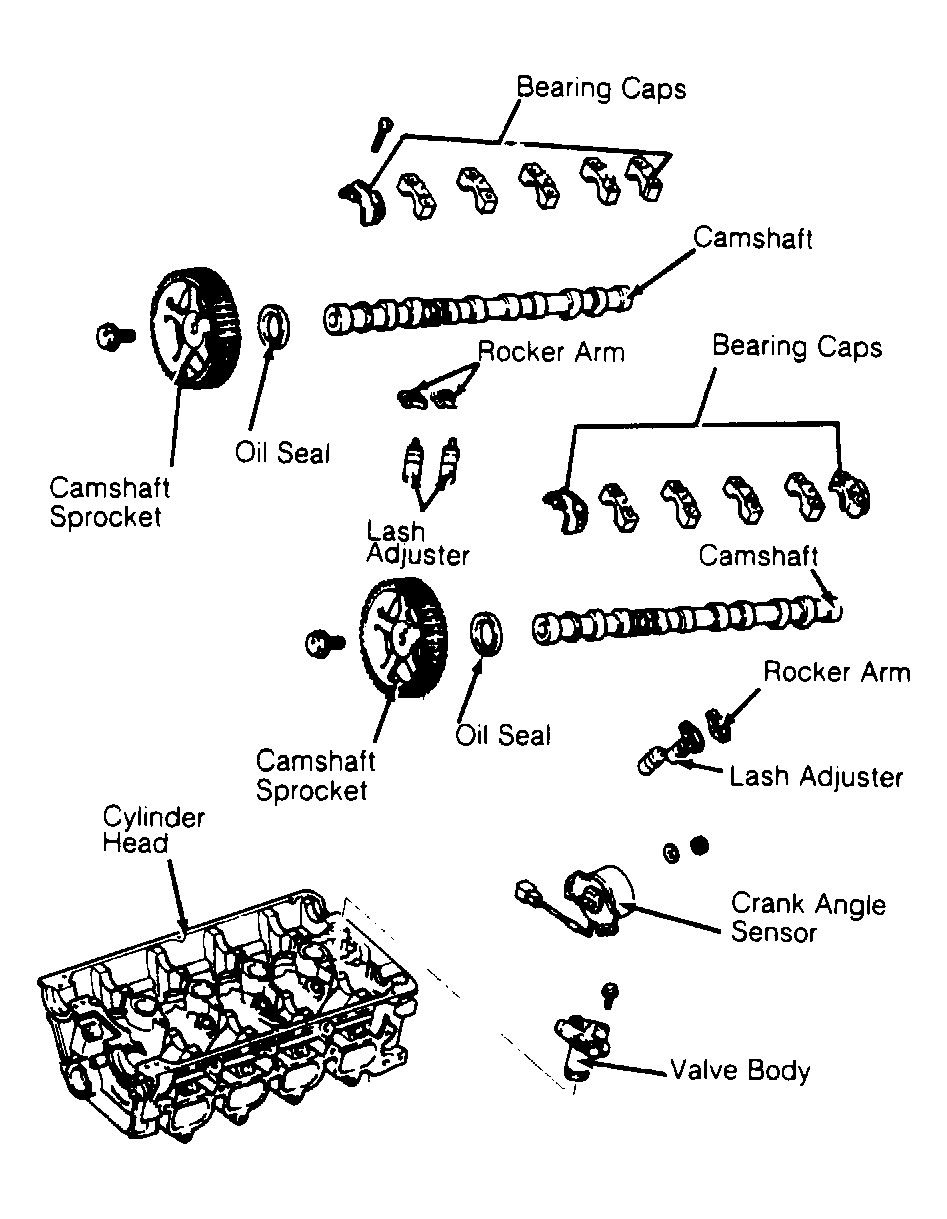

Remove camshaft. See CAMSHAFT  in this article. Remove rocker arm and lash adjuster. See Figure. To install, reverse removal procedure.
