Installation (1.6L)

To install, reverse removal procedure using new gaskets, fuel injector grommets and "O" rings. Adjust all control cables and fill cooling system.

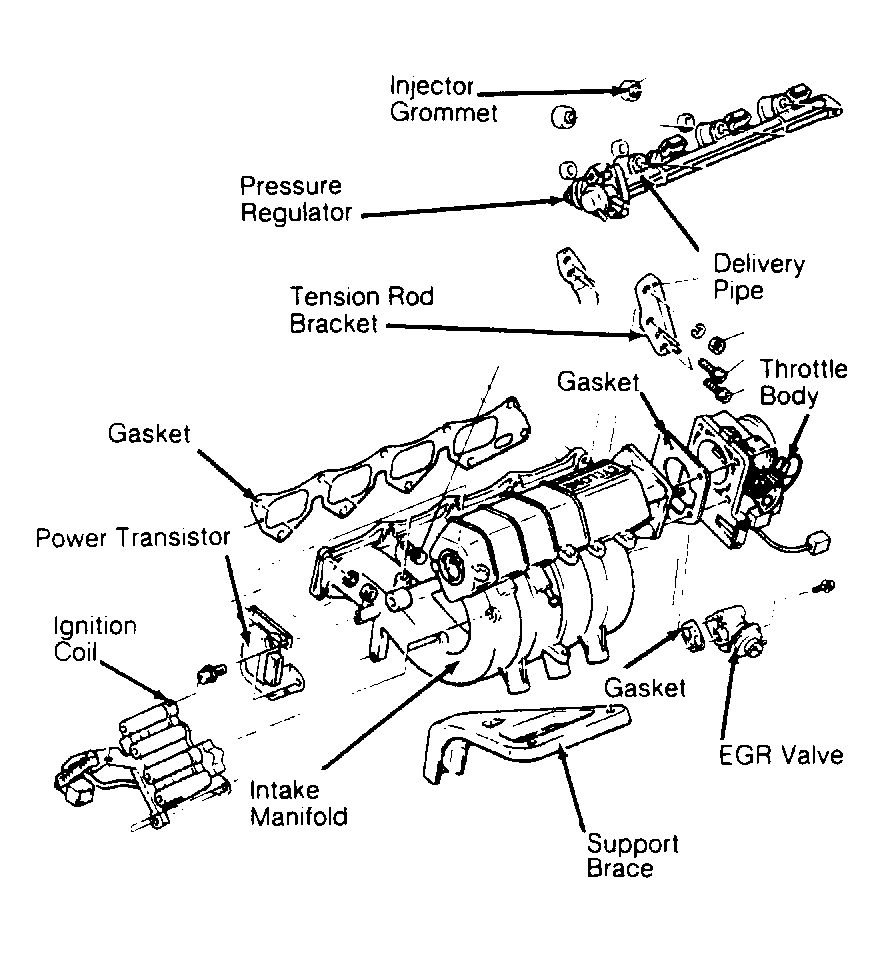

Fig 1: Exploded View of 1.6L Intake Manifold
G90B08841Courtesy of CHRYSLER MOTORS.
