Installation (1.5L)

Install cylinder head using new gasket with identification mark toward timing belt side and facing upward. See Fig 2. DO NOT apply sealant to head gasket. Tighten bolts to specification in proper sequence using 2 steps. See Fig 1.
Install timing belt and camshaft sprocket in original location. Ensure all timing marks are aligned. See TIMING BELT . To install remaining components, reverse removal procedure. Adjust all control cables.

Fig 1: Cylinder Head Bolt Removal & Installation Sequence (1.5L)

Courtesy of CHRYSLER MOTORS.

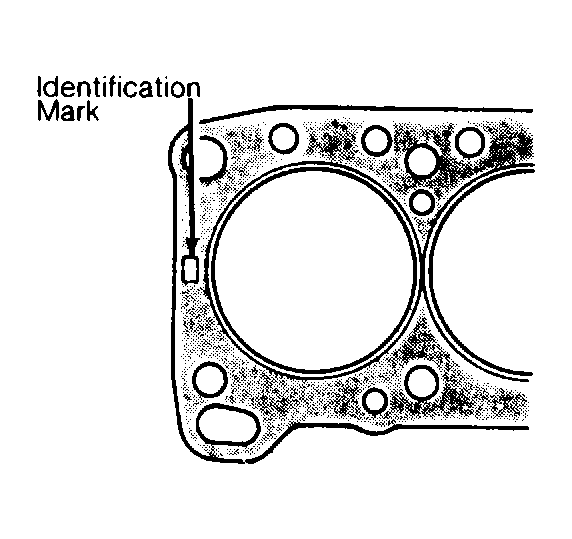

Fig 2: Cylinder Head Gasket Identification Mark Location

Courtesy of CHRYSLER MOTORS.

NOTE: On 1.6L, cylinder head can be removed with intake and exhaust manifolds installed on cylinder head. Fuel pressure must be released prior to disconnecting fuel lines.
