Engine Oiling System

The 1.5L engine uses a crankshaft driven oil pump. The 1.6L engine uses a belt-driven type oil pump mounted in the front cover.

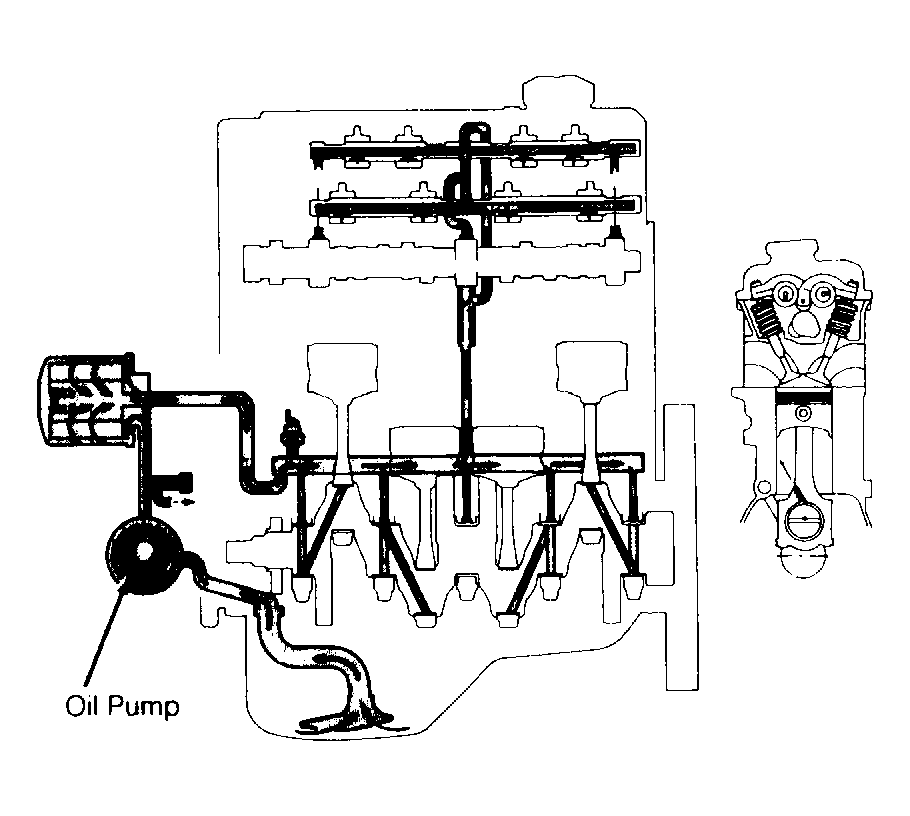

Fig 1: Engine Oiling System (1.5L)

Courtesy of CHRYSLER MOTORS.

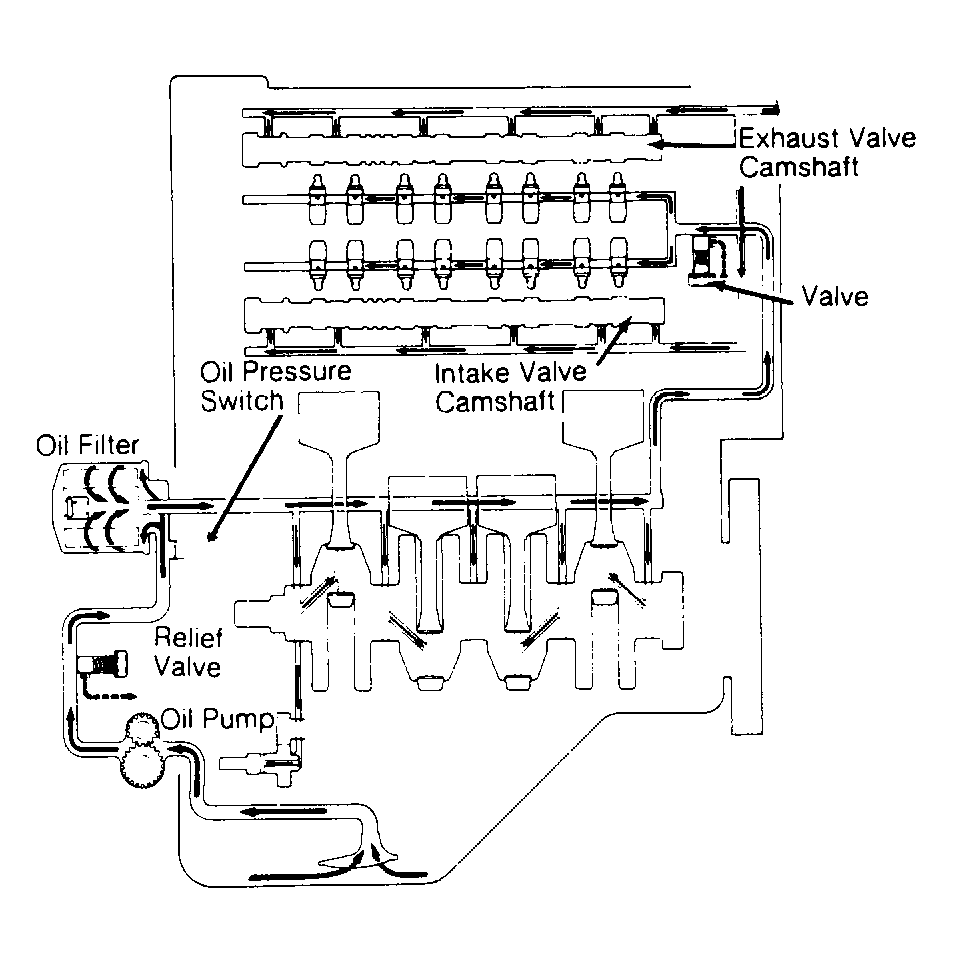

Fig 2: Engine Oiling System (1.6L)

Courtesy of CHRYSLER MOTORS.
