Vehicle Maintenance Monitor (VMM) Schematics

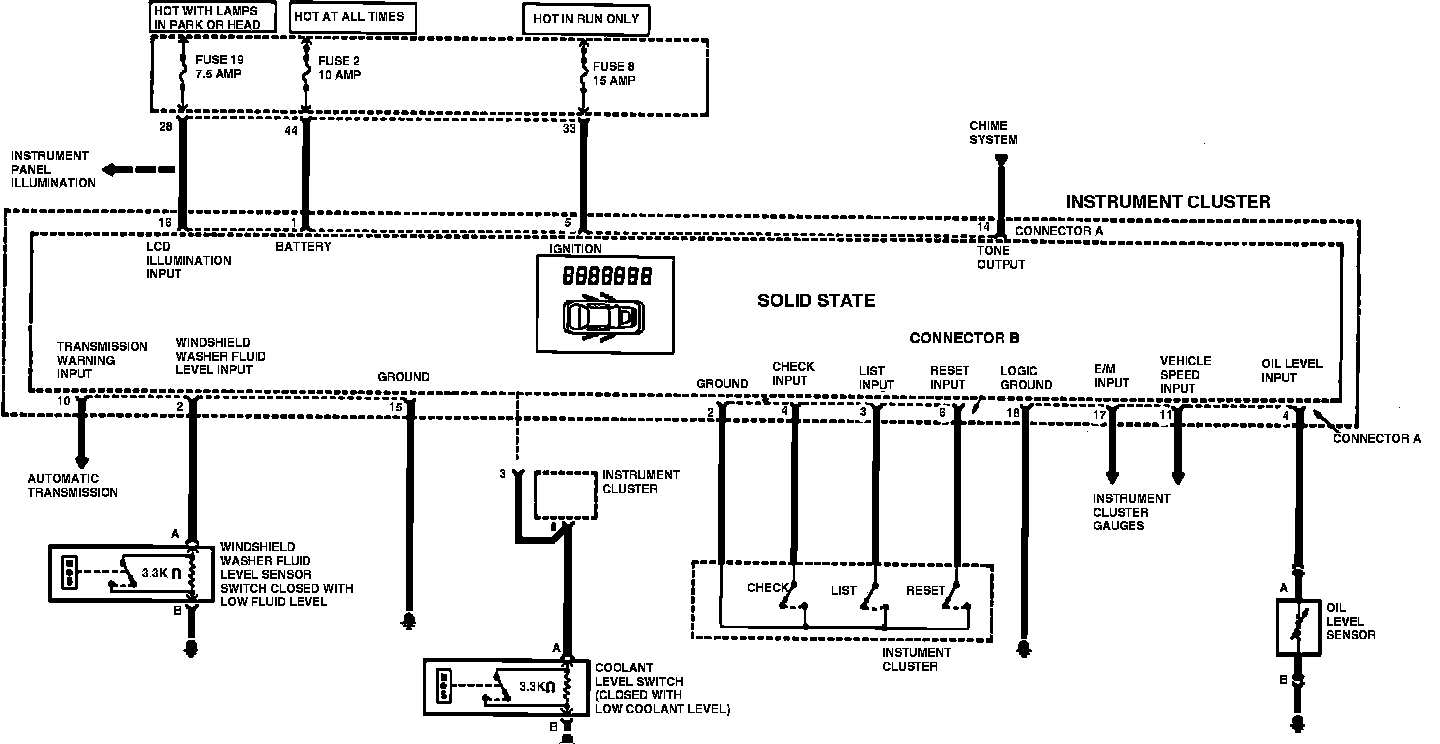

Vehicle Maintenance Monitor Schematic:



Vehicle Maintenance Monitor Schematic:
